XC7Z030 Series

Catalog

PSOC, ARM CORTEX-A9, 800MHZ, FCBGA-485

Part	Number of I/O	Peripherals	Core Processor	Package / Case	Package Length	Package Name	Package Width	RAM Size	Connectivity	Primary Attributes	Operating Temperature (Max)	Operating Temperature (Min)	Speed	Architecture

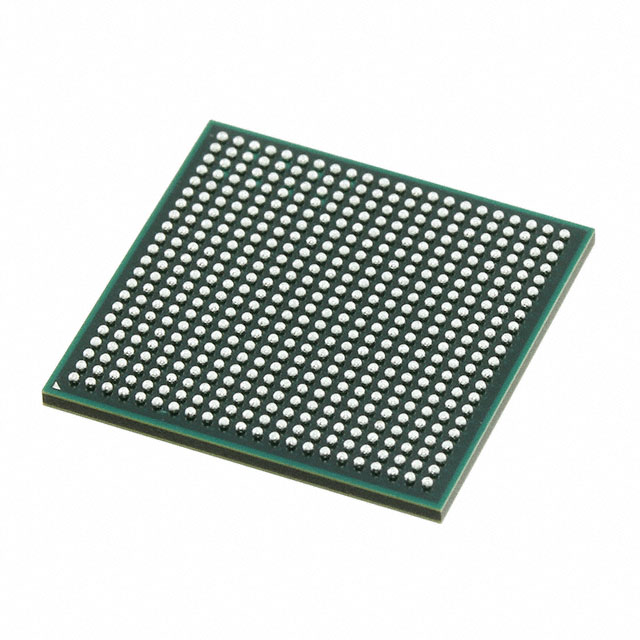

AMD / Xilinx XC7Z030-2SBG485I	130	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	484-FBGA FCBGA	19 mm	484-FCBGA	19 mm	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	125K Logic Cells Kintex™-7 FPGA	100 °C	-40 °C	800 MHz	FPGA MCU
AMD / Xilinx XC7Z030-2FF676I	130	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	676-BBGA FCBGA	27 mm	676-FCBGA	27 mm	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	125K Logic Cells Kintex™-7 FPGA	100 °C	-40 °C	800 MHz	FPGA MCU
AMD / Xilinx XC7Z030-1FBG676I	130	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	676-BBGA FCBGA	27 mm	676-FCBGA	27 mm	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	125K Logic Cells Kintex™-7 FPGA	100 °C	-40 °C	667 MHz	FPGA MCU

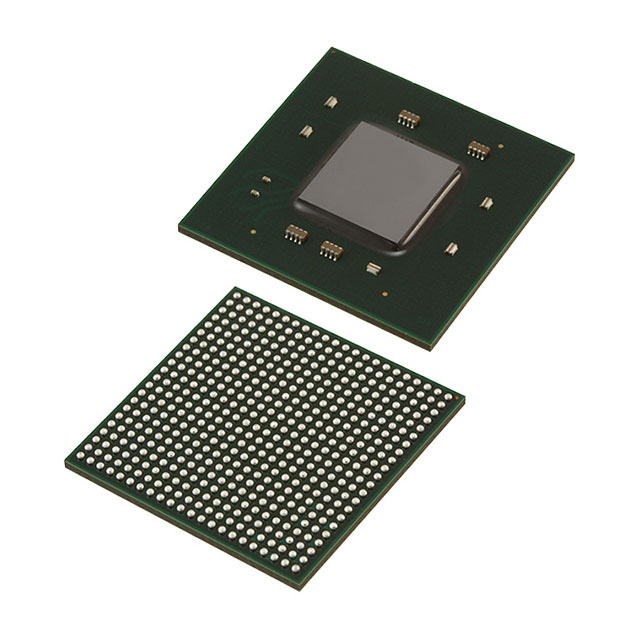

AMD / Xilinx XC7Z030-3FBG484E	130	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	484-BBGA FCBGA	23 mm	484-FCBGA	23 mm	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	125K Logic Cells Kintex™-7 FPGA	100 °C	0 °C	1 GHz	FPGA MCU
AMD / Xilinx XC7Z030-L2FFG676I	130	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	676-BBGA FCBGA	27 mm	676-FCBGA	27 mm	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	125K Logic Cells Kintex™-7 FPGA	100 °C	-40 °C	800 MHz	FPGA MCU
AMD / Xilinx XC7Z030-2FBG484E		DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	484-BBGA FCBGA	23 mm	484-FCBGA	23 mm	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	125K Logic Cells Kintex™-7 FPGA	100 °C	0 °C	800 MHz	FPGA MCU
AMD / Xilinx XC7Z030-2FB484I	130	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	484-BBGA FCBGA	23 mm	484-FCBGA	23 mm	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	125K Logic Cells Kintex™-7 FPGA	100 °C	-40 °C	800 MHz	FPGA MCU
AMD / Xilinx XC7Z030-2FFG676I	130	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	676-BBGA FCBGA	27 mm	676-FCBGA	27 mm	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	125K Logic Cells Kintex™-7 FPGA	100 °C	-40 °C	800 MHz	FPGA MCU
AMD / Xilinx XC7Z030-3FBG676E	130	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	676-BBGA FCBGA	27 mm	676-FCBGA	27 mm	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	125K Logic Cells Kintex™-7 FPGA	100 °C	0 °C	1 GHz	FPGA MCU
AMD / Xilinx XC7Z030-2FFG676E	130	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	676-BBGA FCBGA	27 mm	676-FCBGA	27 mm	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	125K Logic Cells Kintex™-7 FPGA	100 °C	0 °C	800 MHz	FPGA MCU
