VJ23 Series

Catalog

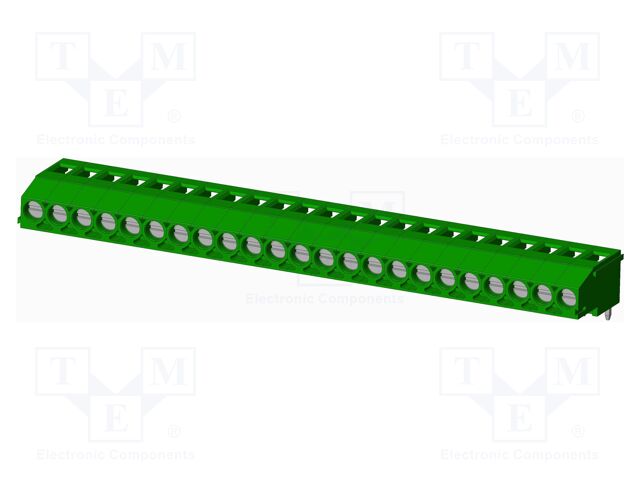

TERM BLK 23POS TOP ENTRY 5MM PCB

Part	Clamp Material	Clamp Plating	Operating Temperature (Min)	Operating Temperature (Max)	Screw Plating	Screw Material	Housing Material	Torque - Screw	Screw Thread	Voltage	Current	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Mating Orientation	Wire Termination	Number of Levels	Color	Features	Positions Per Level	Pitch	Mounting Type
McGill Microwave Systems VJ2301530000G	Brass	Nickel Plated	-40 °C	115 °C	Zinc Plated	Steel	Thermoplastic	0.4 Nm	M3	300 V	20 A	12 AWG	30 AWG	Vertical with Board	Rising Cage Clamp Screw	1	Green	Interlocking (Side)	23	0.197 in	Through Hole
McGill Microwave Systems VJ2321520000G	Brass	Nickel Plated	-40 °C	115 °C	Zinc Plated	Steel	Thermoplastic	0.4 Nm	M3	300 V	20 A	12 AWG	30 AWG	Horizontal with Board	Rising Cage Clamp Screw	1	Green	Interlocking (Side)	23	5.08 mm	Through Hole
McGill Microwave Systems VJ2321530000G	Brass	Nickel Plated	-40 °C	115 °C	Zinc Plated	Steel	Thermoplastic	0.4 Nm	M3	300 V	20 A	12 AWG	30 AWG	Vertical with Board	Rising Cage Clamp Screw	1	Green	Interlocking (Side)	23	5.08 mm	Through Hole
McGill Microwave Systems VJ2321550000G	Brass	Nickel Plated	-40 °C	115 °C	Zinc Plated	Steel	Thermoplastic	0.4 Nm	M3	300 V	20 A	12 AWG	30 AWG	Horizontal with Board	Rising Cage Clamp Screw	1	Green	Interlocking (Side)	23	5.08 mm	Through Hole
