TM3 Series

Catalog

TANTALUM CAPACITORS - SOLID SMD

Part	Type	Tolerance	Package / Case	Manufacturer Size Code	Voltage - Rated	Features	Operating Temperature (Max)	Operating Temperature (Min)	Height - Seated (Max)	Capacitance	Size / Dimension Length	Size / Dimension Width	ESR (Equivalent Series Resistance)	Mounting Type	Package Diameter	Package Name

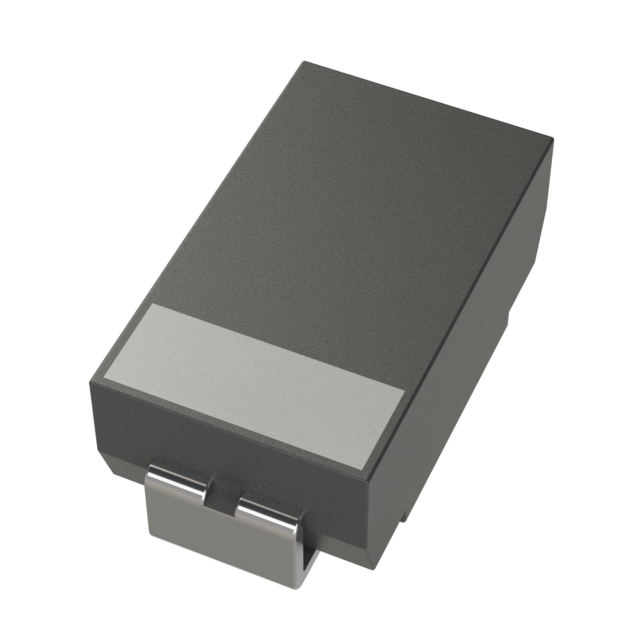

Vishay Dale TM3D107M010HBA	Molded	20 %	2917 (7343 Metric)	D	10 V	High Reliability	125 °C	-55 °C	0.122 in	100 µF	0.287 in	0.169 in	600 mOhm	Surface Mount
Vishay Dale TM3E227M010HBA	Molded	20 %	2917 (7343 Metric)	E	10 V	High Reliability	125 °C	-55 °C	0.169 in	220 µF	0.287 in	0.169 in	500 mOhm	Surface Mount
Vishay Dale TM3B476K6R3HBA	Molded	10 %	1411 (3528 Metric)	B	6.3 V	High Reliability	125 °C	-55 °C	0.083 in	47 µF	0.138 in	0.11 in	1.9 Ohm	Surface Mount	3528 mm	1411
Vishay Dale TM3E227K010HBA	Molded	10 %	2917 (7343 Metric)	E	10 V	High Reliability	125 °C	-55 °C	0.169 in	220 µF	0.287 in	0.169 in	500 mOhm	Surface Mount
Vishay Dale TM3C226M016HBA	Molded	20 %	2312 (6032 Metric)	C	16 V	High Reliability	125 °C	-55 °C	0.11 in	22 µF	0.236 in	0.126 in	1.4 Ohm	Surface Mount
Vishay Dale TM3D226K016HBA	Molded	10 %	2917 (7343 Metric)	D	16 V	High Reliability	125 °C	-55 °C	0.122 in	22 µF	0.287 in	0.169 in	800 mOhm	Surface Mount
Vishay Dale TM3D107M6R3HBA	Molded	20 %	2917 (7343 Metric)	D	6.3 V	High Reliability	125 °C	-55 °C	0.122 in	100 µF	0.287 in	0.169 in	140 mOhm	Surface Mount
