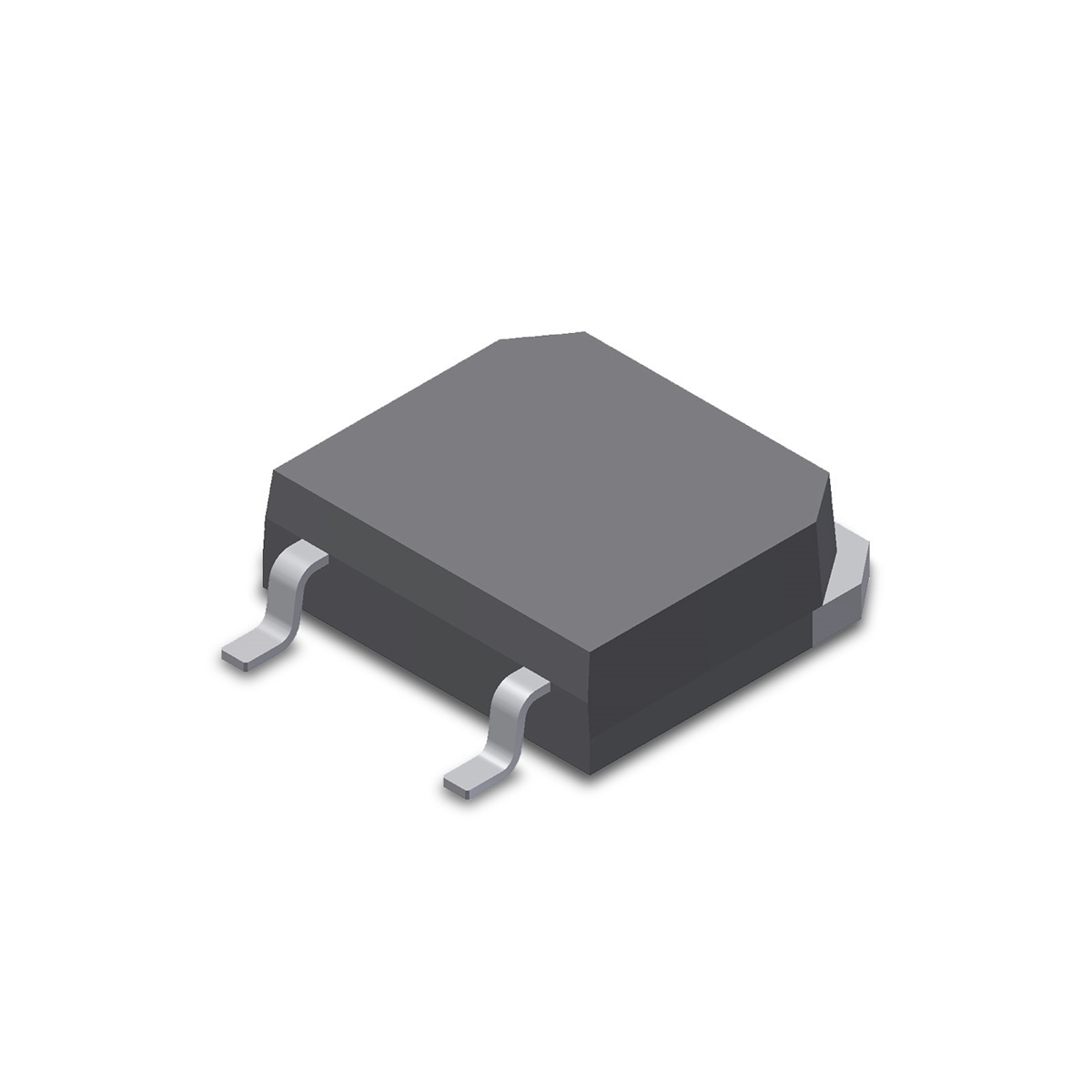

IXYT40N120A4HV Series
Manufacturer: LITTELFUSE
Beta
⌘K
DISCRETE IGBT XPT GEN 4 1200V TO268HV/ TUBE
| Part | Td (off) @ 25°C | Td (on) @ 25°C | Operating Temperature (Min) | Operating Temperature (Max) | Power - Max | Mounting Type | Gate Charge | Test Condition Resistance | Test Condition Voltage | Test Condition Current | Test Condition Voltage (Secondary) | Vce(on) (Max) | Package / Case | Current - Collector Pulsed (Icm) | Switching Energy (Off) | Switching Energy (On) | Package Name | Input Type | IGBT Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 204 ns | 22 ns | -55 °C | 175 °C | 600 W | Surface Mount | 90 nC | 5 Ohm | 600 V | 32 A | 15 V | 1.8 V | D3PAK (2 Leads + Tab) TO-268-3 TO-268AA | 275 A | 3.75 mJ | 2.3 mJ | TO-268HV (IXYT) | Standard | PT | 140 A | 1200 V |
