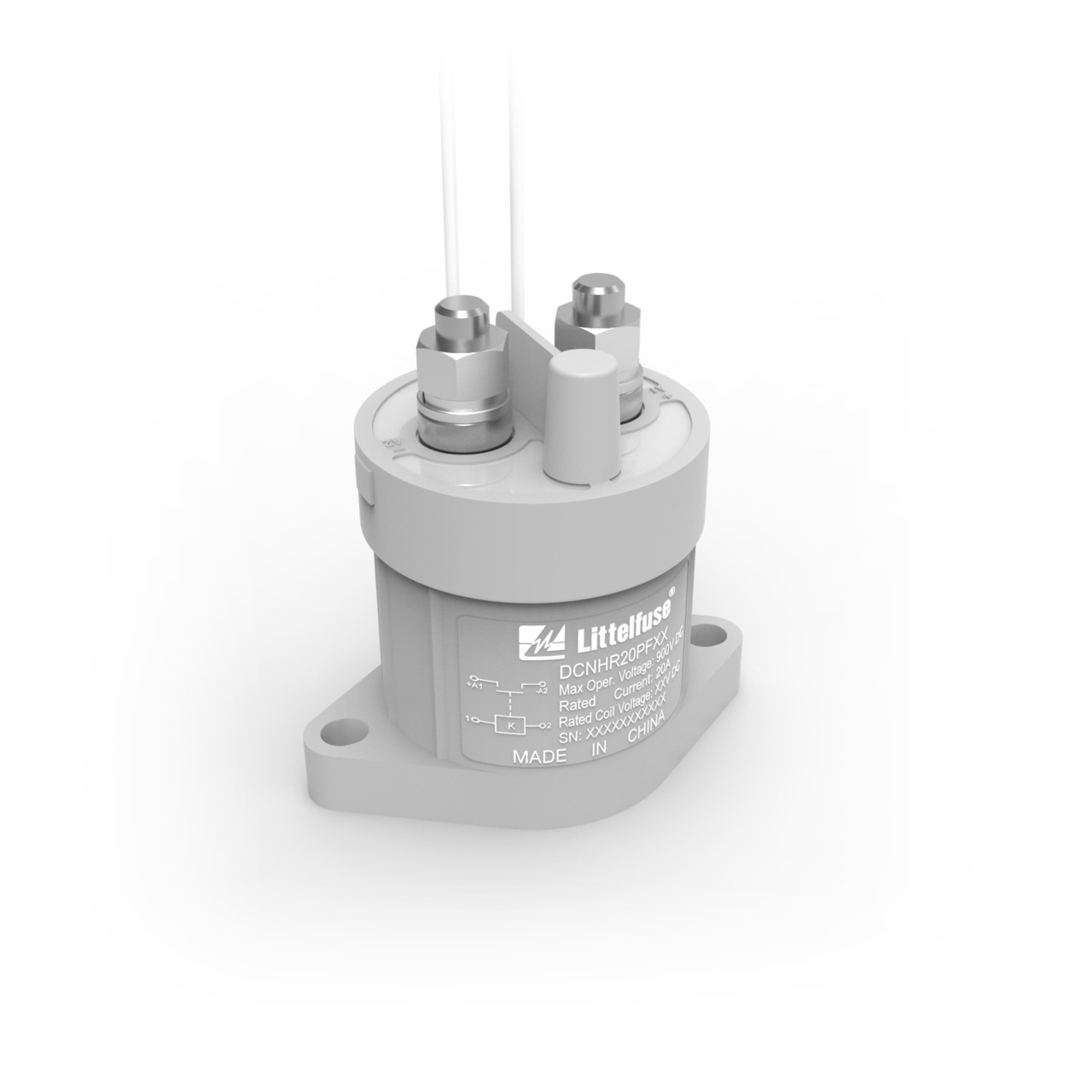

DCNHR20PF24 Series

DCNHR 20A 450V P 24Vcoil

Catalog

DCNHR 20A 450V P 24Vcoil

Part	Must Release Voltage	Switching Voltage DC (Max)	Coil Voltage	Mounting Type	Must Operate Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Contact Rating (Current)	Form A Count	Contact Form	Termination Style
LITTELFUSE DCNHR20PF24	2 VDC	900 VDC	24 VDC	Chassis Mount	18 VDC	-40 °C	85 °C	20 A	1	SPST-NO	Stud Wire Leads

Catalog

DCNHR 20A 450V P 24Vcoil

Description

The DCNHR Series 900V Max High-Voltage DC Contactor Relay is normally open with a low-power coil in a corrosion-resistant housing for use in harsh vehicle environments. The contactor's permanent magnet helps to achieve a high-voltage DC cutoff. This DCNHR Series contactor relay (DCNHR20PF24) is for 20A contact switching and features polarized main contacts and a 24V coil.
