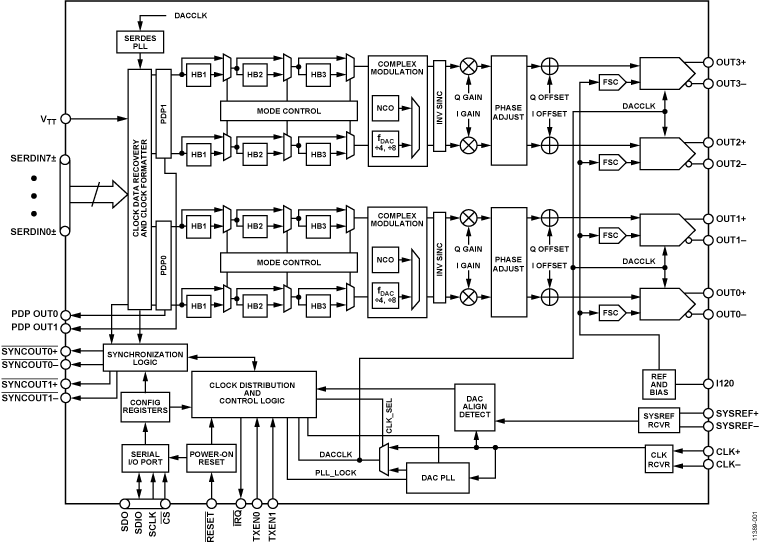

AD9154 Series

Catalog

QUAD, 16-BIT, 2.4 GSPS, TXDAC+®DIGITAL-TO-ANALOG CONVERTER

Part	Reference Type	DNL (LSB) Tolerance	INL (LSB) Tolerance	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Data Interface	Architecture	Package / Case	Number of D/A Converters	Mounting Type	Package Width	Package Name	Package Length	Number of Bits	Differential Output	Operating Temperature (Min)	Operating Temperature (Max)	Output Type
Analog Devices Inc./Maxim Integrated AD9154BCPZ	Internal	4.3 LSB	8.2 LSB	1.14 V	1.26 V	3.13 V	3.47 V	JESD204B	Quad-Switch	88-VFQFN Exposed Pad CSP	4 count	Surface Mount	12 mm	88-LFCSP-VQ	12 mm	16 bits	Yes	-40 °C	85 °C	Current - Unbuffered
Analog Devices Inc./Maxim Integrated AD9154BCPZRL	Internal	4.3 LSB	8.2 LSB	1.14 V	1.26 V	3.13 V	3.47 V	JESD204B	Quad-Switch	88-VFQFN Exposed Pad CSP	4 count	Surface Mount	12 mm	88-LFCSP-VQ	12 mm	16 bits	Yes	-40 °C	85 °C	Current - Unbuffered
Analog Devices Inc./Maxim Integrated AD9154BCPAZ	Internal	4.3 LSB	8.2 LSB	1.14 V	1.26 V	3.13 V	3.47 V	JESD204B	Quad-Switch	88-VFQFN Exposed Pad CSP	4 count	Surface Mount	11.75 mm	88-LFCSP-VQ	12 mm	16 bits	Yes	-40 °C	85 °C	Current - Unbuffered
Analog Devices Inc./Maxim Integrated AD9154BCPAZRL	Internal	4.3 LSB	8.2 LSB	1.14 V	1.26 V	3.13 V	3.47 V	JESD204B	Quad-Switch	88-VFQFN Exposed Pad CSP	4 count	Surface Mount	11.75 mm	88-LFCSP-VQ	12 mm	16 bits	Yes	-40 °C	85 °C	Current - Unbuffered
