TC-240 Series

Catalog

N-MALE (PLUG) CRIMP CONNECTOR (S

Part	Center Contact Plating	Body Finish	Body Material	Voltage Rating	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Mounting Type	Connector Style	Shield Termination	Contact Termination	Impedance	Center Contact Material	Cable Group	Frequency - Max	Connector Type	Number of Ports	Housing Color	Insertion Loss	Ingress Protection Description	Ingress Protection IP Rating	Mounting Feature	Mating Cycles	Includes	Includes Total Count
McGill Microwave Systems TC-240-NM-75	Gold	Nickel	Brass	500 V	Polytetrafluoroethylene (PTFE)	-40 °C	85 °C	Threaded	Free Hanging (In-Line)	N Type	Crimp	Solder	75 Ohm	Brass	LMR-240-75	2 GHz	Male Pin Plug	1	Silver
McGill Microwave Systems TC-240-NMC	Gold	Silver	Brass		Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Threaded	Free Hanging (In-Line)	N Type	Clamp	Solder	50 Ohm	Brass	LMR-240	11 GHz	Male Pin Plug	1	Silver
McGill Microwave Systems TC-240-FMH-75	Gold	Nickel	Brass		Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Threaded	Free Hanging (In-Line)	F Type	Crimp	Solder	75 Ohm	Beryllium Copper	LMR-240-75	2 GHz	Male Pin Plug	1	Silver
McGill Microwave Systems TC-240-716M-RA-D	Gold	White Bronze	Brass		Polytetrafluoroethylene (PTFE)	-40 °C	85 °C	Threaded	Free Hanging (In-Line) Right Angle	7/16 DIN	Crimp	Solder	50 Ohm	Brass	LMR-240	3 GHz	Male Pin Plug	1	Silver	0.1 dB	Dust Tight Waterproof	IP67
McGill Microwave Systems TC-240-NF-PM-X	Gold	White Bronze	Brass		Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Threaded	Panel Mount	N Type	Crimp	Solder	50 Ohm	Beryllium Copper Brass	LMR-240	6000 MHz	Female Socket Jack	1	Silver				Flange
McGill Microwave Systems TC-240-BM-RA-D	Gold	White Bronze	Brass	500 V	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Bayonet Lock	Free Hanging (In-Line) Right Angle	BNC	Crimp	Solder	50 Ohm	Brass	LMR-240	6000 MHz	Male Pin Plug	1	Silver					500 cycles
McGill Microwave Systems TC-240-BM-75-X	Gold	White Bronze	Brass	500 V	Polytetrafluoroethylene (PTFE)	-55 °C	125 °C	Bayonet Lock	Free Hanging (In-Line)	BNC	Crimp	Solder	75 Ohm	Brass	LMR-240-75	4 GHz	Male Pin Plug	1	Silver					500 cycles

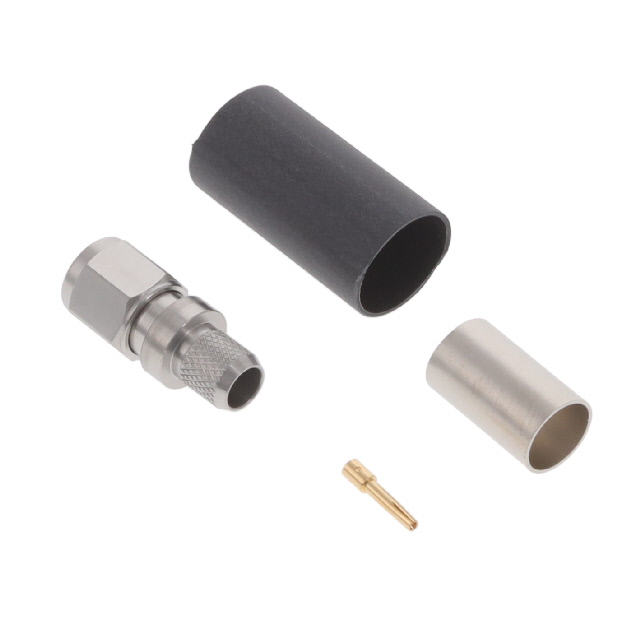

McGill Microwave Systems TC-240-SM-RP	Gold		Stainless Steel			-40 °C	85 °C	Threaded	Free Hanging (In-Line)	RP-SMA	Crimp	Solder	50 Ohm	Beryllium Copper	LMR-240	2.5 GHz	Female Socket Plug	1	Silver
McGill Microwave Systems TC-240-BMC	Gold	Silver	Beryllium Copper Brass	500 V	Polytetrafluoroethylene (PTFE)	-40 °C	85 °C	Bayonet Lock	Free Hanging (In-Line)	BNC	Clamp	Solder	50 Ohm	Brass	LMR-240	1 GHz 2.5 GHz	Male Pin Plug	1	Silver	0.1 dB				500 cycles
McGill Microwave Systems TC-240-FMEM-X	Gold	White Bronze	Brass	500 V	Polytetrafluoroethylene (PTFE)	-55 °C	125 °C	Threaded	Free Hanging (In-Line)	FME	Crimp	Solder	50 Ohm	Brass	LMR-240	2 GHz	Male Pin Plug	1	Silver					500 cycles	Connector Contact Ferrule Heat Shrink Insulator	5 pcs
