53425 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

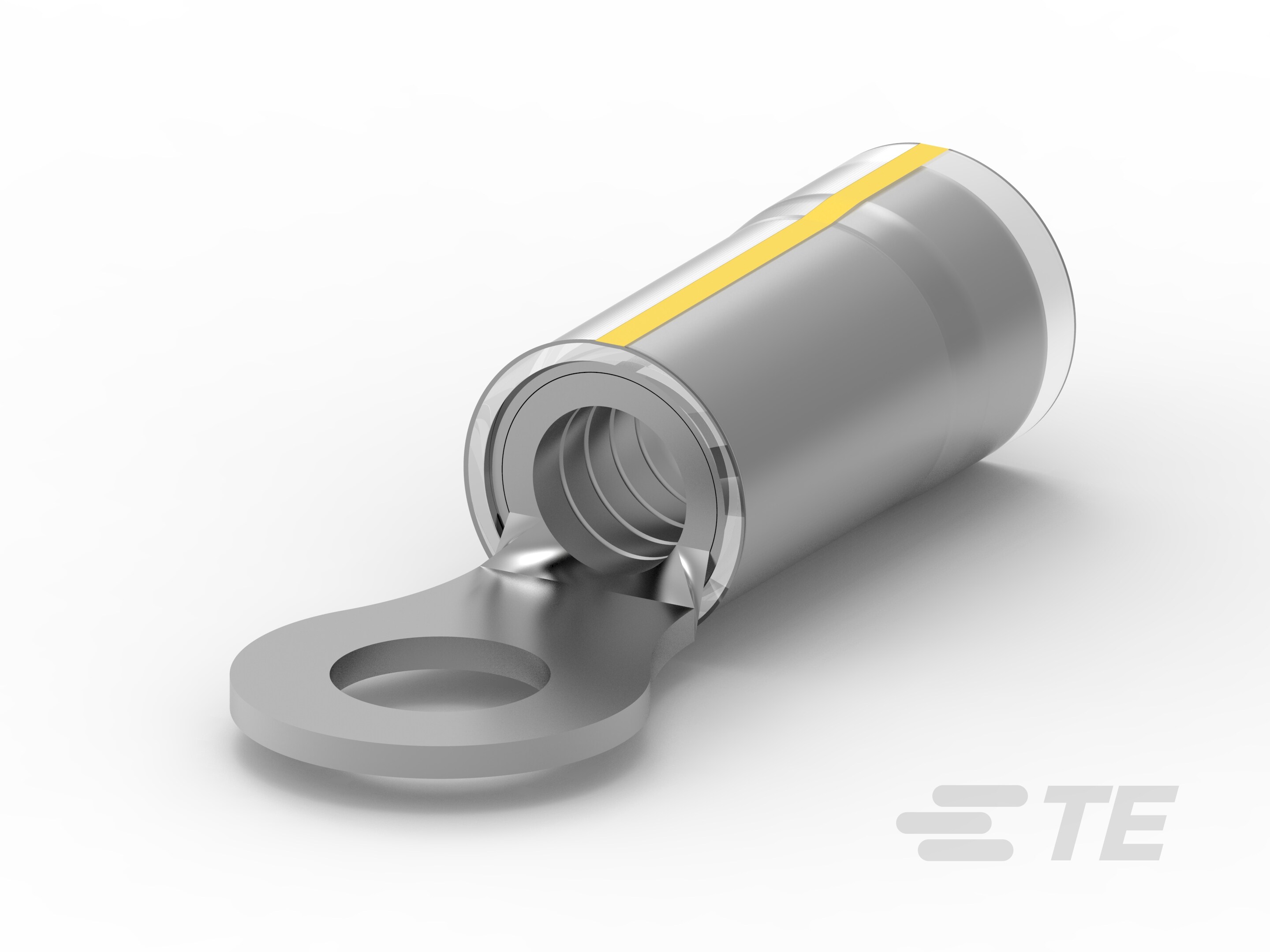

TERMINAL,PIDG PVF2 R 12-10 10
| Part | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Contact Material | Contact Finish | Thickness | Width - Outer Edges | Mounting Type | Stud/Tab Size | Color | Insulation | Termination | Features | Terminal Type | Length - Overall | Material - Insulation | Insulation Diameter (Min) | Insulation Diameter (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 12 AWG | 10 AWG | Copper | Tin-Lead | 0.039 in | 0.375 in | Free Hanging (In-Line) | 10 Stud | Natural Yellow Stripe | Insulated | Crimp | Radiation Resistant Serrated Termination | Circular | 1.083 in | Polyvinylidene Fluoride PVDF | 0.15 in | 0.23 in |
