CL1F1 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLUG HSG FMALE 9POS INLINE

Part	Features	Note	Ingress Protection IP Rating	Ingress Protection Description	Mounting Type	Type	Shielding	Connector Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Housing Color	Fastening Type	Contact Type	Orientation	Contact Shape	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Material Flammability Rating	Number of Positions	Contact Size	Shell Material	Ingress Protection
Amphenol Aerospace Operations CL1F1203	Coupling Nut	Contacts Not Included	IP68	Dust Tight Waterproof	Free Hanging (In-Line)	For Female Sockets	Unshielded	Plug Housing	2	1	Black	Twist Latch	Crimp Solder Cup	Keyed	Circular	125 °C	-40 °C	Thermoplastic	UL94 V-0	9	20	Halogen Free Thermoplastic
Amphenol Aerospace Operations CL1F1201	Coupling Nut	Contacts Not Included	IP67	Dust Tight Waterproof	Free Hanging (In-Line)	For Female Sockets	Unshielded	Plug Housing	2	1	Black	Twist Latch	Crimp Solder Cup	Keyed	Circular	125 °C	-40 °C	Thermoplastic	UL94 V-0	9	20	Halogen Free Thermoplastic

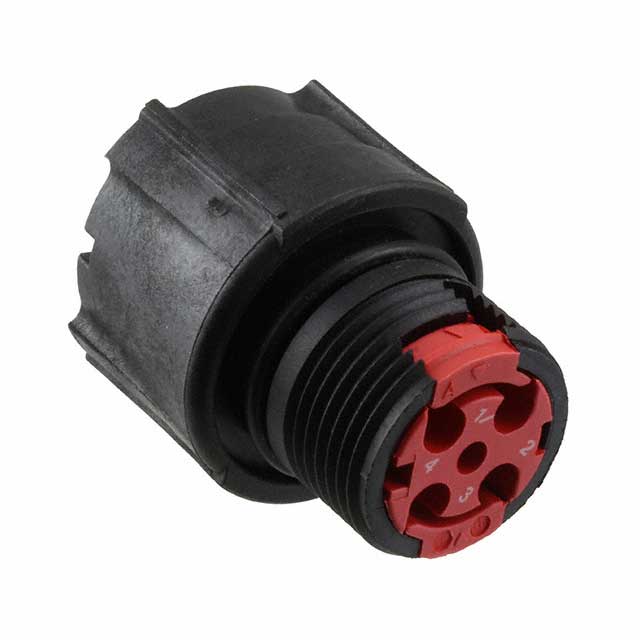

Amphenol Aerospace Operations CL1F1101	Coupling Nut	Contacts Not Included	IP67	Dust Tight Waterproof	Free Hanging (In-Line)	For Female Sockets	Unshielded	Plug Housing	1	1	Black	Twist Latch	Crimp Solder Cup	Keyed	Circular	125 °C	-40 °C	Thermoplastic	UL94 V-0	4	16 S	Halogen Free Thermoplastic
Amphenol Aerospace Operations CL1F1103	Coupling Nut	Contacts Not Included	IP68	Dust Tight Waterproof	Free Hanging (In-Line)	For Female Sockets	Unshielded	Plug Housing	1	1	Black	Twist Latch	Crimp Solder Cup	Keyed	Circular	125 °C	-40 °C	Thermoplastic	UL94 V-0	4	16 S	Halogen Free Thermoplastic

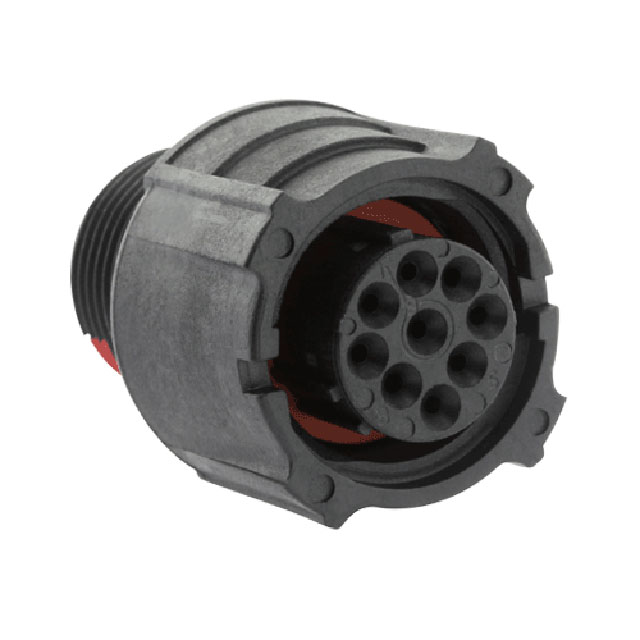

Amphenol Aerospace Operations CL1F1200	Coupling Nut	Contacts Not Included			Free Hanging (In-Line)	For Female Sockets	Unshielded	Plug Housing	2	1	Black	Twist Latch	Crimp Solder Cup	Keyed	Circular	125 °C	-40 °C	Thermoplastic	UL94 V-0	9	20	Halogen Free Thermoplastic	IP40
