2232962 Series

Catalog

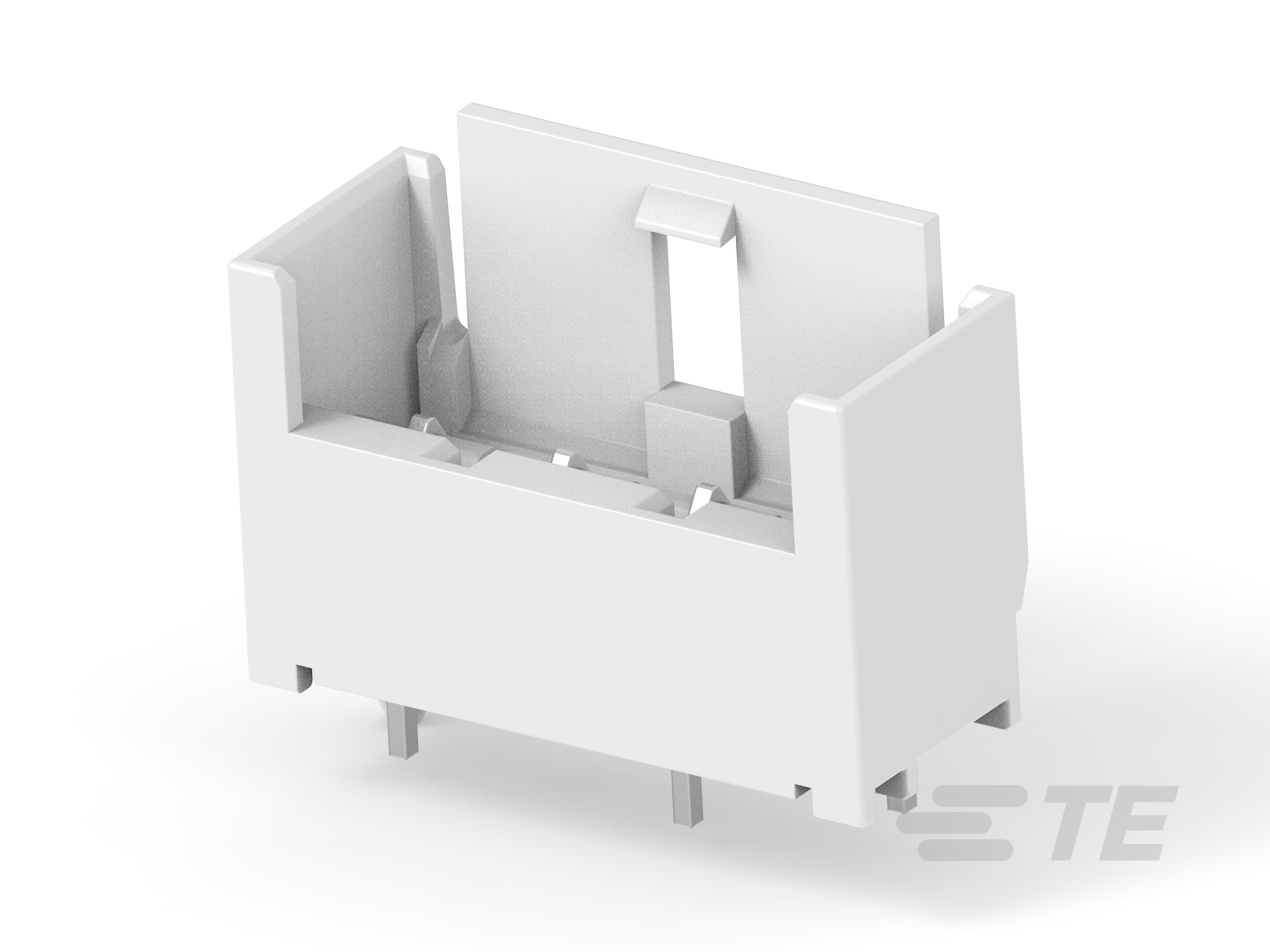

7P POTTED RAST 2.5 HEADER SEL

Part	Insulation Color	Insulation Height	Features	Termination	Contact Material	Style	Insulation Material	Current Rating	Mounting Type	Fastening Type	Number of Positions	Contact Shape	Number of Positions Loaded	Material Flammability Rating	Number of Rows	Connector Type	Shrouding	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Pitch - Mating	Contact Length - Post	Contact Finish - Post	Contact Finish - Mating	Number of Positions Loaded
TE Connectivity AMP Connectors 1-2232962-7	Natural	0.61 in	Board Guide Glow Wire Compliant	Solder	Copper Alloy	Board Cable/Wire	Nylon Polyamide (PA)	2 A	Through Hole	Locking Ramp	7	Rectangular	4	UL94 V-0	1	Header	Shrouded - 4 Wall	Tab	120 °C	-40 °C	250 V	0.098 in	0.11 in	Tin	Tin	All
TE Connectivity AMP Connectors 1-2232962-3	Natural	0.61 in	Board Guide Glow Wire Compliant	Solder	Copper Alloy	Board Cable/Wire	Nylon Polyamide (PA)	2 A	Through Hole	Locking Ramp	3	Rectangular	2	UL94 V-0	1	Header	Shrouded - 4 Wall	Tab	120 °C	-40 °C	250 V	0.098 in	0.11 in	Tin	Tin	All
TE Connectivity AMP Connectors 1-2232962-5	Black Natural	0.61 in	Board Guide Glow Wire Compliant	Solder	Copper Alloy	Board Cable/Wire	Nylon Polyamide (PA)	2 A	Through Hole	Locking Ramp	5	Rectangular	3	UL94 V-0	1	Header	Shrouded - 4 Wall	Tab	120 °C	-40 °C	250 V	0.098 in	0.11 in	Tin	Tin	All
