MIT Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 0.635 MM MIXED TECHNOLOGY HIGH-SPEED TERMINAL STRIP

Part	Number of Rows	Connector Type	Mounting Type	Features	Contact Finish Thickness	Height Above Board	Contact Finish	Number of Positions	Pitch	Mated Stacking Height	Contact Finish Thickness (string set options)	Contact Finish Thickness
Samtec Inc. MIT-038-01-L-D-K	2	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	10 Ąin	0.168 in	Gold	76	0.025 in
Samtec Inc. MIT-057-01-L-D	2	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane)	10 Ąin	0.168 in	Gold	114	0.025 in
Samtec Inc. MIT-019-03-H-D-K	2	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	30 µin	0.6 in	Gold	38	0.025 in
Samtec Inc. MIT-019-06-F-D	2	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane)	0	0.827 in	Gold	38	0.025 in	22 mm	Flash	Flash
Samtec Inc. MIT-057-03-F-D-K-TR	2	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	0	0.6 in	Gold	114	0.025 in		Flash	Flash

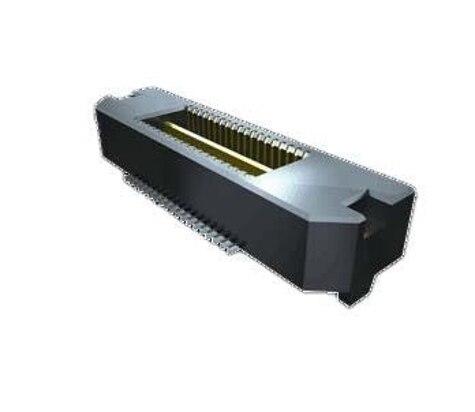

Samtec Inc. MIT-038-05-F-D	2	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane)	0	0.708 in	Gold	76	0.025 in		Flash	Flash
Samtec Inc. MIT-019-01-F-D-K-TR	2	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	0	0.168 in	Gold	38	0.025 in		Flash	Flash
Samtec Inc. MIT-038-04-L-D-K-TR	2	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	10 Ąin	0.6 in	Gold	76	0.025 in	16 mm
Samtec Inc. MIT-057-03-F-D	2	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane)	0	0.6 in	Gold	114	0.025 in		Flash	Flash
Samtec Inc. MIT-019-05-F-D	2	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane)	0	0.708 in	Gold	38	0.025 in		Flash	Flash
