643642 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

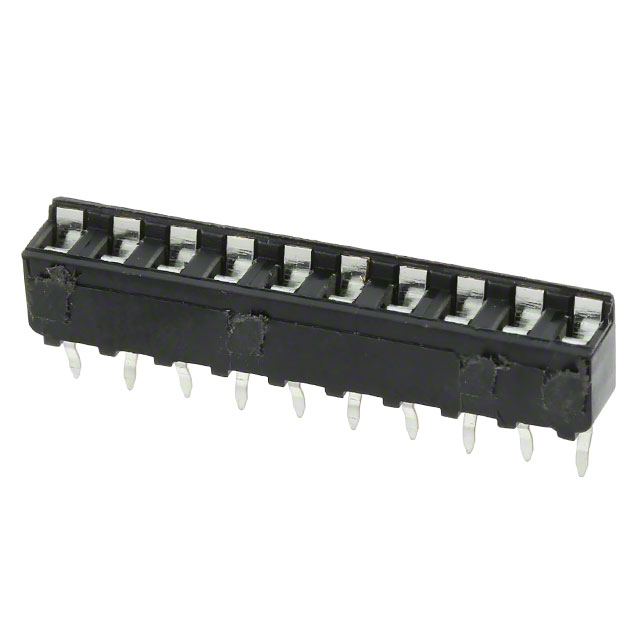

CONN SOCKET SIP 10POS TIN
| Part | Termination Post Length | Material Flammability Rating | Type | Contact Finish - Post | Operating Temperature (Min) | Operating Temperature (Max) | Pitch - Post | Housing Material | Grid Columns | Number of Positions or Pins (Grid) | Grid Rows | Features | Mounting Type | Contact Material - Mating | Contact Finish - Mating | Pitch - Mating | Termination | Contact Material - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.13 in | UL94 V-0 | SIP | Tin | -55 °C | 105 °C | 0.1 in | Glass Filled Thermoplastic | 10 | 10 | 1 | Closed Frame | Through Hole | Phosphor Bronze | Tin | 0.1 in | Solder | Phosphor Bronze | ||
 TE Connectivity AMP Connectors | 0.13 in | UL94 V-0 | SIP | Gold | -55 °C | 125 °C | 0.1 in | Glass Filled Thermoplastic | 10 | 10 | 1 | Closed Frame | Through Hole | Beryllium Copper | Gold | 0.1 in | Solder | Beryllium Copper | 30 µin | 30 µin |
