59024 Series

SW TGL 2POS SPST MOM

Catalog

SW TGL 2POS SPST MOM

Part	Actuator Material	Switch Function	Current Rating	Actuator Type	Mounting Type	Illumination	Voltage Rating - DC	Panel Cutout Diameter	Panel Cutout Shape	Circuit	Actuator Length	Bushing Thread	Termination Style	Quick Connect Size (0.250")

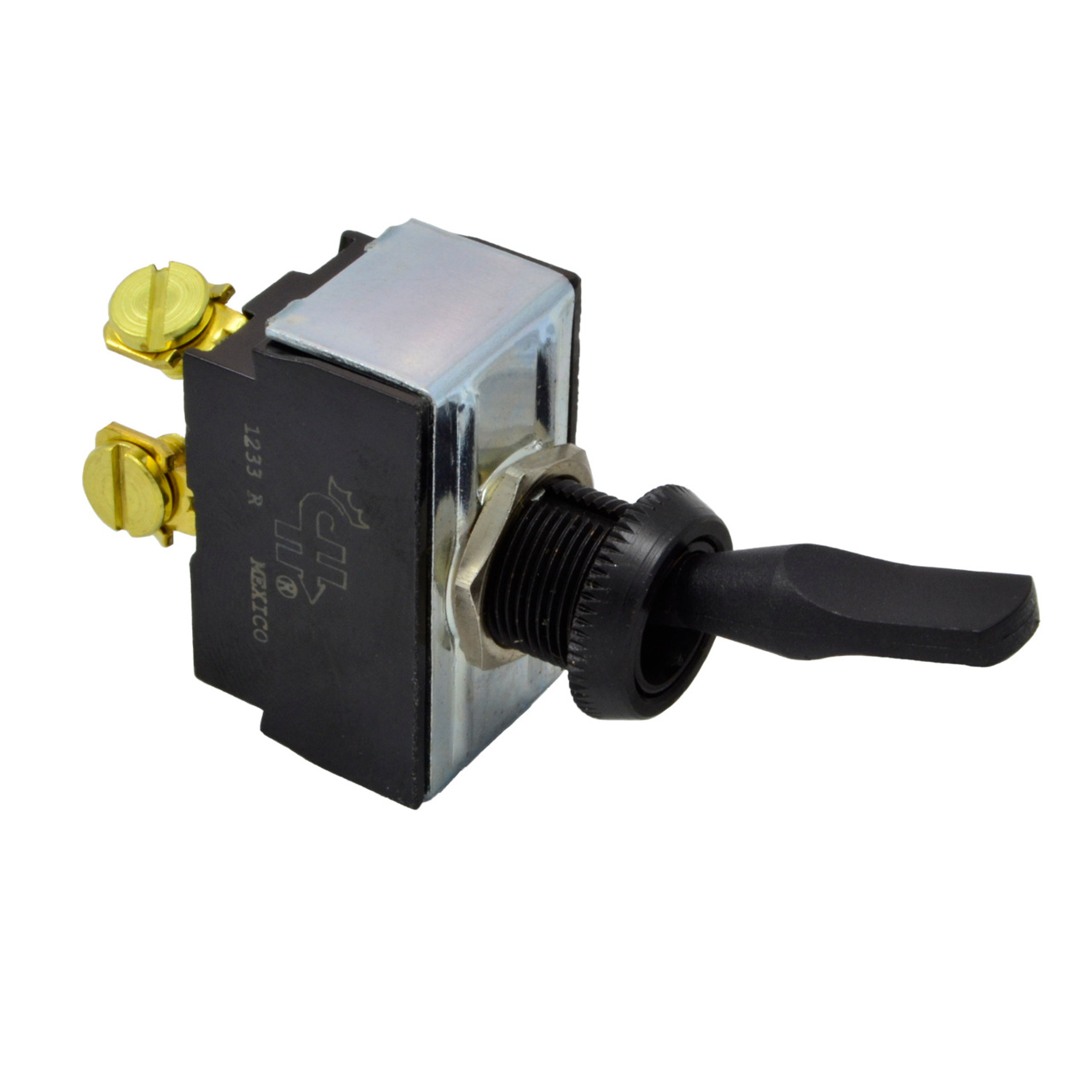

LITTELFUSE 59024-200	Plastic	On-Off	25 A	Paddle	Panel Mount	Non-Illuminated	12 V	11.9 mm	Circular	SPST	1 in	15/32-32	Screw Terminal
LITTELFUSE 59024-100	Plastic	On-Off	25 A	Paddle	Panel Mount	Non-Illuminated	12 V	11.9 mm	Circular	SPST	1 in	15/32-32	Quick Connect	0.25 in
LITTELFUSE 59024-100-BX	Plastic	On-Off	25 A	Paddle	Panel Mount	Non-Illuminated	12 V			SPST	1 in	15/32-32
LITTELFUSE 59024-110	Plastic	On-Off	25 A	Paddle	Panel Mount	Non-Illuminated	12 V	11.9 mm	Circular	DPST	1 in	15/32-32	Quick Connect	0.25 in

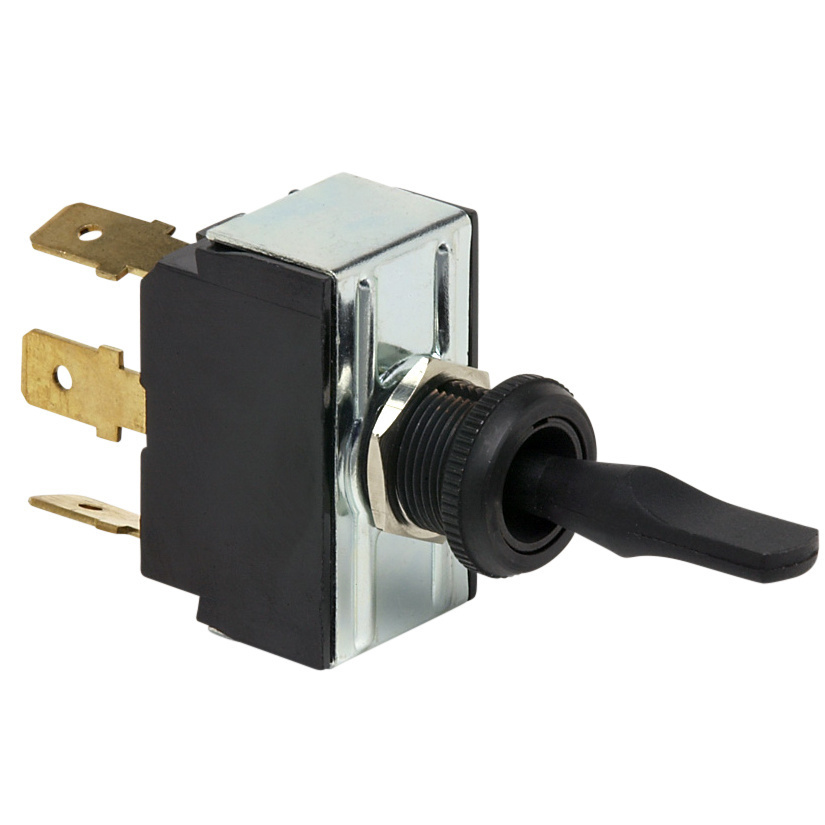

LITTELFUSE 59024-116	Plastic	On-On	25 A	Paddle	Panel Mount	Non-Illuminated	12 V	11.9 mm	Circular	DPDT	1 in	15/32-32	Quick Connect	0.25 in

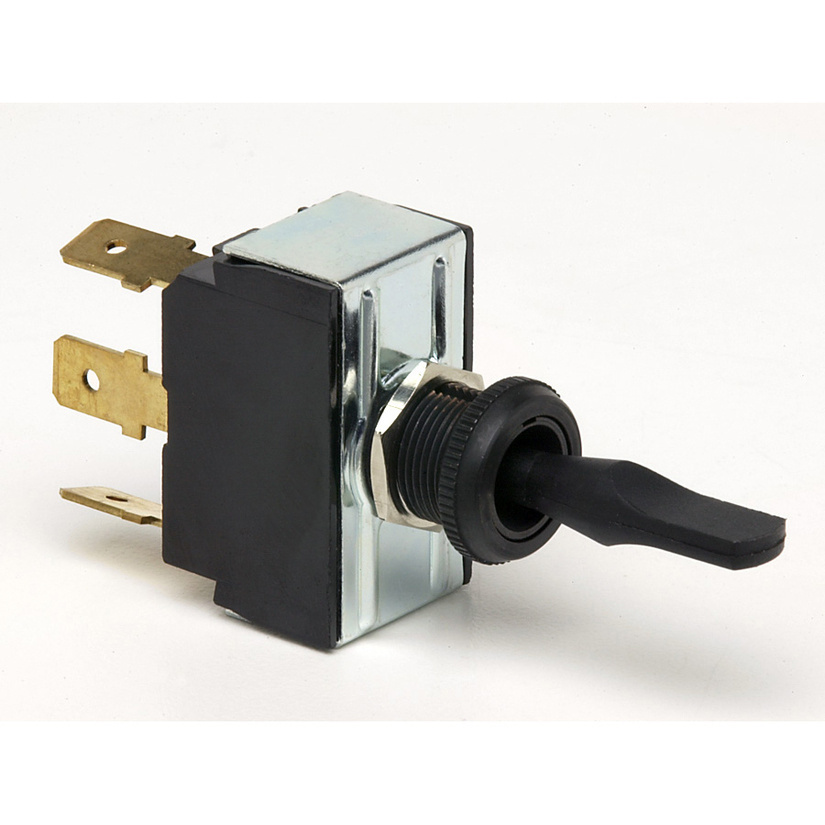

LITTELFUSE 59024-106	Plastic	On-Off-On	25 A	Paddle	Panel Mount	Non-Illuminated	12 V	11.9 mm	Circular	SPDT	1 in	15/32-32	Quick Connect	0.25 in

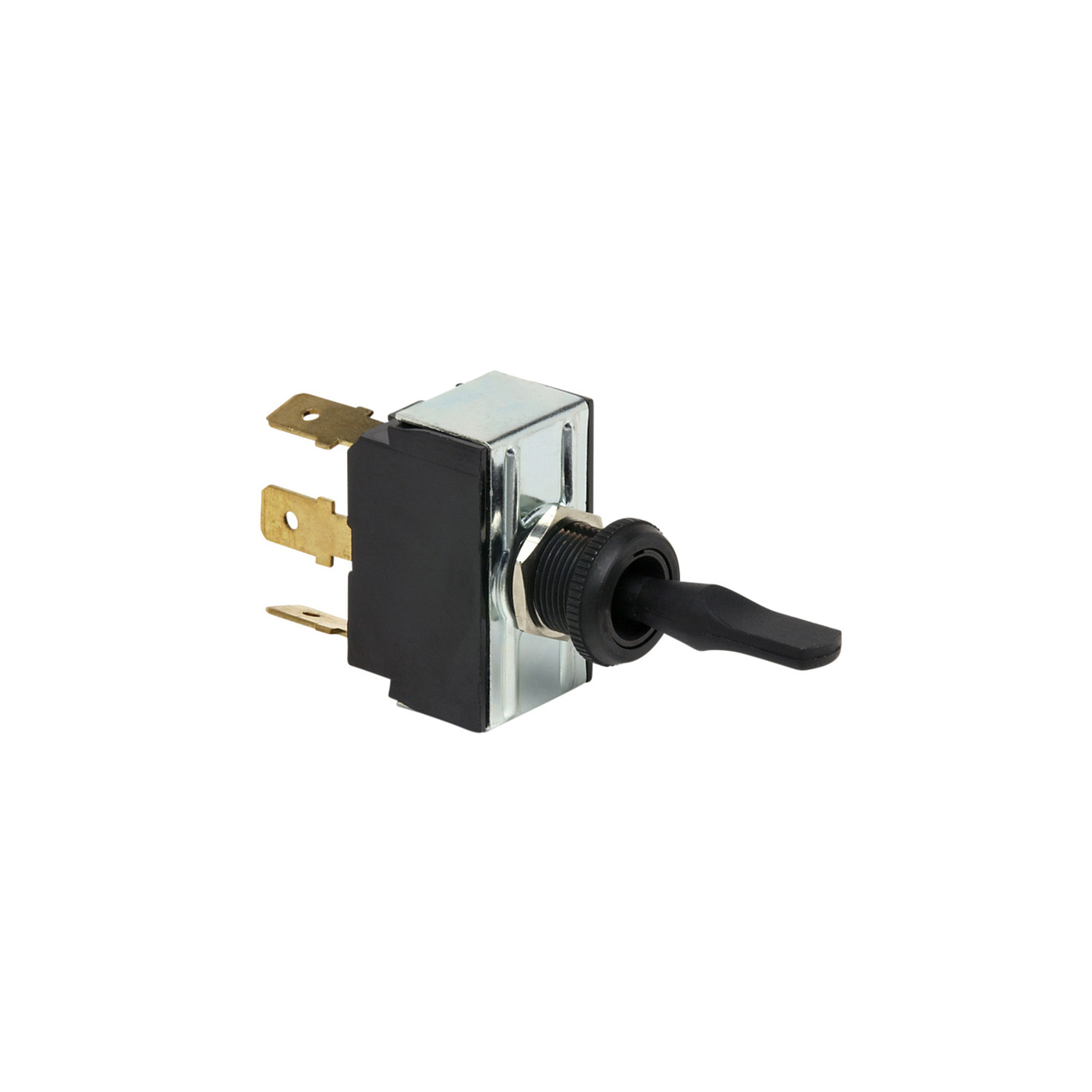

LITTELFUSE 59024-108	Plastic	Mom-Off-Mom	25 A	Paddle	Panel Mount	Non-Illuminated	12 V	11.9 mm	Circular	SPDT	1 in	15/32-32	Quick Connect	0.25 in
LITTELFUSE 59024-102	Plastic	Off-Mom	25 A	Paddle	Panel Mount	Non-Illuminated	12 V	11.9 mm	Circular	SPST-NO	1 in	15/32-32	Quick Connect	0.25 in

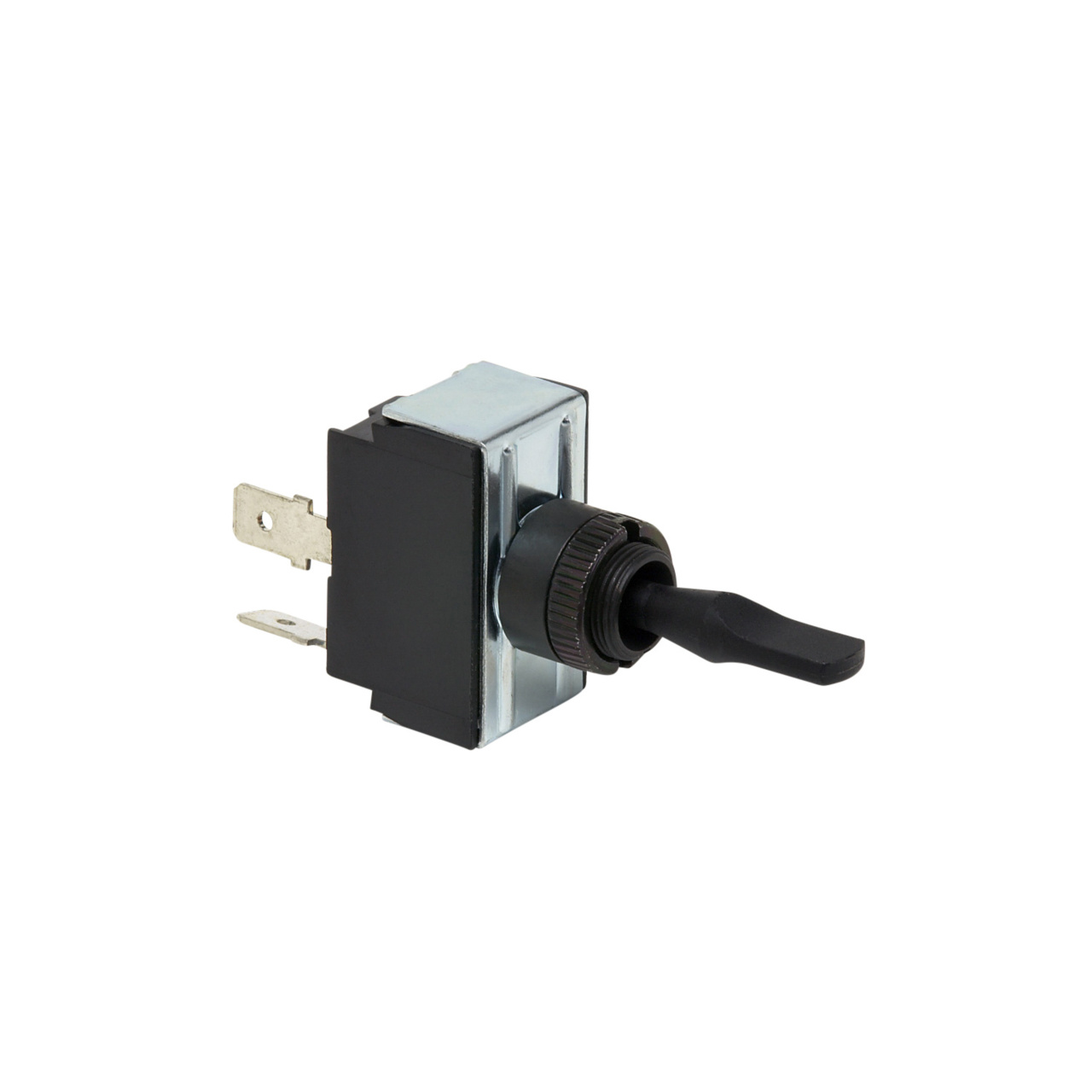

LITTELFUSE 59024-12	Plastic	On-Off	25 A	Paddle	Panel Mount	Non-Illuminated	12 V	11.9 mm	Circular	SPST	1 in	15/32-32	Quick Connect	0.25 in

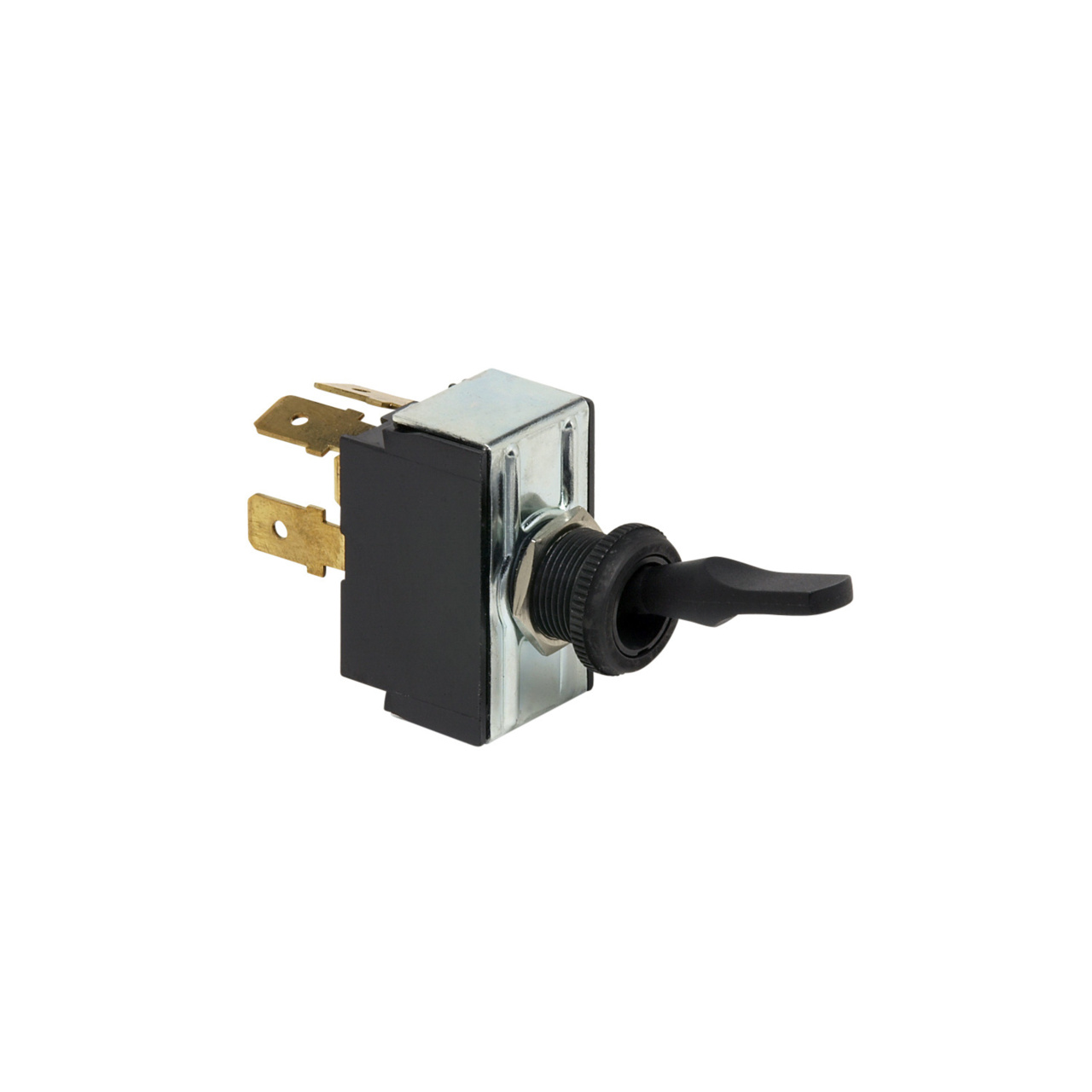

LITTELFUSE 59024-126	Plastic	Mom-Off-Mom	25 A	Paddle	Panel Mount	Non-Illuminated	12 V	11.9 mm	Circular	DPDT	1 in	15/32-32	Quick Connect	0.25 in

Catalog

SW TGL 2POS SPST MOM

Description

Terminals are arranged to match OEM wiring connectors. 59024-00 series available with or without brackets. Silver contacts. Black phenolic switch housing with metal cap. 15/32" -32 thread mounting stem. Fits panels to .093" (2.4mm) with spacer provided, or to .25" (6.4mm) without spacer. Includes mounting hardware: black metal facenut. Keyway is in the down position. Black plastic 1" (25.4mm) handle, matte finish. Two tin-plated blade terminals. 25A at 12V DC. Up: On, Down: Off. Dual contacts for extra durability.
