68000 Series

Catalog

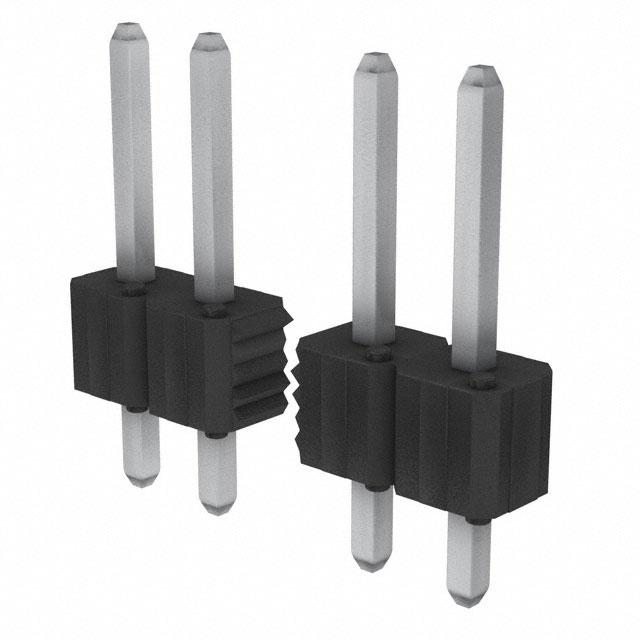

CONN HEADER VERT 36000POS 2.54MM

...

Part	Termination	Material Flammability Rating	Overall Contact Length	Shrouding	Style	Insulation Height	Fastening Type	Number of Positions Loaded	Contact Finish - Post	Contact Finish Thickness - Mating	Number of Rows	Contact Shape	Current Rating (Per Contact)	Contact Length - Mating	Insulation Color	Number of Positions	Contact Material	Connector Type	Contact Type	Insulation Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Length - Post	Contact Finish - Mating	Pitch - Mating	Mounting Type	Number of Positions
Amphenol ICC (FCI) 68000-100H	Solder	UL94 V-0	0.425 in	Unshrouded	Board	0.1 in	Push-Pull	All	Tin	30 µin	1	Square	3 A	0.23 in	Black	Cuttable	Phosphor Bronze	Header	Male Pin	Liquid Crystal Polymer (LCP)	125 °C	-65 °C	0.095 in	Gold GXT™	0.1 in	Through Hole
Amphenol ICC (FCI) 68000-421HLF	Solder	UL94 V-0	0.425 in	Unshrouded	Board	0.1 in	Push-Pull	All	Tin	100 µin	1	Square	3 A	0.23 in	Black		Phosphor Bronze	Header	Male Pin		125 °C	-65 °C	0.095 in	Tin	0.1 in	Through Hole	21
Amphenol ICC (FCI) 68000-204	Solder	UL94 V-0	0.425 in	Unshrouded	Board	0.1 in	Push-Pull	All		15 µin	1	Square	3 A	0.23 in	Black		Phosphor Bronze	Header	Male Pin		125 °C	-65 °C	0.095 in	Gold GXT™	0.1 in	Through Hole	4
Amphenol ICC (FCI) 68000-230HLF	Solder	UL94 V-0	0.425 in	Unshrouded	Board	0.1 in	Push-Pull	All		15 µin	1	Square	3 A	0.23 in	Black		Phosphor Bronze	Header	Male Pin		125 °C	-65 °C	0.095 in	Gold GXT™	0.1 in	Through Hole	30
Amphenol ICC (FCI) 68000-223HLF	Solder	UL94 V-0	0.425 in	Unshrouded	Board	0.1 in	Push-Pull	All		15 µin	1	Square	3 A	0.23 in	Black		Phosphor Bronze	Header	Male Pin		125 °C	-65 °C	0.095 in	Gold GXT™	0.1 in	Through Hole	23
Amphenol ICC (FCI) 68000-100HLF	Solder	UL94 V-0	0.425 in	Unshrouded	Board	0.1 in	Push-Pull	All	Tin	30 µin	1	Square	3 A	0.23 in	Black	Cuttable	Phosphor Bronze	Header	Male Pin	Liquid Crystal Polymer (LCP)	125 °C	-65 °C	0.095 in	Gold GXT™	0.1 in	Through Hole
Amphenol ICC (FCI) 68000-602H	Solder	UL94 V-0	0.425 in	Unshrouded	Board	0.1 in	Push-Pull	All		30 µin	1	Square	3 A	0.23 in	Black		Phosphor Bronze	Header	Male Pin		125 °C	-65 °C	0.095 in	Gold GXT™	0.1 in	Through Hole	2
Amphenol ICC (FCI) 68000-129HLF	Solder	UL94 V-0	0.425 in	Unshrouded	Board	0.1 in	Push-Pull	All		30 µin	1	Square	3 A	0.23 in	Black		Phosphor Bronze	Header	Male Pin		125 °C	-65 °C	0.095 in	Gold GXT™	0.1 in	Through Hole	29
Amphenol ICC (FCI) 68000-102H	Solder	UL94 V-0	0.425 in	Unshrouded	Board	0.1 in	Push-Pull	All		30 µin	1	Square	3 A	0.23 in	Black		Phosphor Bronze	Header	Male Pin		125 °C	-65 °C	0.095 in	Gold GXT™	0.1 in	Through Hole	2
Amphenol ICC (FCI) 68000-302HLF	Solder	UL94 V-0	0.425 in	Unshrouded	Board	0.1 in	Push-Pull	All		50 µin	1	Square	3 A	0.23 in	Black		Phosphor Bronze	Header	Male Pin		125 °C	-65 °C	0.095 in	Gold GXT™	0.1 in	Through Hole	2
