84321I Series

260MHz, Crystal-to-3.3V Differential LVPECL Frequency Synthesizer

Manufacturer: Renesas Electronics Corporation

Catalog

260MHz, Crystal-to-3.3V Differential LVPECL Frequency Synthesizer

Part	Differential Output	Differential Input	Input	Frequency - Max	Multiplier	Divider	Mounting Type	Type	Number of Circuits	Operating Temperature (Min)	Operating Temperature (Max)	Package Width	Package Name	Package Length	Input Ratio	Output Ratio	Package / Case	Output	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	PLL
Renesas Electronics Corporation 84321AYILF	Yes	No	Crystal	260 MHz	No	Yes	Surface Mount	Frequency Synthesizer	1	-40 °C	85 °C	7 mm	32-TQFP	7 mm	1	2	32-LQFP	LVPECL	3.135 V	3.465 V	Yes with Bypass

Catalog

260MHz, Crystal-to-3.3V Differential LVPECL Frequency Synthesizer

Description

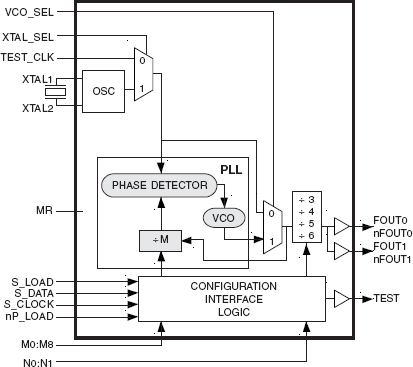

The 84321I is a general purpose, dual output Crystal-to- 3.3V Differential LVPECL High Frequency Synthesizer The 84321I has a selectable TEST_CLK or crystal inputs. The VCO operates at a frequency range of 620MHz to 780MHz. The VCO frequency is programmed in steps equal to the value of the input reference or crystal frequency. The VCO and output frequency can be programmed using the serial or parallel interfaces to the configuration logic. The low phase noise characteristics of the 84321I make it an ideal clock source for Fibre Channel 1, Fibre Channel 2, 10 Gigabit Fibre Channel, Gigabit Ethernet and 10 Gigabit Ethernet applications.
