52942 Series

Catalog

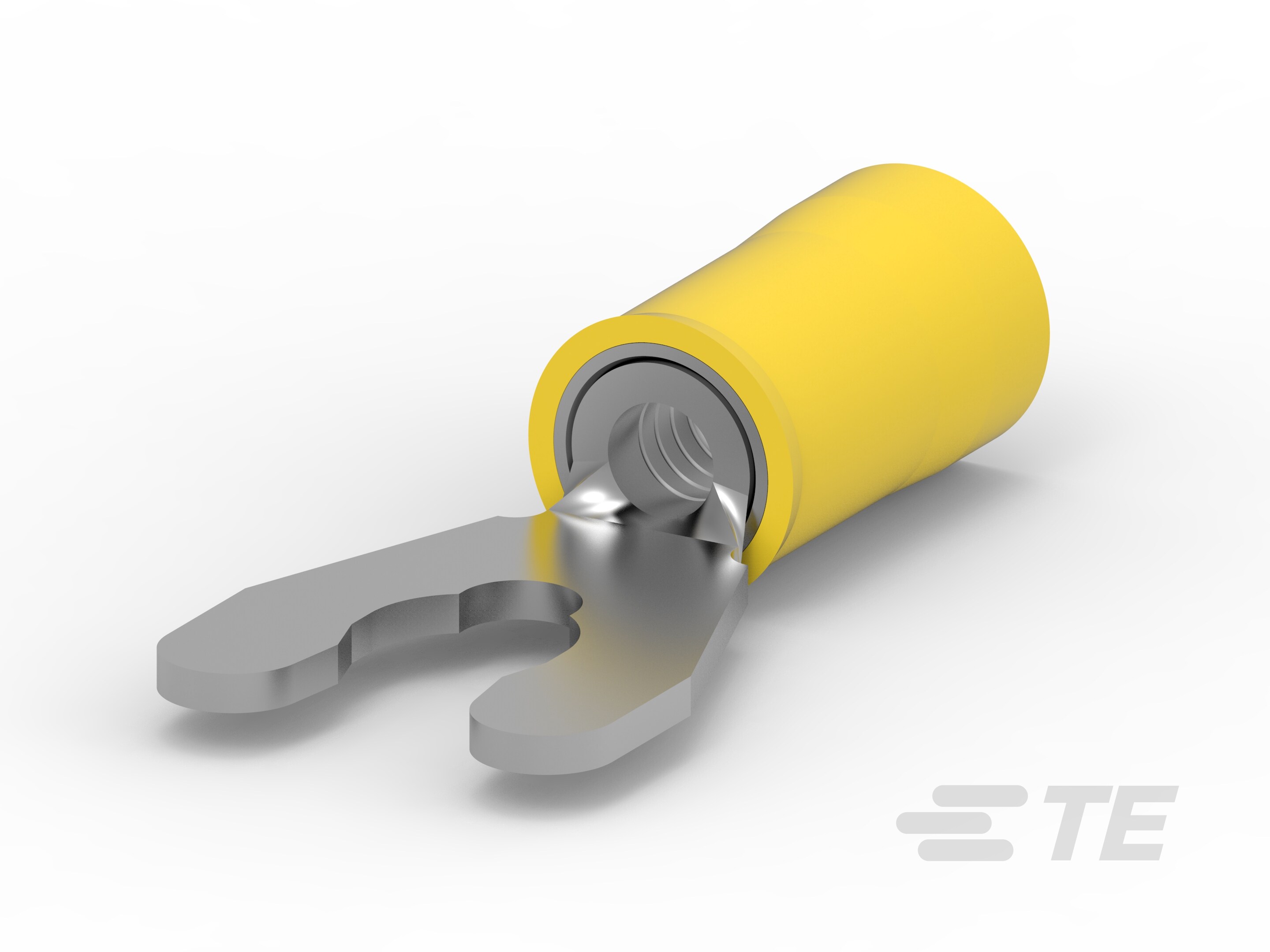

CONN SPADE TERM 10-12AWG #8 YEL

Part	Length - Overall	Termination	Color	Insulation	Contact Finish	Mounting Type	Width - Outer Edges	Features	Contact Material	Terminal Type	Stud/Tab Size	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Length - Termination	Insulation Diameter (Min)	Insulation Diameter (Max)	Material - Insulation	Tongue Inside Opening	Length - Ring Center to Termination
TE Connectivity AMP Connectors 8-52942-1	1.052 in	Crimp	Yellow	Insulated	Tin	Free Hanging (In-Line)	0.375 in	Serrated Termination	Phosphor Bronze	Snap Spring	8 Stud	12 AWG	10 AWG	0.601 in	0.15 in	0.25 in	Nylon PA Polyamide	0.164 in	0.276 in
TE Connectivity AMP Connectors 52942-1	1.052 in	Crimp	Yellow	Insulated	Tin	Free Hanging (In-Line)	0.375 in	Serrated Termination	Phosphor Bronze	Snap Spring	8 Stud	12 AWG	10 AWG	0.601 in	0.15 in	0.25 in	Nylon PA Polyamide	0.164 in	0.276 in
