34162 Series

Catalog

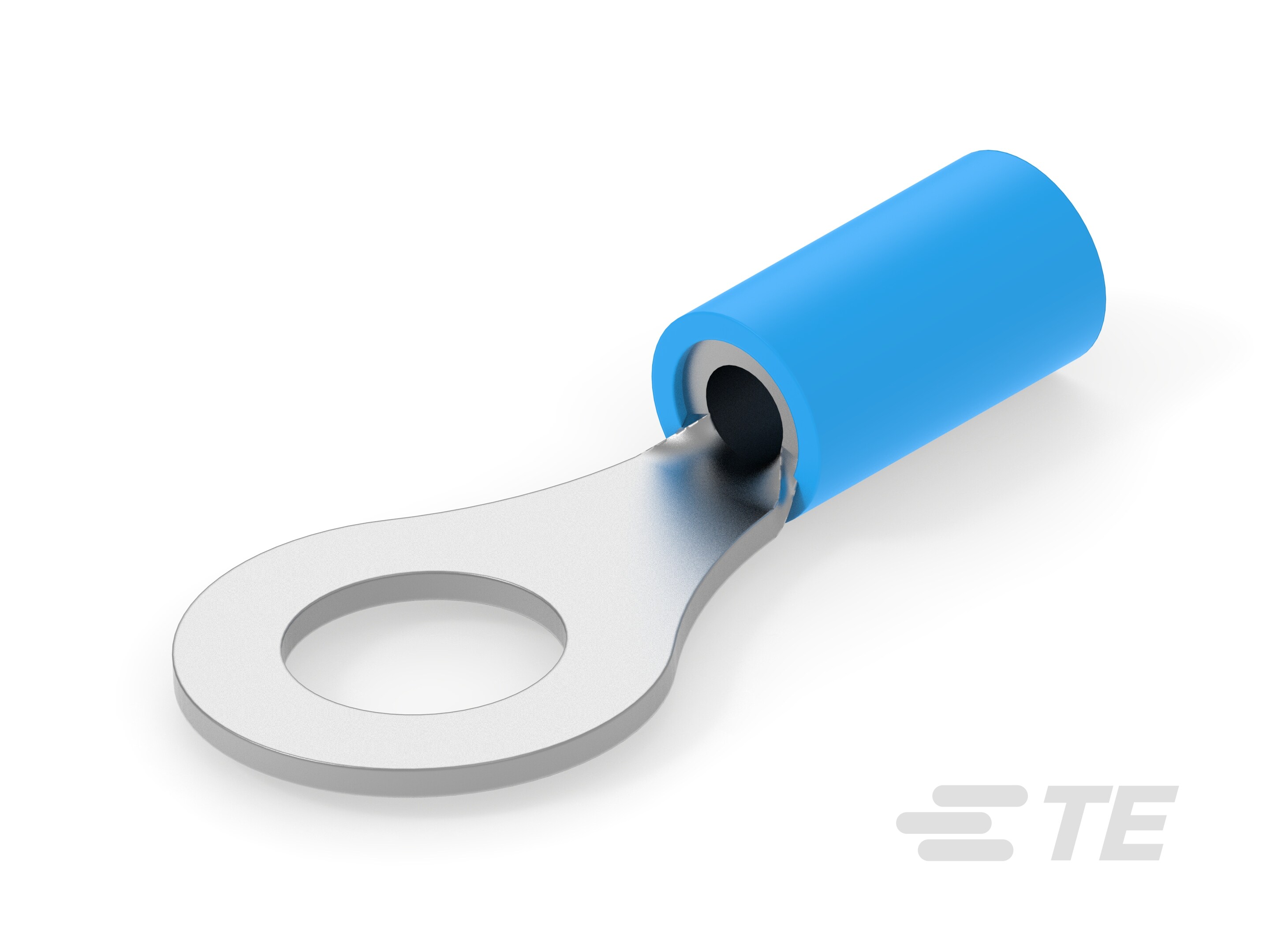

CONN RING CIRC 14-16AWG #1/4

Part	Material - Insulation	Insulation Diameter (Max)	Insulation Diameter (Min)	Width - Outer Edges	Mounting Type	Terminal Type	Stud/Tab Size	Features	Contact Material	Thickness	Color	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Length - Overall	Termination	Insulation	Contact Finish
TE Connectivity AMP Connectors 8-34162-1	Poly-Vinyl Chloride PVC	0.193 in	0.118 in	0.469 in	Free Hanging (In-Line)	Circular	0.25 Stud	Serrated Termination	Copper	0.031 in	Blue	16 AWG	14 AWG	1.09 in	Crimp	Insulated	Tin
TE Connectivity AMP Connectors 2-34162-1	Poly-Vinyl Chloride PVC	0.193 in	0.118 in	0.469 in	Free Hanging (In-Line)	Circular	0.25 Stud	Serrated Termination	Copper	0.031 in	Blue	16 AWG	14 AWG	1.09 in	Crimp	Insulated	Tin
