207444 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 18POS 5MM

Part	Number of Rows	Number of Positions Loaded	Style	Voltage Rating	Contact Length - Post	Mounting Type	Contact Finish Thickness - Mating	Current Rating	Contact Finish - Post	Contact Type	Contact Material	Row Spacing - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Termination	Number of Positions	Insulation Color	Insulation Height	Contact Finish - Mating	Pitch - Mating	Shrouding	Material Flammability Rating	Insulation Material	Contact Shape	Connector Type	Applications	Contact Finish Thickness - Post	Features
TE Connectivity AMP Connectors 207444-4	3	All	Board Board or Cable	600 V	0.181 in	Through Hole	30 µin	7.5 A	Tin-Lead	Male Pin	Brass	0.197 in	-55 °C	130 °C	Latch Lock	Solder	18	Black Red	0.464 in	Gold	0.197 in	Shrouded - 4 Wall	UL94 V-0	Nylon Polyamide (PA)	Circular	Header	Automotive General Purpose Industrial	150 µin
TE Connectivity AMP Connectors 1-207444-1	3	All	Board Board or Cable	600 V	0.181 in	Through Hole	30 µin	7.5 A	Tin	Male Pin	Brass	0.197 in	-55 °C	130 °C	Latch Lock	Solder	18	Black Red	0.464 in	Gold PdNi +Gold	0.197 in	Shrouded - 4 Wall	UL94 V-0	Nylon Polyamide (PA)	Circular	Header	Automotive General Purpose Industrial	150 µin
TE Connectivity AMP Connectors 207444-3	3	All	Board Board or Cable	600 V	0.181 in	Through Hole	30 µin	7.5 A	Tin-Lead	Male Pin	Brass	0.197 in	-55 °C	130 °C	Latch Lock	Solder	18	Black Red	0.464 in	Gold	0.197 in	Shrouded - 4 Wall	UL94 V-0	Nylon Polyamide (PA)	Circular	Header	Automotive General Purpose Industrial	150 µin	Mounting Flange

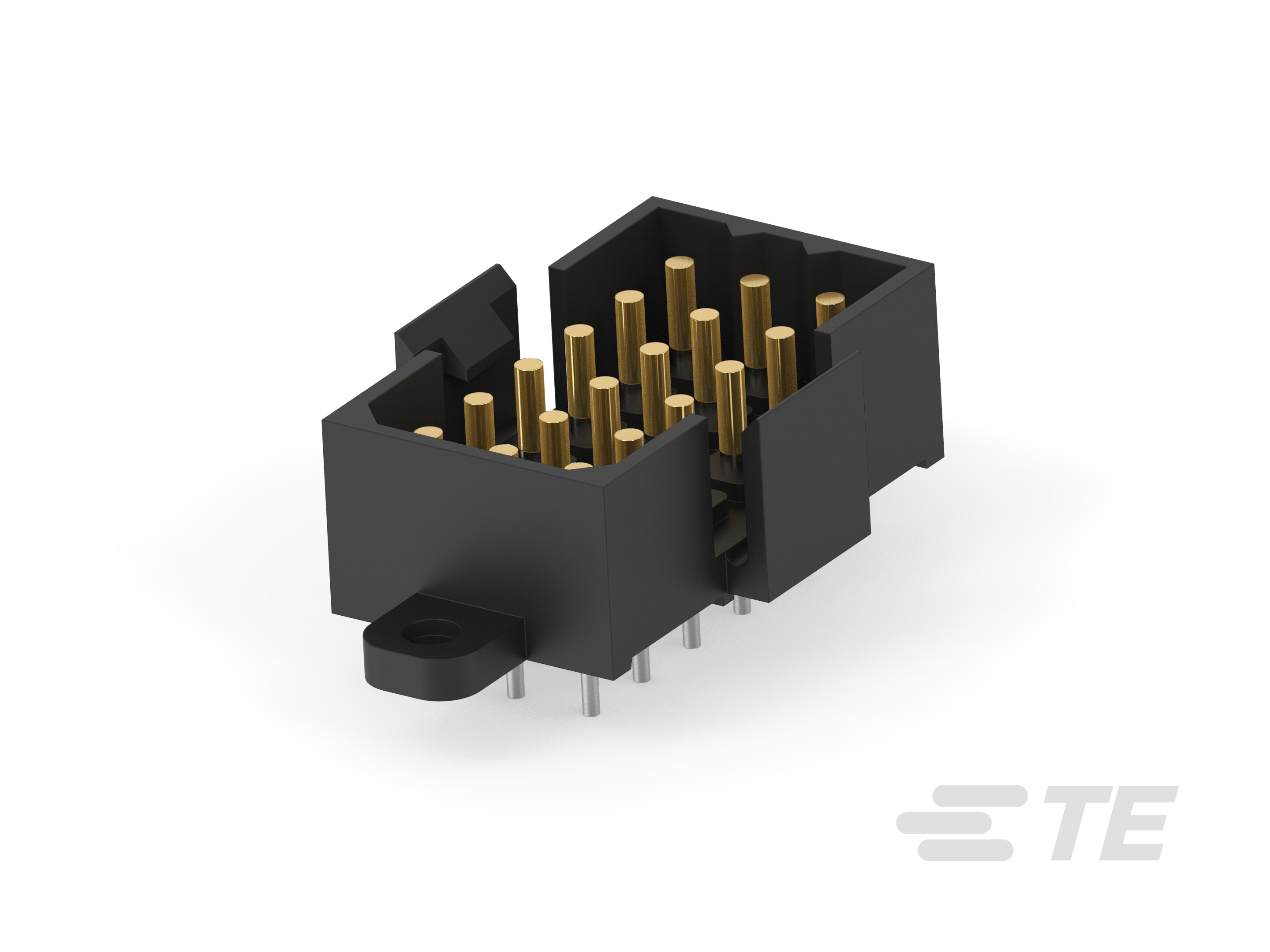

TE Connectivity AMP Connectors 207444-8	3	All	Board Board or Cable	600 V	0.181 in	Through Hole	30 µin	7.5 A	Tin	Male Pin	Brass	0.197 in	-55 °C	130 °C	Latch Lock	Solder	18	Black Red	0.464 in	Gold	0.197 in	Shrouded - 4 Wall	UL94 V-0	Nylon Polyamide (PA)	Circular	Header	Automotive General Purpose Industrial	150 µin	Mounting Flange
