Power Diode Discretes-FRED ISO247
Description
AI
The HiperFRED Low Vf series offers improved forward voltage characteristics and breakdown voltages up to 1200V.
Beta
⌘K
Power Diode Discretes-FRED ISO247
Power Diode Discretes-FRED ISO247
| Part | Package Name | Reverse Recovery Time (trr) | Mounting Type | Speed - Fast Recovery (Maximum) | Speed - Fast Recovery (Minimum) | Current - Average Rectified (Io) | Technology | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Voltage - Forward (Vf) (Max) | Package / Case | Capacitance | Voltage - DC Reverse (Vr) (Max) | Current - Reverse Leakage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

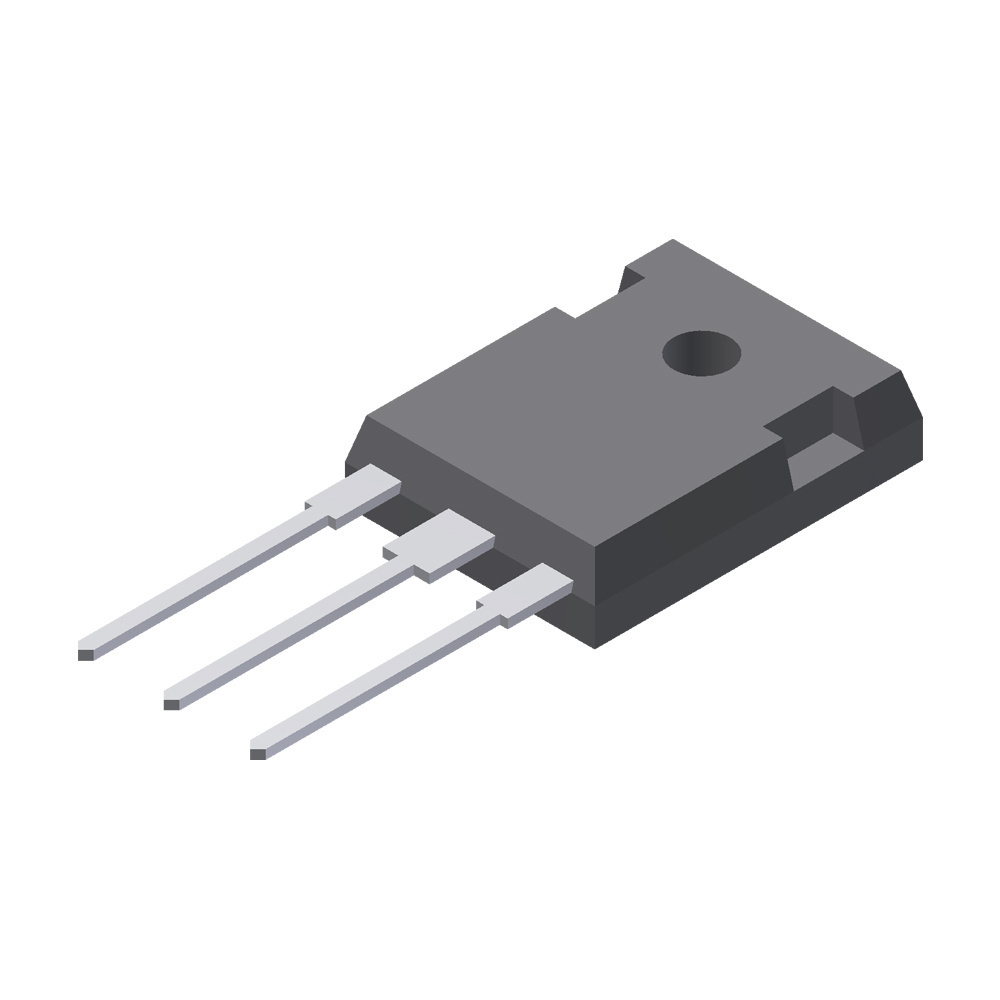

LITTELFUSE | ISO247 | 35 ns | Through Hole | 500 ns | 200 mA | 30 A | Standard | 175 °C | -55 °C | 1.62 V | TO-247-3 | 26 pF | 600 V | 500 µA |
