1609091 Series
Manufacturer: TE Connectivity Corcom Filters
Beta
⌘K

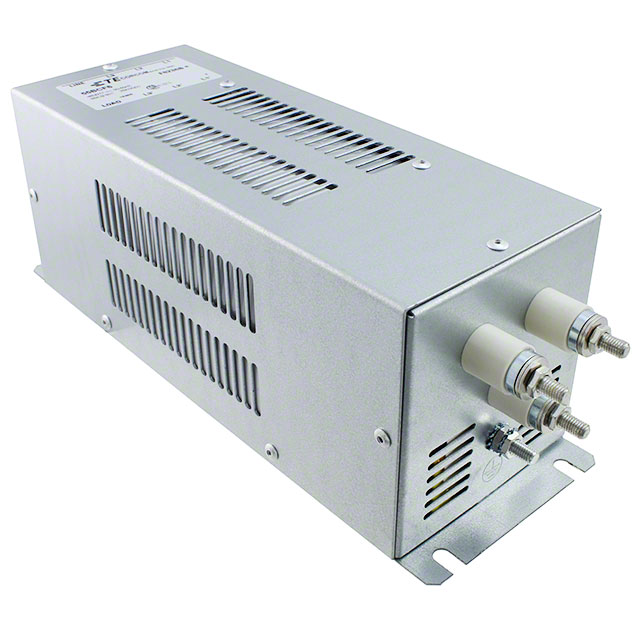

LINE FILTER 42A CHASSIS MOUNT
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Configuration | Frequency - Operating (Min) | Frequency - Operating | Frequency - Operating (Max) | Applications | Voltage - Rated AC (Phase to Ground/Neutral) | Approval Agency | Mounting Type | Voltage - Rated AC (Phase to Phase) | Current | Termination Size | Thread Size | Termination Style | Filter Subtype | Filter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Corcom Filters | -10 °C | 50 °C | Two Stage | 50 Hz | 50Hz 60Hz | 60 Hz | Inverters Power Drive Systems | 277 V | UR VDE | Chassis Mount | 480 V | 42 A | 5 mm | M5 | Threaded Post Threaded Post (M5) | Delta | Three Phase |
 TE Connectivity Corcom Filters | -10 °C | 50 °C | Two Stage | 50 Hz | 50Hz 60Hz | 60 Hz | Inverters Power Drive Systems | 277 V | UR VDE | Chassis Mount | 480 V | 75 A | Threaded Post (M6) | Delta | Three Phase | ||
 TE Connectivity Corcom Filters | -10 °C | 50 °C | Two Stage | 50 Hz | 50Hz 60Hz | 60 Hz | Inverters Power Drive Systems | 277 V | UR VDE | Chassis Mount | 480 V | 55 A | 5 mm | M5 | Threaded Post Threaded Post (M5) | Delta | Three Phase |
 TE Connectivity Corcom Filters | -10 °C | 50 °C | Two Stage | 50 Hz | 50Hz 60Hz | 60 Hz | Inverters Power Drive Systems | 277 V | UR VDE | Chassis Mount | 480 V | 30 A | 5 mm | M5 | Threaded Post Threaded Post (M5) | Delta | Three Phase |
