1986799 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
PLUGGABLE TERMINAL BLOCKS 4P TERMIBLOK HDR DIR C VITI KEY FEAT
| Part | Positions Per Level | Header Orientation | Pitch | Termination Style | Number of Levels | Number of Positions | Operating Temperature (Min) | Operating Temperature (Max) | Features | Color | Contact Mating Finish | Mounting Type | Voltage - UL | Current - UL | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

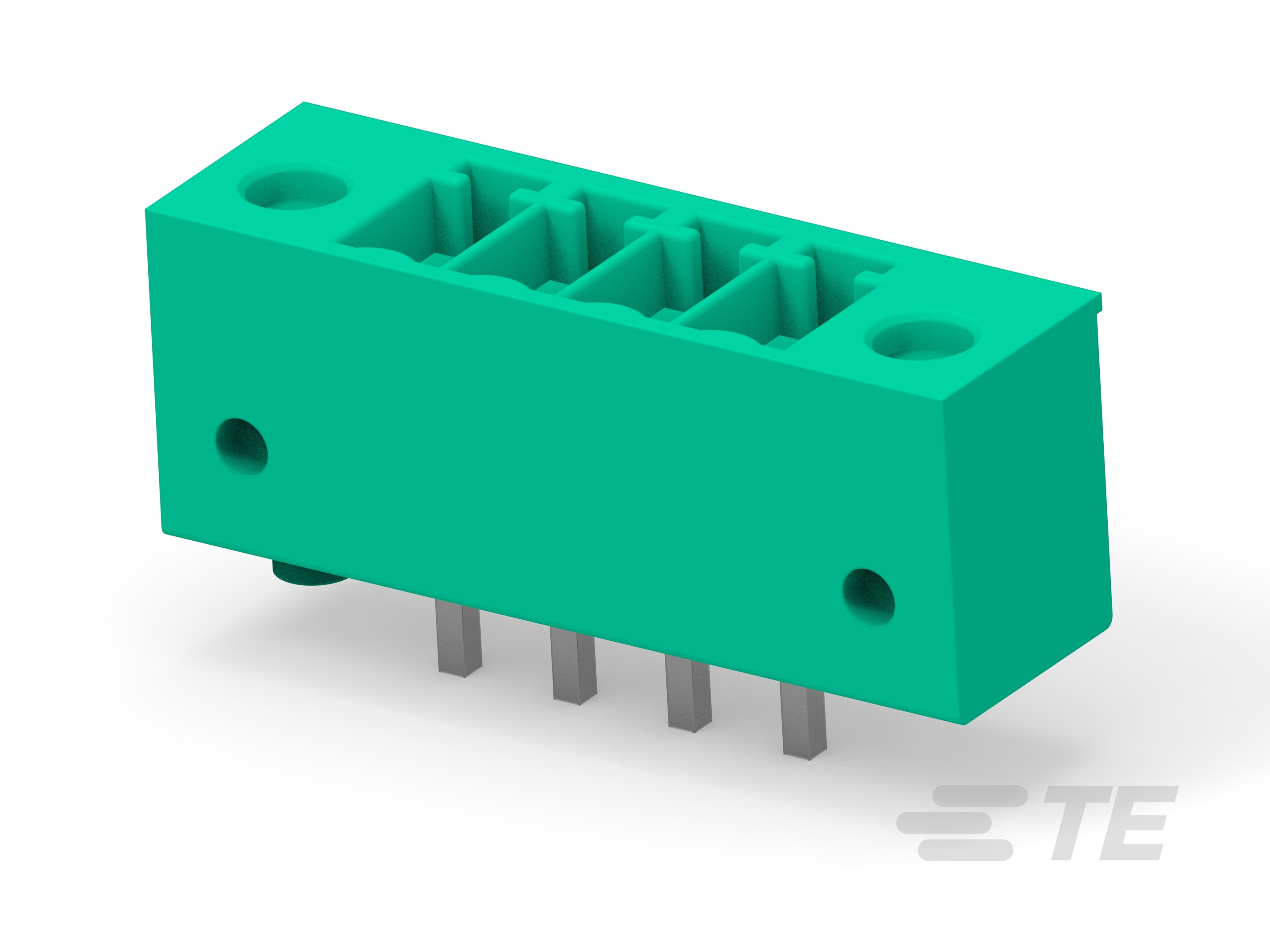

 TE Connectivity AMP Connectors | 4 | Vertical | 0.138 in | Solder | 1 | 4 | -40 °C | 110 °C | Mating and Mounting Flange | Green | Tin | Through Hole | 300 V | 13.5 A | Header Male Pins Shrouded (4 Side) |
 TE Connectivity AMP Connectors | 12 | Vertical | 0.138 in | Solder | 1 | 12 | -40 °C | 110 °C | Mating and Mounting Flange | Green | Tin | Through Hole | 300 V | 13.5 A | Header Male Pins Shrouded (4 Side) |
 TE Connectivity AMP Connectors | 2 | Vertical | 0.138 in | Solder | 1 | 2 | -40 °C | 110 °C | Mating and Mounting Flange | Green | Tin | Through Hole | 300 V | 13.5 A | Header Male Pins Shrouded (4 Side) |
TE Connectivity AMP Connectors | 9 | Vertical | 0.138 in | Solder | 1 | 9 | -40 °C | 110 °C | Mating and Mounting Flange | Green | Tin | Through Hole | 300 V | 13.5 A | Header Male Pins Shrouded (4 Side) |

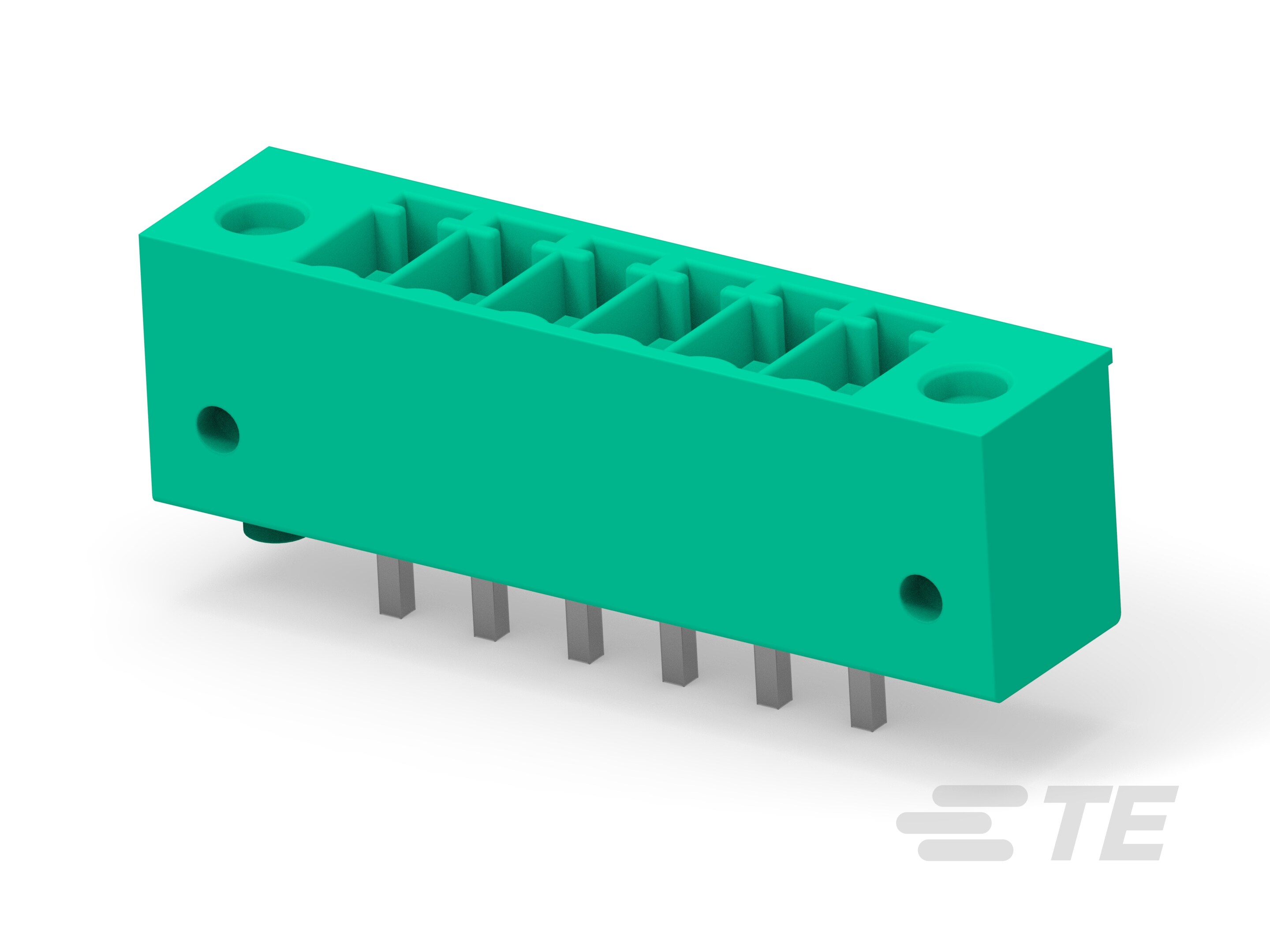

 TE Connectivity AMP Connectors | 6 | Vertical | 0.138 in | Solder | 1 | 6 | -40 °C | 110 °C | Mating and Mounting Flange | Green | Tin | Through Hole | 300 V | 13.5 A | Header Male Pins Shrouded (4 Side) |
