BKT-129 Series

Catalog

CONN HEADER SMD 29POS 1MM

Part	Contact Finish - Mating	Features	Style	Fastening Type	Number of Rows	Connector Type	Contact Finish - Post	Material Flammability Rating	Pitch - Mating	Current Rating (Per Contact)	Contact Type	Number of Positions	Insulation Color	Operating Temperature (Max)	Operating Temperature (Min)	Insulation Height	Contact Material	Contact Shape	Insulation Material	Row Spacing - Mating	Contact Finish Thickness - Mating	Termination	Mounting Type	Shrouding	Number of Positions Loaded	Contact Length - Mating	Mated Stacking Height
Samtec Inc. BKT-129-03-L-V-S-A-P	Gold	Board Guide End Shrouds Pick and Place	Board	Push-Pull	2	Header	Tin	UL94 V-0	0.039 in	2.8 A	Male Pin	29	Black	125 °C	-55 °C	0.188 in	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	0.1 in	10 µin	Solder	Surface Mount	Shrouded - 4 Wall	All	0.065 in	5 mm
Samtec Inc. BKT-129-05-F-V-S	Gold	End Shrouds	Board	Push-Pull	2	Header	Tin	UL94 V-0	0.039 in	2.8 A	Male Pin	29	Black	125 °C	-55 °C	0.267 in	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	0.1 in	3 µin	Solder	Surface Mount	Shrouded - 4 Wall	All	0.065 in	7 mm
Samtec Inc. BKT-129-02-L-V-S-A-P-TR	Gold	Board Guide End Shrouds Pick and Place	Board	Push-Pull	2	Header	Tin	UL94 V-0	0.039 in	2.8 A	Male Pin	29	Black	125 °C	-55 °C	0.168 in	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	0.1 in	10 µin	Solder	Surface Mount	Shrouded - 4 Wall	All	0.065 in	4.5 mm
Samtec Inc. BKT-129-01-F-V-P	Gold	Pick and Place	Board	Push-Pull	2	Header	Tin	UL94 V-0	0.039 in	2.8 A	Male Pin	29	Black	125 °C	-55 °C	0.064 in	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	0.1 in	3 µin	Solder	Surface Mount	Unshrouded	All	0.065 in	4.14 mm
Samtec Inc. BKT-129-05-L-V-S-A-P-TR	Gold	Board Guide End Shrouds Pick and Place	Board	Push-Pull	2	Header	Tin	UL94 V-0	0.039 in	2.8 A	Male Pin	29	Black	125 °C	-55 °C	0.267 in	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	0.1 in	10 µin	Solder	Surface Mount	Shrouded - 4 Wall	All	0.065 in	7 mm

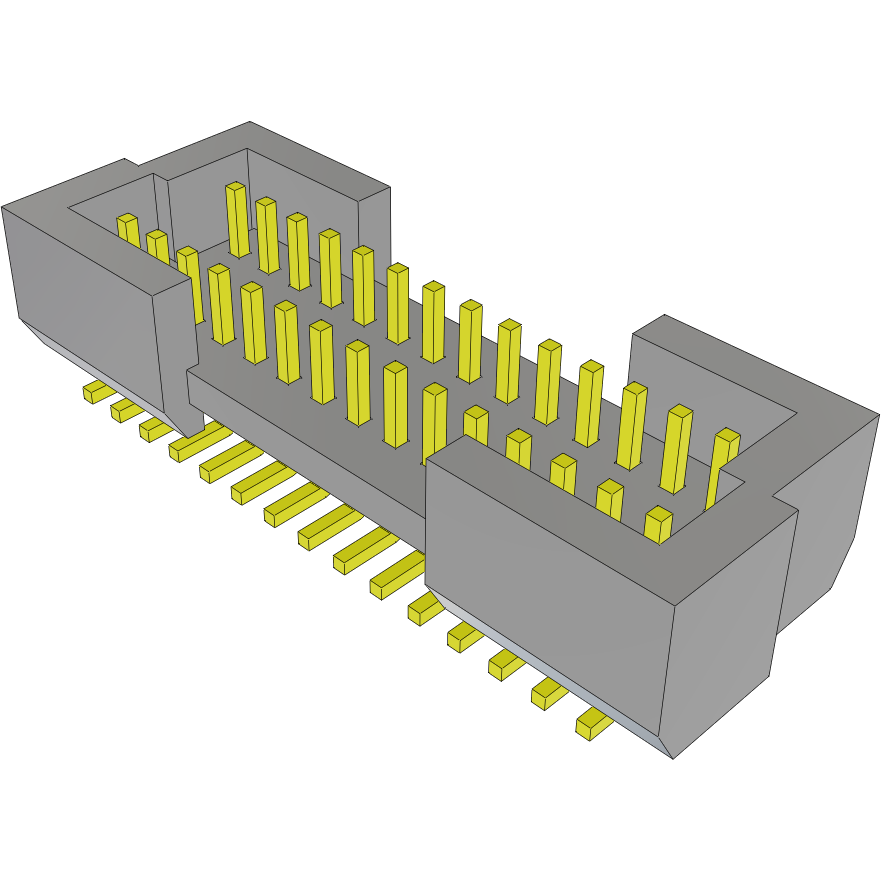

Samtec Inc. BKT-129-02-F-V-S-A	Gold	Board Guide End Shrouds	Board	Push-Pull	2	Header	Tin	UL94 V-0	0.039 in	2.8 A	Male Pin	29	Black	125 °C	-55 °C	0.168 in	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	0.1 in	3 µin	Solder	Surface Mount	Shrouded - 4 Wall	All	0.065 in	4.5 mm
Samtec Inc. BKT-129-01-L-V-S-P	Gold	End Shrouds Pick and Place	Board	Push-Pull	2	Header	Tin	UL94 V-0	0.039 in	2.8 A	Male Pin	29	Black	125 °C	-55 °C	0.154 in	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	0.1 in	10 µin	Solder	Surface Mount	Shrouded - 4 Wall	All	0.065 in	4.14 mm
Samtec Inc. BKT-129-05-F-V-P	Gold	Pick and Place	Board	Push-Pull	2	Header	Tin	UL94 V-0	0.039 in	2.8 A	Male Pin	29	Black	125 °C	-55 °C	0.177 in	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	0.1 in	3 µin	Solder	Surface Mount	Unshrouded	All	0.065 in	7 mm
Samtec Inc. BKT-129-02-F-V-P-TR	Gold	Pick and Place	Board	Push-Pull	2	Header	Tin	UL94 V-0	0.039 in	2.8 A	Male Pin	29	Black	125 °C	-55 °C	0.064 in	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	0.1 in	3 µin	Solder	Surface Mount	Unshrouded	All	0.065 in	4.5 mm
Samtec Inc. BKT-129-03-L-V-S-P-TR	Gold	End Shrouds Pick and Place	Board	Push-Pull	2	Header	Tin	UL94 V-0	0.039 in	2.8 A	Male Pin	29	Black	125 °C	-55 °C	0.188 in	Phosphor Bronze	Square	Liquid Crystal Polymer (LCP)	0.1 in	10 µin	Solder	Surface Mount	Shrouded - 4 Wall	All	0.065 in	5 mm
