MAX14912 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
EVAL FOR MAX14912
| Part | Supplied Contents | Contents | Secondary Attributes | Function | Utilized IC / Part | Primary Attributes | Type | Platform | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Output Configuration | Package / Case | Voltage - Load (Min) | Voltage - Load (Max) | Features | Interface | Input Ratio | Output Ratio | Voltage - Supply (Vcc/Vdd) Maximum | Voltage - Supply (Vcc/Vdd) Minimum | Number of Outputs | Switch Type | Rds On (Typ) | Package Length | Package Name | Package Width | Fault Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Board(s) | Board | On-Board LEDs | High Side Driver (Internal FET) | MAX14912 | 8-Channel (Octal) | Power Management | |||||||||||||||||||||

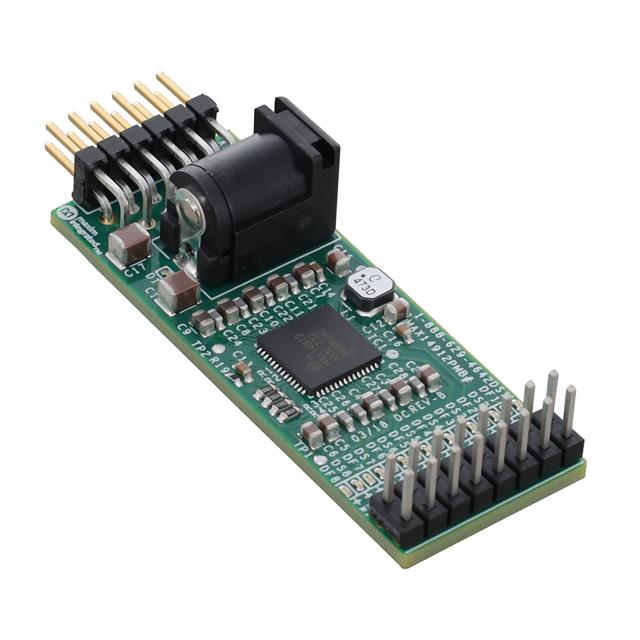

 Analog Devices Inc./Maxim Integrated | Board | Driver | MAX14912 | Power Management | Pmod™ | |||||||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | 125 °C | -40 °C | Surface Mount | High Side | 56-VFQFN Exposed Pad | 10.5 V | 36 V | Status Flag | Parallel SPI | 1 | 8 | 5.5 V | 1.6 V | 8 | General Purpose | 110 mOhm | 8 mm | 56-QFN | 8 mm | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage UVLO | ||||||||
 Analog Devices Inc./Maxim Integrated | 125 °C | -40 °C | Surface Mount | High Side | 56-VFQFN Exposed Pad | 10.5 V | 36 V | Status Flag | Parallel SPI | 1 | 8 | 5.5 V | 1.6 V | 8 | General Purpose | 110 mOhm | 8 mm | 56-QFN | 8 mm | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage UVLO |
