TJ16 Series

Catalog

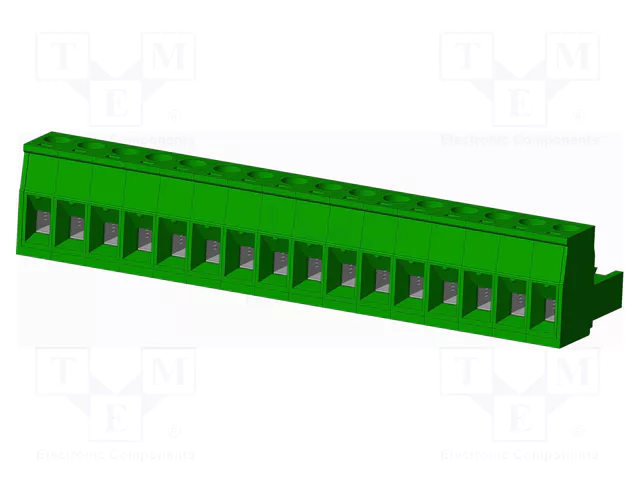

CONNECTOR: PLUGGABLE TERMINAL BLOCK; PLUG; FEMALE; 12A; 300V; 1X16

Part	Voltage - IEC	Current - IEC	Plug Wire Entry Angle	Number of Levels	Contact Mating Finish	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Color	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Positions Per Level	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Features	Pitch	Number of Positions	Voltage - UL	Current - UL	Mounting Type	Type	Contact Material	Material Flammability Rating	Screw Size	Wire Strip Length (Max)	Wire Strip Length (Min)	Insulation Height	Torque - Screw	Housing Material	Wire Gauge or Range - mm²
McGill Microwave Systems TJ1651530000G	300 V	20 A	180 °	1	Tin	-40 °C	115 °C	Screw	Green	2.5 mm²	0.34 mm²	16	24 AWG	12 AWG	Retention Latches (Non-Wire Side)	5.08 mm	16	300 V	20 A	Free Hanging (In-Line)	Female Sockets Plug	Copper	UL94 V-0	M3	8 mm	7 mm	0.594 in	0.56 Nm	Thermoplastic
McGill Microwave Systems TJ1611820000G	300 V	10.5 A	180 °	1	Tin	-40 °C	115 °C	Screw	Gray			16	28 AWG	16 AWG	Mating Flange	0.138 in	16	300 V	10 A	Free Hanging (In-Line)	Female Sockets Plug	Phosphor Bronze	UL94 V-0	M2	7 mm	6 mm	0.437 in		Thermoplastic	1.5 mm²
McGill Microwave Systems TJ1671500000G	300 V	20 A	180 °	1	Tin	-40 °C	115 °C	Screw	Green	2.5 mm²	0.34 mm²	16	24 AWG	12 AWG	Retention Latches (Non-Wire Side)	0.197 in	16	300 V	20 A	Free Hanging (In-Line)	Female Sockets Plug	Copper	UL94 V-0	M3	8 mm	7 mm	0.594 in	0.56 Nm	Thermoplastic
McGill Microwave Systems TJ1651040000G	300 V	20 A	180 °	1	Tin	-40 °C	115 °C	Screw	Black	2.5 mm²	0.34 mm²	16	24 AWG	12 AWG	Retention Latches (Non-Wire Side) Strain Relief	5.08 mm	16	300 V	20 A	Free Hanging (In-Line)	Female Sockets Plug	Copper	UL94 V-0	M3	8 mm	7 mm		0.56 Nm	Thermoplastic
McGill Microwave Systems TJ1651830000G	300 V	20 A	180 °	1	Tin	-40 °C	115 °C	Screw	Gray	2.5 mm²	0.34 mm²	16	24 AWG	12 AWG	Retention Latches (Non-Wire Side)	5.08 mm	16	300 V	20 A	Free Hanging (In-Line)	Female Sockets Plug	Copper	UL94 V-0	M3	8 mm	7 mm	0.594 in	0.56 Nm	Thermoplastic

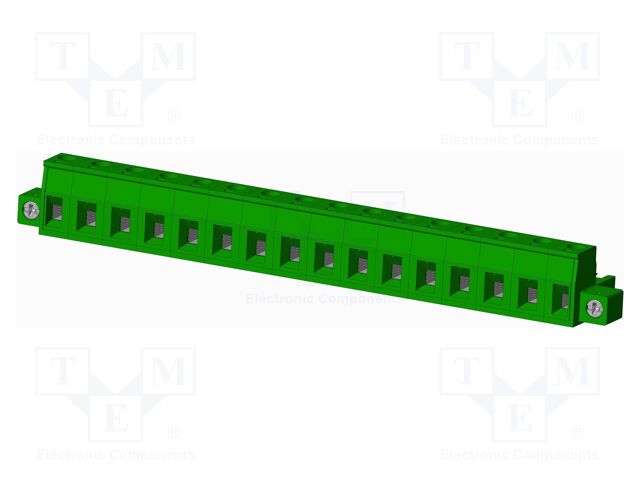

McGill Microwave Systems TJ1651520000G	300 V	20 A	180 °	1	Tin	-40 °C	115 °C	Screw	Green	2.5 mm²	0.34 mm²	16	24 AWG	12 AWG	Mating Flange Retention Latches (Non-Wire Side)	5.08 mm	16	300 V	20 A	Free Hanging (In-Line)	Female Sockets Plug	Copper	UL94 V-0	M3	8 mm	7 mm	0.594 in	0.56 Nm	Thermoplastic
McGill Microwave Systems TJ1611530700G
McGill Microwave Systems TJ1601520000G			180 °	1	Tin	-40 °C	115 °C	Screw	Green			16	24 AWG	12 AWG	Mating Flange Retention Latches (Non-Wire Side)	0.3 in	16	300 V	20 A	Free Hanging (In-Line)	Female Sockets Plug	Phosphor Bronze	UL94 V-0	M3	8 mm	7 mm	0.594 in	0.56 Nm	Thermoplastic
McGill Microwave Systems TJ1601820000G			180 °	1	Tin	-40 °C	115 °C	Screw	Gray			16	24 AWG	12 AWG	Mating Flange Retention Latches (Non-Wire Side)	0.3 in	16	300 V	20 A	Free Hanging (In-Line)	Female Sockets Plug	Phosphor Bronze	UL94 V-0	M3	8 mm	7 mm	0.594 in	0.56 Nm	Thermoplastic
McGill Microwave Systems TJ1651570000G			180 °	1	Tin	-40 °C	115 °C	Screw	Green			16	24 AWG	12 AWG	Mating Flange Retention Latches (Non-Wire Side)	5.08 mm	16	300 V	20 A	Free Hanging (In-Line)	Female Sockets Plug	Copper	UL94 V-0	M3	8 mm	7 mm	0.594 in	0.56 Nm	Thermoplastic
