43-0264 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

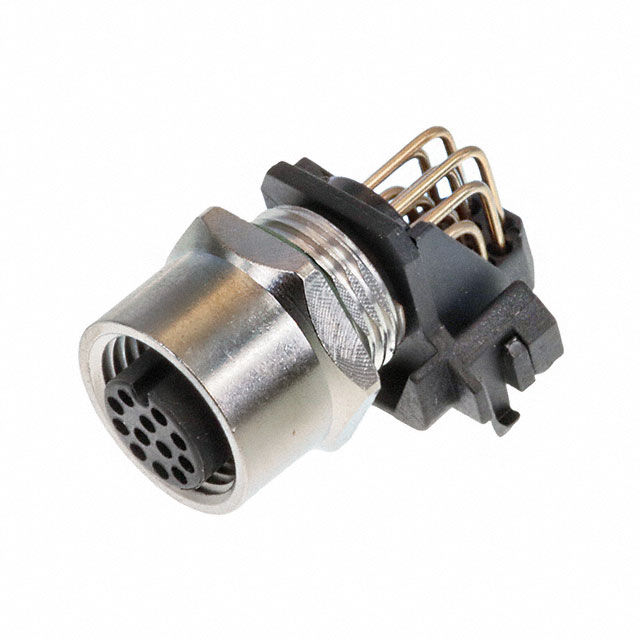

SENSOR CONN, M12, R/A RCPT, 12POS, PANEL ROHS COMPLIANT: YES
| Part | Shell Size - Insert | Connector Type | Features | Insert Material | Primary Material | Material Flammability Rating | Contact Material | Fastening Type | Voltage Rating | Shell Finish | Color | Mounting Type | Contact Finish - Mating | Shielding | Operating Temperature (Max) | Operating Temperature (Min) | Termination | Mounting Feature | Number of Positions | Shell Material | Orientation | Current Rating | Ingress Protection Description | Ingress Protection IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | M12-12 | Female Sockets Plug | Board Guide Board Lock | Nylon PA Polyamide | Metal | UL94 V-0 | Copper Zinc | Threaded | 30 V | Nickel | Silver | Panel Mount Right Angle Through Hole | Gold | Shielded | 85 °C | -30 °C | Solder | Bulkhead | 12 | Copper Zinc | A | 1.5 A | Dust Tight Waterproof | IP67 |
 McGill Microwave Systems | M12-12 | Female Sockets Plug | Board Guide Board Lock | Nylon PA Polyamide | Metal | UL94 V-0 | Copper Zinc | Threaded | 30 V | Nickel | Silver | Panel Mount Right Angle Through Hole | Gold | Unshielded | 85 °C | -30 °C | Solder | Bulkhead | 12 | Copper Zinc | A | 1.5 A | Dust Tight Waterproof | IP67 |
