368589 Series

Catalog

PDL 4P CAP 3.96 D/R P/M(GWT) Y

Part	Note	Operating Temperature (Max)	Operating Temperature (Min)	Row Spacing	Number of Rows	Connector Type	Pitch	Insulation Material	Mounting Type	Fastening Type	Contact Termination	Number of Positions	Color	Contact Type	Features
TE Connectivity AMP Connectors 1-368589-4	Contacts Not Included
TE Connectivity AMP Connectors 1-368589-1	Contacts Not Included	65 °C	-30 °C	0.181 in	2	Receptacle	0.156 in	Nylon 6/6 Polyamide (PA66)	Panel Mount	Latch Lock	Crimp	4	Natural	Female Socket

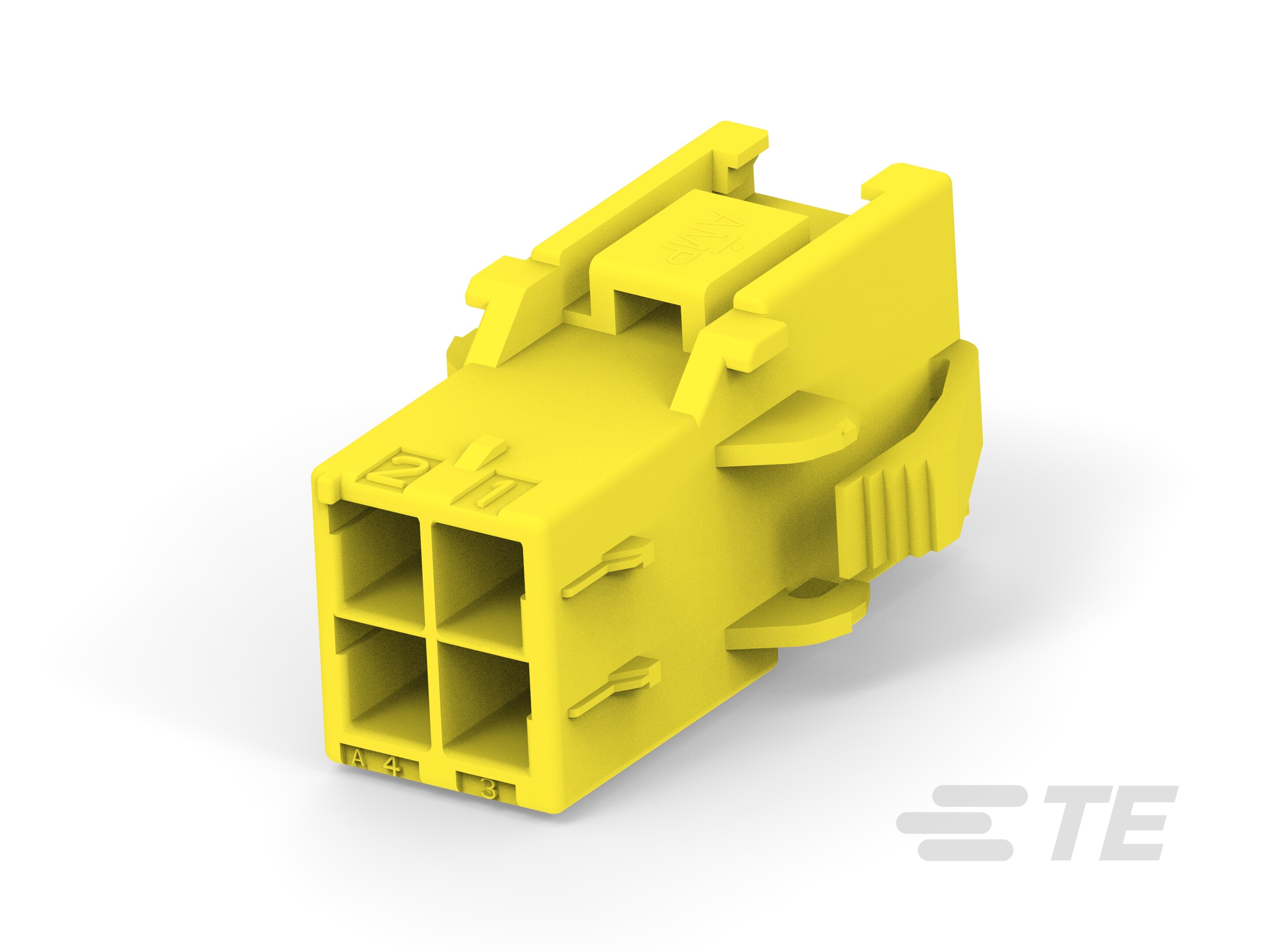

TE Connectivity AMP Connectors 368589-4	Contacts Not Included	65 °C	-30 °C	0.181 in	2	Receptacle	0.156 in	Nylon 6/6 Polyamide (PA66)	Through Hole	Latch Holder	Crimp	4	Yellow	Male Pin

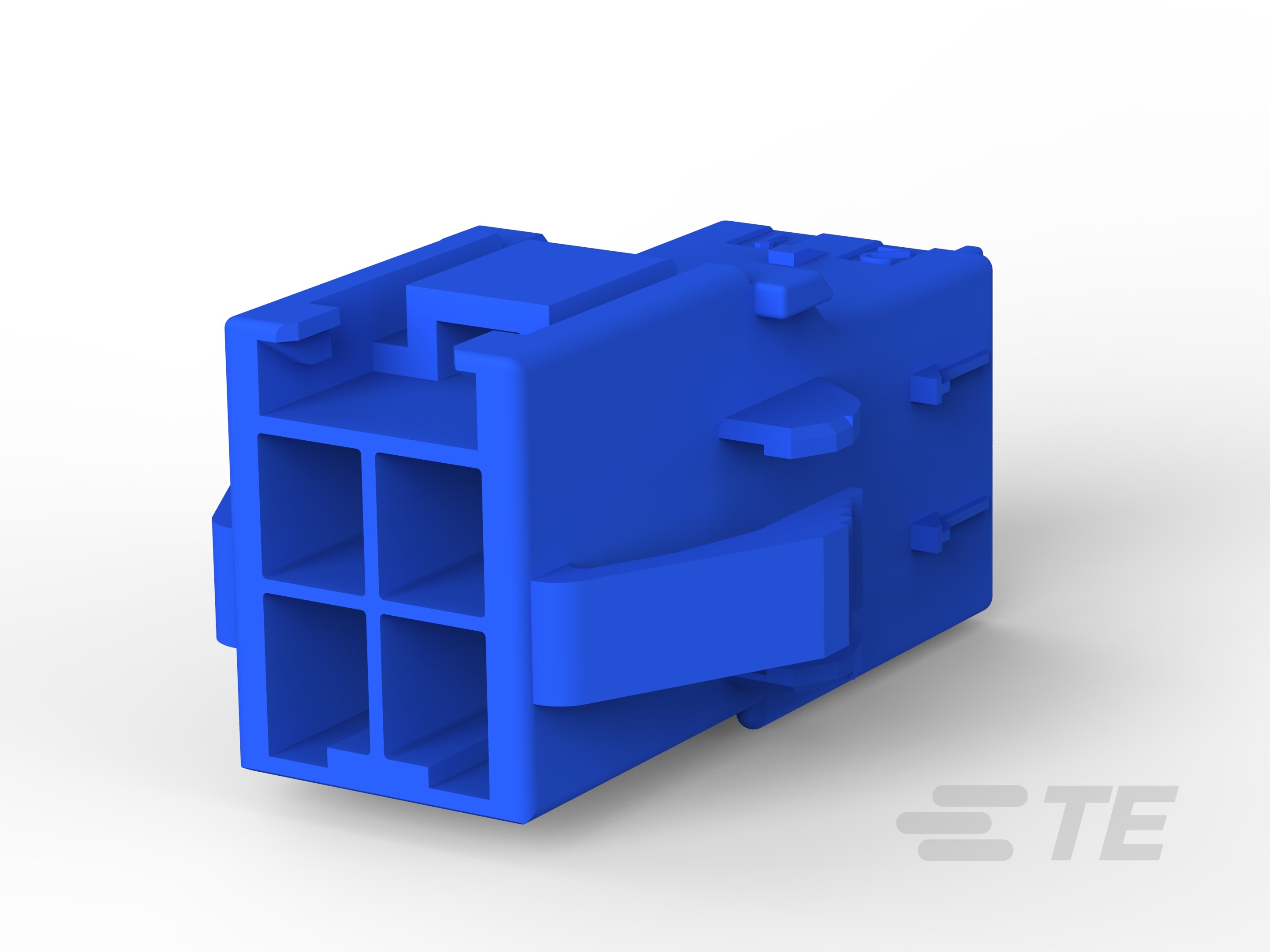

TE Connectivity AMP Connectors 1-368589-6		105 °C	-30 °C	0.181 in	2	Receptacle	0.156 in	Nylon 6/6 Polyamide (PA66)	Panel Mount Snap-In	Locking Ramp	Crimp	4	Blue	Tab	Glow Wire Compliant
