MAX11168 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
16-BIT, 500KSPS, ±5V SAR ADC WITH INTERNAL REFERENCE IN ΜMAX
| Part | Number of Bits | Voltage - Supply, Digital (Max) | Voltage - Supply, Digital (Min) | Data Interface | Configuration | Mounting Type | Input Type | Sampling Rate (Per Second) | Package Name | Package Length | Package Width | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Supply, Analog | Architecture | Ratio - ADC | Ratio - S/H | Reference Type | Number of A/D Converters | Number of Inputs | Supplied Contents | Contents | Power (Typ) | Input Range | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 16 bits | 5 V | 2.3 V | DSP SPI | S/H-ADC | Surface Mount | Pseudo-Differential | 500 kHz | 10-MSOP 10-TFSOP 10-uMAX/uSOP | 0.118 in | 3 mm | -40 °C | 85 °C | 5 V | SAR | 1 | 1 | Internal | 1 count | 1 | |||||

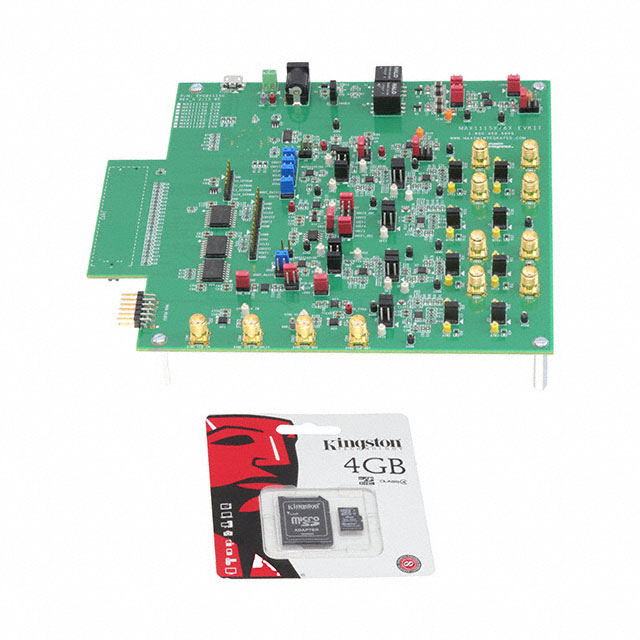

 Analog Devices Inc./Maxim Integrated | 16 bits | SPI | 500 kHz | 1 count | Board(s) | Board | 37.6 mW | ±VREF | MAX11168 | ||||||||||||||||
Analog Devices Inc./Maxim Integrated | 16 bits | 5 V | 2.3 V | DSP SPI | S/H-ADC | Surface Mount | Pseudo-Differential | 500 kHz | 10-MSOP 10-TFSOP 10-uMAX/uSOP | 0.118 in | 3 mm | -40 °C | 85 °C | 5 V | SAR | 1 | 1 | Internal | 1 count | 1 |
