MA1CAP Series

Catalog

CONN PLUG MALE 12POS GOLD CRIMP

Part	Shell Size - Insert	Shell Material	Voltage Rating	Termination	Color	Shell Finish	Primary Material	Current Rating	Contact Finish - Mating	Connector Type	Number of Positions	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Orientation	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Shielding	Material Flammability Rating	Contact Type	Features	Housing Color	Contact Size	Type	Contact Shape	Insert Material	Note	Voltage Rating (Type)
McGill Microwave Systems MA1CAP1200M-KIT	M23-12	Zinc Die Cast	160 V	Crimp	Silver	Nickel	Metal	10 A	Gold	Male Pins Plug	12	Dust Tight Waterproof	IP67	Threaded	P	-20 °C	130 °C	Free Hanging (In-Line)	Shielded
McGill Microwave Systems MA1CAP1700	M23-17	Zinc Die Cast				Nickel				Plug Housing	17	Dust Tight Waterproof	IP67	Threaded	P	-20 °C	130 °C	Free Hanging (In-Line)	Shielded	UL94 V-0	Crimp	Coupling Nut	Silver	1 mm	For Female Sockets or Male Pins	Circular	Nylon 6/6 PA66 Polyamide	Contacts Not Included

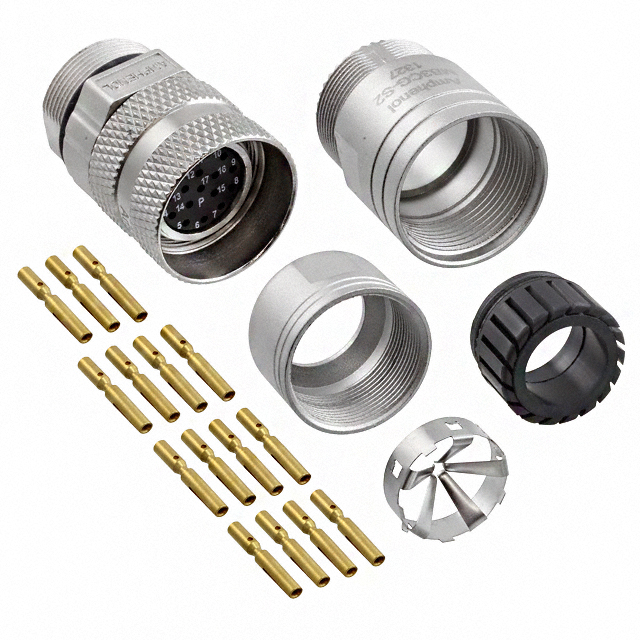

McGill Microwave Systems MA1CAP1700-KIT	M23-17	Zinc Die Cast	125 V	Crimp	Silver	Nickel	Metal	9 A	Gold	Female Sockets Plug	17	Dust Tight Waterproof	IP67	Threaded	P	-20 °C	130 °C	Free Hanging (In-Line)	Shielded										DC

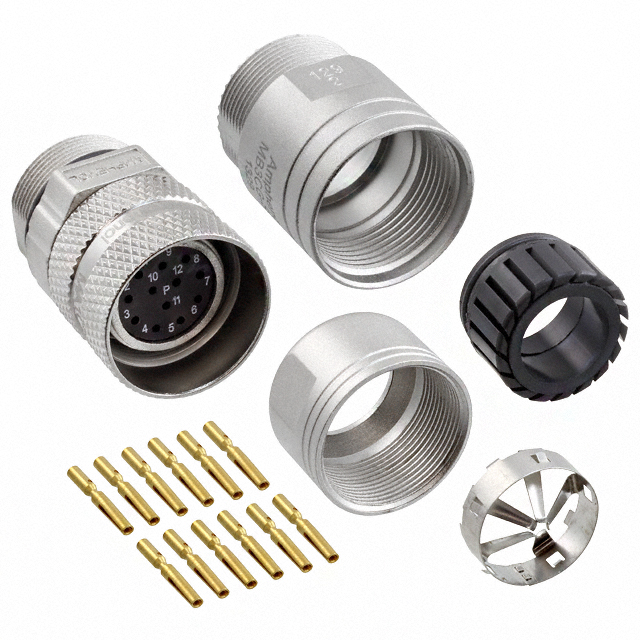

McGill Microwave Systems MA1CAP1200-KIT	M23-12	Zinc Die Cast	160 V	Crimp	Silver	Nickel	Metal	10 A	Gold	Female Sockets Plug	12	Dust Tight Waterproof	IP67	Threaded	P	-20 °C	130 °C	Free Hanging (In-Line)	Shielded
McGill Microwave Systems MA1CAP1700M-KIT	M23-17	Zinc Die Cast	125 V	Crimp	Silver	Nickel	Metal	9 A	Gold	Male Pins Plug	17	Dust Tight Waterproof	IP67	Threaded	P	-20 °C	130 °C	Free Hanging (In-Line)	Shielded										DC
