RJFTV6 Series

Catalog

CONN MOD PLUG HSG RJ45 GREEN

Part	Operating Temperature (Min)	Operating Temperature (Max)	Note	Mating Cycles	Features	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Shielding	Color	Mounting Type	Connector Type	Type	Mounting Feature	Convert From (Adapter End)	Convert To (Adapter End)	Ratings	Shell Material	Finish	Orientation	Number of Ports	LED Color	Number of Rows	Tab Direction	Termination	Number of Positions	Number of Contacts
McGill Microwave Systems RJFTV6G	-40 °C	85 °C	Plug Not Provided	500 cycles	Shock Resistant Toolless Vibration Resistant	Dust Tight Waterproof	IP67	Threaded	Unshielded	Green	Free Hanging (In-Line)	Housing for Prewired RJ45 Cordset

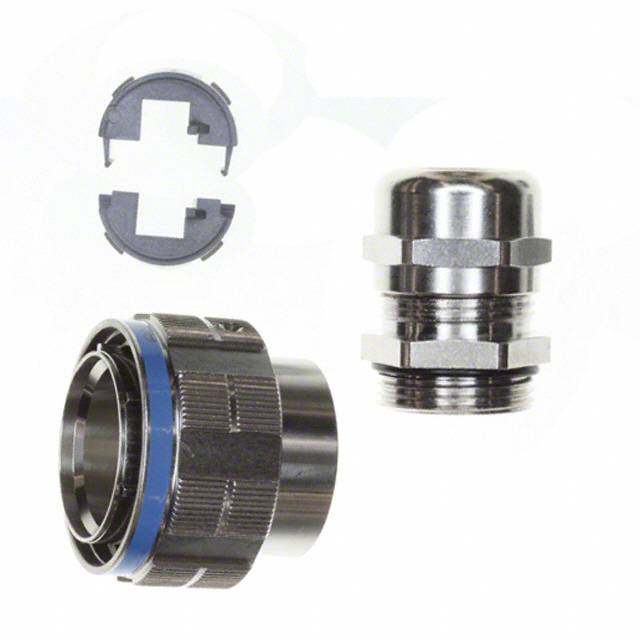

McGill Microwave Systems RJFTV6MN	-40 °C	85 °C	Plug Not Provided	500 cycles	Shock Resistant Toolless Vibration Resistant	Dust Tight Waterproof	IP67	Threaded	Unshielded	Silver	Free Hanging (In-Line)	Housing for Prewired RJ45 Cordset

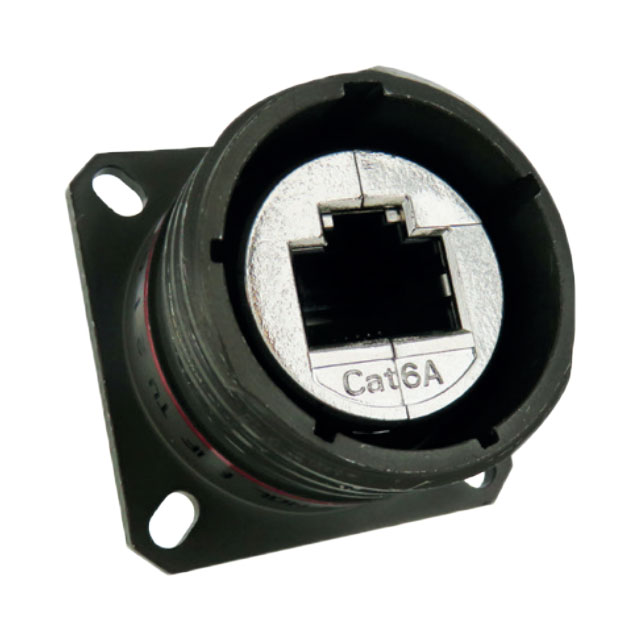

McGill Microwave Systems RJFTV6A7SA1G	-40 °C	85 °C				Dust Tight Waterproof	IP68		Shielded		Bulkhead Panel Mount		Coupler	Front Side Nut	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Cat6a	Aluminum	Olive Drab Cadmium Plated
McGill Microwave Systems RJFTV6B7GISONI						Dust Tight Waterproof	IP68		Unshielded		Panel Mount Square Flange	Ethernet Jack RJ45					Cat5e			Straight	1	Does Not Contain LED	1	User Selectable	Solder	8	8
McGill Microwave Systems RJFTV67CPEM1G					Circular Bayonet Coupling	Dust Tight Waterproof	IP68		Unshielded		Bulkhead Panel Mount		Coupler	Front Side Nut	8p8c (RJ45) Jack	8p8c (RJ45) Jack	Cat6a
McGill Microwave Systems RJFTV6A7A1G	-40 °C	85 °C				Dust Tight Waterproof	IP68		Shielded		Bulkhead Panel Mount		Coupler		8p8c (RJ45) Jack	8p8c (RJ45) Jack	Cat6a	Aluminum	Olive Drab Cadmium Plated
McGill Microwave Systems RJFTV6A7A1GF312	-40 °C	85 °C				Dust Tight Waterproof	IP68		Shielded		Bulkhead Panel Mount		Coupler		8p8c (RJ45) Jack	8p8c (RJ45) Jack	Cat6a	Aluminum	Olive Drab Cadmium Plated

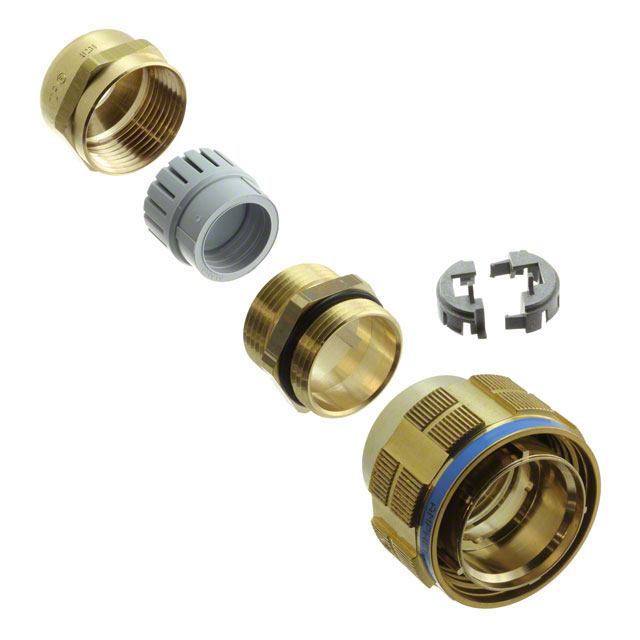

McGill Microwave Systems RJFTV6MBZ	-40 °C	85 °C	Plug Not Provided	500 cycles	Shock Resistant Toolless Vibration Resistant	Dust Tight Waterproof	IP67	Bayonet Lock	Unshielded		Free Hanging (In-Line)	Housing for Prewired RJ45 Cordset

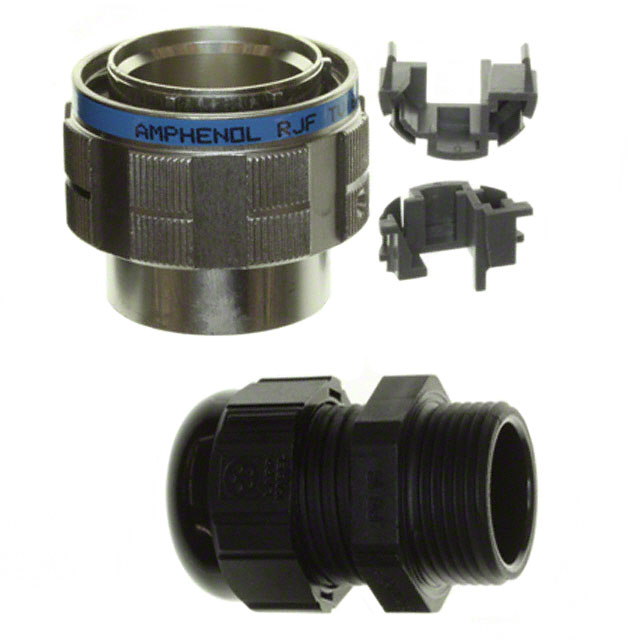

McGill Microwave Systems RJFTV6N	-40 °C	85 °C	Plug Not Provided	500 cycles	Shock Resistant Toolless Vibration Resistant	Dust Tight Waterproof	IP67	Threaded	Unshielded	Silver	Free Hanging (In-Line)	Housing for Prewired RJ45 Cordset
McGill Microwave Systems RJFTV6A7SA1NF312	-40 °C	85 °C				Dust Tight Waterproof	IP68		Shielded		Bulkhead Panel Mount		Coupler		8p8c (RJ45) Jack	8p8c (RJ45) Jack	Cat6a	Aluminum	Nickel Plated
