Q-0B00Y0 Series

Catalog

CBL ASSY BNC-HDBNC JACK-PLUG 24"

Part	Overall Impedance	1st Contact Gender	Features	Frequency - Max	1st Connector	2nd Contact Gender	Cable Type	2nd Connector Mounting Type	2nd Connector	Length	1st Connector Mounting Type	Style	Color	Length (ft)

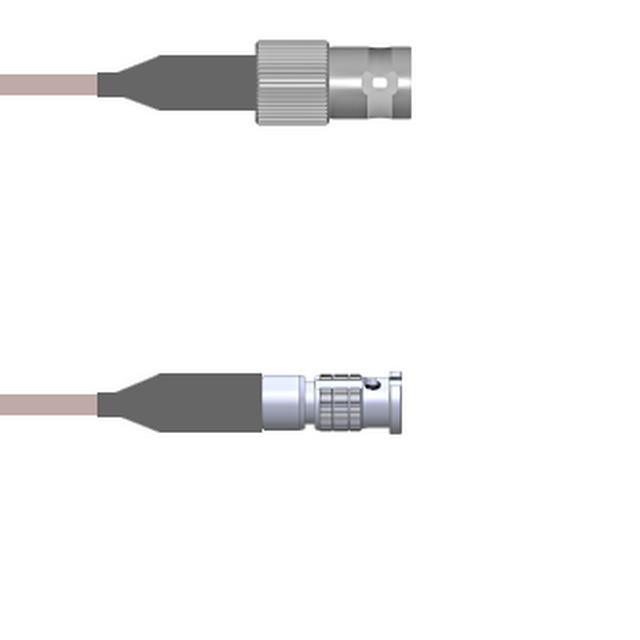

McGill Microwave Systems Q-0B00Y000H024i	50 Ohms	Female	Shielded	4 GHz	BNC Jack	Male	142 RG	Free Hanging (In-Line)	HD-BNC Plug	24 in	Free Hanging (In-Line)	BNC HD-BNC	Copper
McGill Microwave Systems Q-0B00Y000H001M	50 Ohms	Female	Shielded	4 GHz	BNC Jack	Male	142 RG	Free Hanging (In-Line)	HD-BNC Plug	39.4 in	Free Hanging (In-Line)	BNC HD-BNC	Copper
McGill Microwave Systems Q-0B00Y000H002M	50 Ohms	Female	Shielded	4 GHz	BNC Jack	Male	142 RG	Free Hanging (In-Line)	HD-BNC Plug		Free Hanging (In-Line)	BNC HD-BNC	Copper	6.6 ft
McGill Microwave Systems Q-0B00Y000H108i	50 Ohms	Female	Shielded	4 GHz	BNC Jack	Male	142 RG	Free Hanging (In-Line)	HD-BNC Plug	9 ft	Free Hanging (In-Line)	BNC HD-BNC	Copper
McGill Microwave Systems Q-0B00Y000H.25M	50 Ohms	Female	Shielded	4 GHz	BNC Jack	Male	142 RG	Free Hanging (In-Line)	HD-BNC Plug	9.843 in	Free Hanging (In-Line)	BNC HD-BNC	Copper
McGill Microwave Systems Q-0B00Y000H036i	50 Ohms	Female	Shielded	4 GHz	BNC Jack	Male	142 RG	Free Hanging (In-Line)	HD-BNC Plug	36 in	Free Hanging (In-Line)	BNC HD-BNC	Copper
McGill Microwave Systems Q-0B00Y000H018i	50 Ohms	Female	Shielded	4 GHz	BNC Jack	Male	142 RG	Free Hanging (In-Line)	HD-BNC Plug	18 in	Free Hanging (In-Line)	BNC HD-BNC	Copper
McGill Microwave Systems Q-0B00Y000H009i	50 Ohms	Female	Shielded	4 GHz	BNC Jack	Male	142 RG	Free Hanging (In-Line)	HD-BNC Plug	228.6 mm	Free Hanging (In-Line)	BNC HD-BNC	Copper
McGill Microwave Systems Q-0B00Y000H003M	50 Ohms	Female	Shielded	4 GHz	BNC Jack	Male	142 RG	Free Hanging (In-Line)	HD-BNC Plug	118.1 in	Free Hanging (In-Line)	BNC HD-BNC	Copper
McGill Microwave Systems Q-0B00Y000H2.5M	50 Ohms	Female	Shielded	4 GHz	BNC Jack	Male	142 RG	Free Hanging (In-Line)	HD-BNC Plug	98.4 in	Free Hanging (In-Line)	BNC HD-BNC	Copper	8.2 ft
