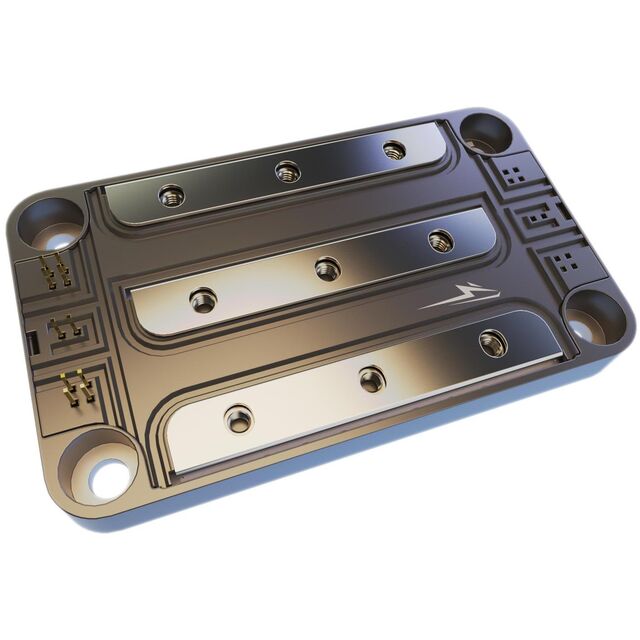

CAS380 Series
Manufacturer: Wolfspeed, Inc.
Beta
⌘K
SIC 2N-CH 1700V 532A MODULE
| Part | Package / Case | Drain to Source Voltage (Vdss) | Package Name | Vgs(th) (Max) | Rds On (Max) | Current - Continuous Drain (Id) (Tc) | Gate Charge (Max) | Channel Count | Configuration | Configuration - Features | Input Capacitance (Ciss) (Max) | Mounting Type | Technology | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Wolfspeed, Inc. | Module | 1700 V | Module | 3.6 V | 3.74 mOhm | 532 A | 1494 nC | 2 | N-Channel | Dual | 4700 pF | Chassis Mount | Silicon Carbide (SiC) | 175 °C | -40 °C |
