CMU2239 Series

Catalog

XLAMP CMU LIGHT EMITTING DIODE WHITE

...

Part	Current - Test	Height	Luminous Flux (Typical)	CCT (K)	CCT Description	Viewing Angle	Configuration	Lumens/Watt	Light Emitting Surface (LES) Diameter	Type	Current - Max	Size / Dimension Length	Size / Dimension Width	Lens Type	CRI (Color Rendering Index)	Color	Temperature - Test	Voltage - Forward (Vf) (Typ)
CreeLED, Inc. CMU2239-0000-000N0H0A35G	1.08 A	1.5 mm	6015 lm	3500 K	3-Step MacAdam Ellipse	115 °	Square	165 lm/W	22 mm	Chip On Board (COB)	2.88 A	28 mm	28 mm	Flat	80	Warm White	85 °C	33.7 V
CreeLED, Inc. CMU2239-0000-000N0H0A40G	1.08 A	1.5 mm	6060 lm	4000 K	3-Step MacAdam Ellipse	115 °	Square	167 lm/W	22 mm	Chip On Board (COB)	2.88 A	28 mm	28 mm	Flat	80	Neutral White	85 °C	33.7 V
CreeLED, Inc. CMU2239-0000-000N0U0A27G	1.08 A	1.5 mm	4939 lm	2700 K	3-Step MacAdam Ellipse	115 °	Square	136 lm/W	22 mm	Chip On Board (COB)	2.88 A	28 mm	28 mm	Flat	90	Warm White	85 °C	33.7 V
CreeLED, Inc. CMU2239-R040-000N0B0A30E	1.08 A	1.5 mm	6648 lm	3000 K	5-Step MacAdam Ellipse	115 °	Square	183 lm/W	22 mm	Chip On Board (COB)	2.88 A	28 mm	28 mm	Flat	70	Warm White	85 °C	33.7 V
CreeLED, Inc. CMU2239-R040-000N0U0A30H	1.08 A	1.5 mm	5321 lm	3000 K	2-Step MacAdam Ellipse	115 °	Square	146 lm/W	22 mm	Chip On Board (COB)	2.88 A	28 mm	28 mm	Flat	90	Warm White	85 °C	33.7 V
CreeLED, Inc. CMU2239-R040-000N0Z0AL7C	1.08 A	1.5 mm	4401 lm	3000 K	2-Step MacAdam Ellipse	115 °	Square	121 lm/W	22 mm	Chip On Board (COB)	2.88 A	28 mm	28 mm	Flat	95	Warm White	85 °C	33.7 V
CreeLED, Inc. CMU2239-R040-000N0U0A30Q	1.08 A	1.5 mm	5214 lm	3000 K	3-Step MacAdam Ellipse	115 °	Square	143 lm/W	22 mm	Chip On Board (COB)	2.88 A	28 mm	28 mm	Flat	90	Warm White	85 °C	33.7 V
CreeLED, Inc. CMU2239-R040-000N0H0A57G	1.08 A	1.5 mm	6352 lm	5000 K	3-Step MacAdam Ellipse	115 °	Square	175 lm/W	22 mm	Chip On Board (COB)	2.88 A	28 mm	28 mm	Flat	80	Cool White	85 °C	33.7 V

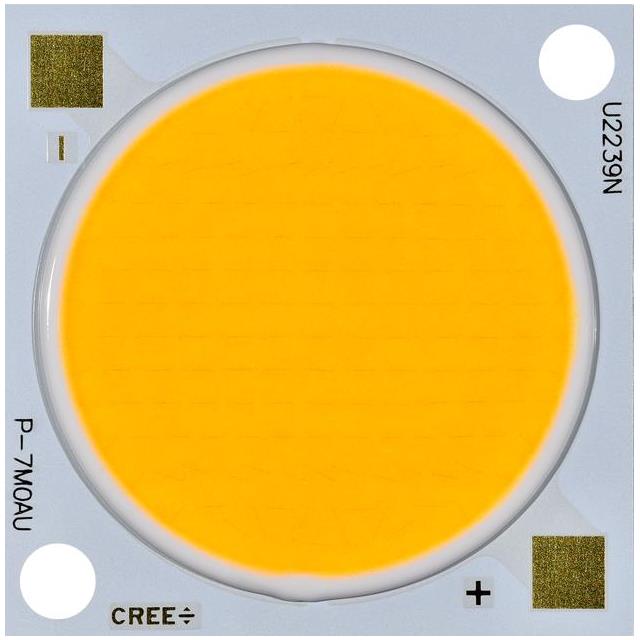

CreeLED, Inc. CMU2239-R040-00PN0U0A27G	1.08 A	1.5 mm		2700 K		115 °	Square		22 mm	Chip On Board (COB)	2.88 A	28 mm	28 mm	Flat	90	Warm White	85 °C	33.7 V
CreeLED, Inc. CMU2239-0000-000N0U0A27H	1.08 A	1.5 mm	4939 lm	2700 K	2-Step MacAdam Ellipse	115 °	Square	136 lm/W	22 mm	Chip On Board (COB)	2.88 A	28 mm	28 mm	Flat	90	Warm White	85 °C	33.7 V
