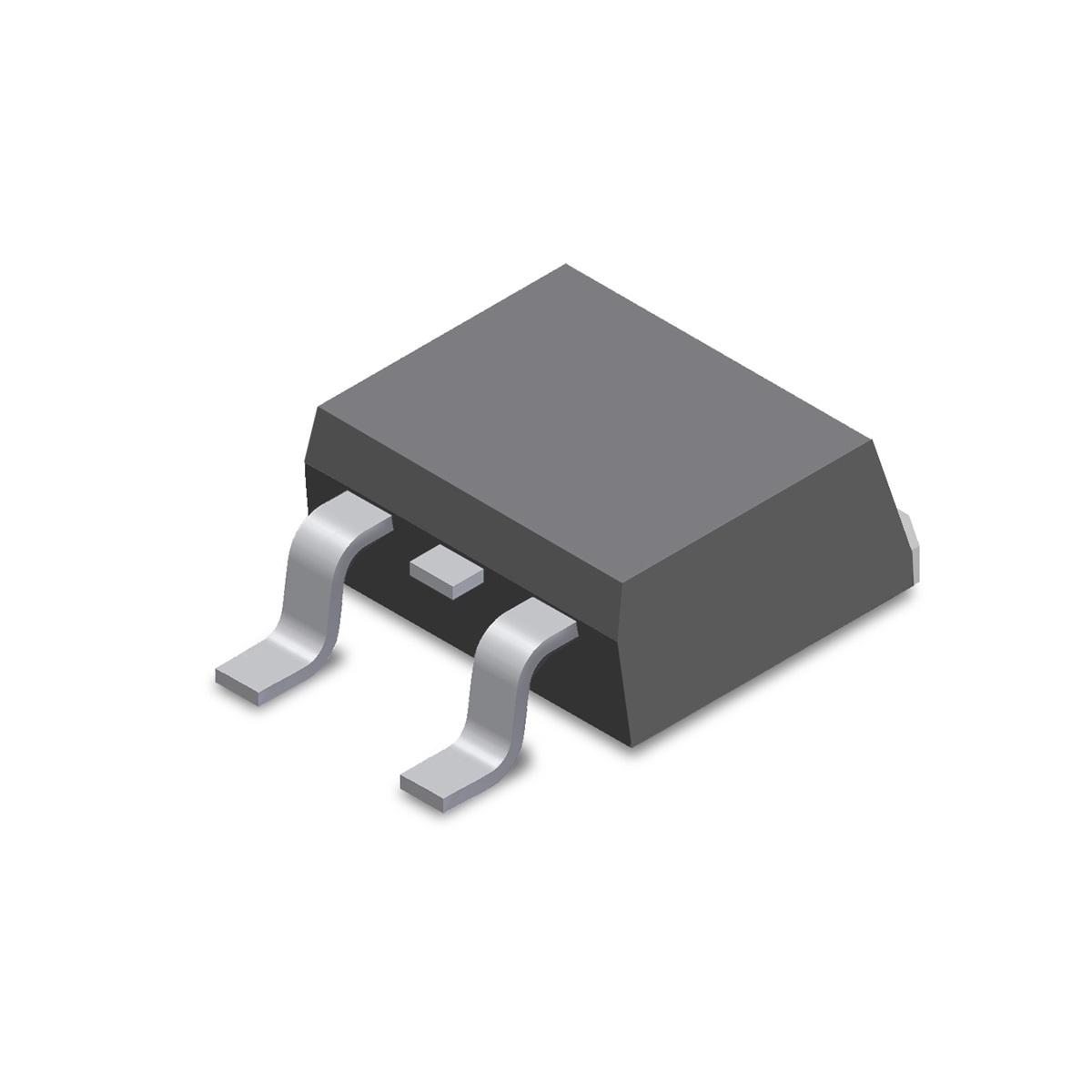

IXFA36N60X3 Series

Discrete MOSFET 36A 600V X3 TO263

Catalog

Discrete MOSFET 36A 600V X3 TO263

Part	Package Name	Gate Charge (Max)	Current - Continuous Drain (Id) (Tc)	Vgs (Max)	Power Dissipation (Max)	Package / Case	Input Capacitance (Ciss) (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Rds On (Max)	Technology	Drain to Source Voltage (Vdss)	FET Type	Vgs(th) (Max)	Mounting Type	Drive Voltage (Max Rds On, Min Rds On)
LITTELFUSE IXFA36N60X3	TO-263AA (IXFA)	29 nC	36 A	20 V	446 W	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	2030 pF	-55 °C	150 °C	90 mOhm	MOSFET (Metal Oxide)	600 V	N-Channel	5 V	Surface Mount	10 V

Catalog

Discrete MOSFET 36A 600V X3 TO263

Description

The 600V X3-Class Ultra Junction MOSFET IXFA36N60X3 is available in 36A nominal current rating and TO-263(D2PAK) package. These Power MOSFETs feature significantly reduced channel resistance RDS(on) and gate charge Qg. They feature the lowest figures of merit (FOM) RDS(on)xQg and RDS(on)xRthJC. These benefits enable designers to achieve higher efficiency using simplified thermal design. This HiPerFET™ series of power MOSFETs feature body diodes which offer low reverse recovery charge (QRM) and short reverse recovery time (trr).
