641239 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 1 ROW, 5 CONTACTS, CABLE MOUNT

Part	Wire Type	Cable Termination	Number of Rows	Contact Type	Connector Type	Contact Finish	Features	Fastening Type	Number of Positions	Wire Gauge	Color	Mounting Type	Pitch	Contact Finish Thickness

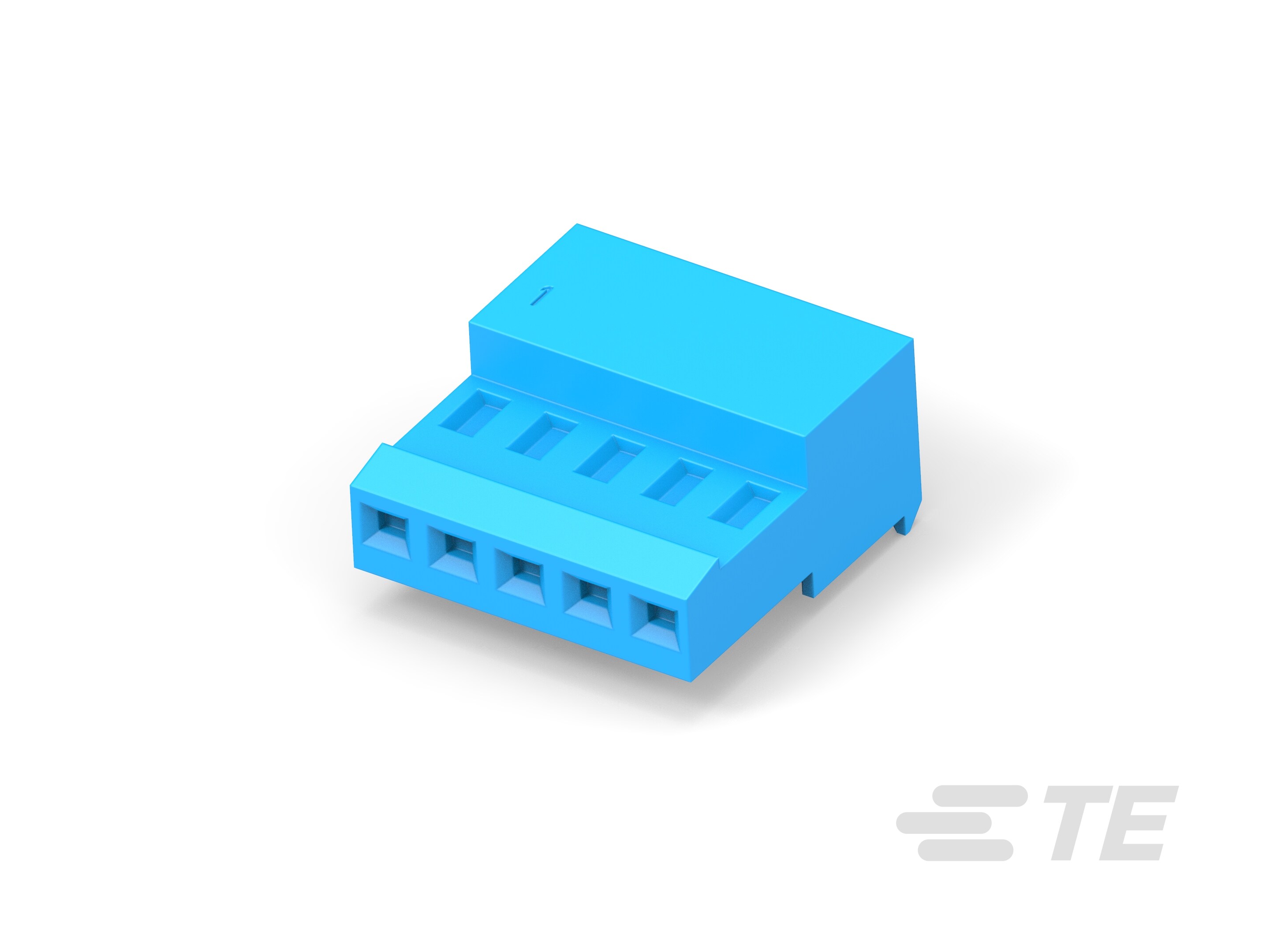

TE Connectivity AMP Connectors 3-641239-5	Discrete Ribbon Cable	IDC	1	Female Socket	Receptacle	Gold	Closed End	Locking Ramp	5	26 AWG	Blue	Free Hanging (In-Line) Right Angle	0.1 in	30 µin
TE Connectivity AMP Connectors 641239-2	Discrete Ribbon Cable	IDC	1	Female Socket	Receptacle	Gold	Closed End	Locking Ramp	2	26 AWG	Blue	Free Hanging (In-Line) Right Angle	0.1 in	30 µin
TE Connectivity AMP Connectors 3-641239-4	Discrete Ribbon Cable	IDC	1	Female Socket	Receptacle	Gold	Closed End	Locking Ramp	4	26 AWG	Blue	Free Hanging (In-Line) Right Angle	0.1 in	30 µin

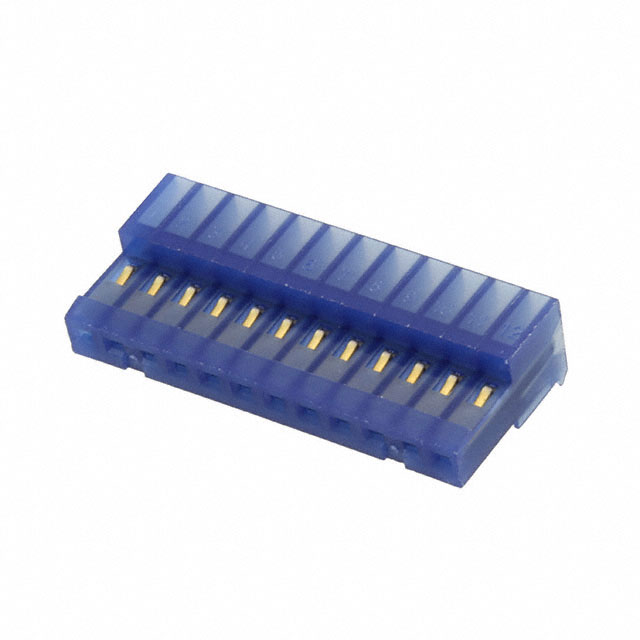

TE Connectivity AMP Connectors 4-641239-2	Discrete Ribbon Cable	IDC	1	Female Socket	Receptacle	Gold	Closed End	Locking Ramp	12	26 AWG	Blue	Free Hanging (In-Line) Right Angle	0.1 in	30 µin
TE Connectivity AMP Connectors 641239-4	Discrete Ribbon Cable	IDC	1	Female Socket	Receptacle	Gold	Closed End	Locking Ramp	4	26 AWG	Blue	Free Hanging (In-Line) Right Angle	0.1 in	30 µin
TE Connectivity AMP Connectors 641239-6	Discrete Ribbon Cable	IDC	1	Female Socket	Receptacle	Gold	Closed End	Locking Ramp	6	26 AWG	Blue	Free Hanging (In-Line) Right Angle	0.1 in	30 µin

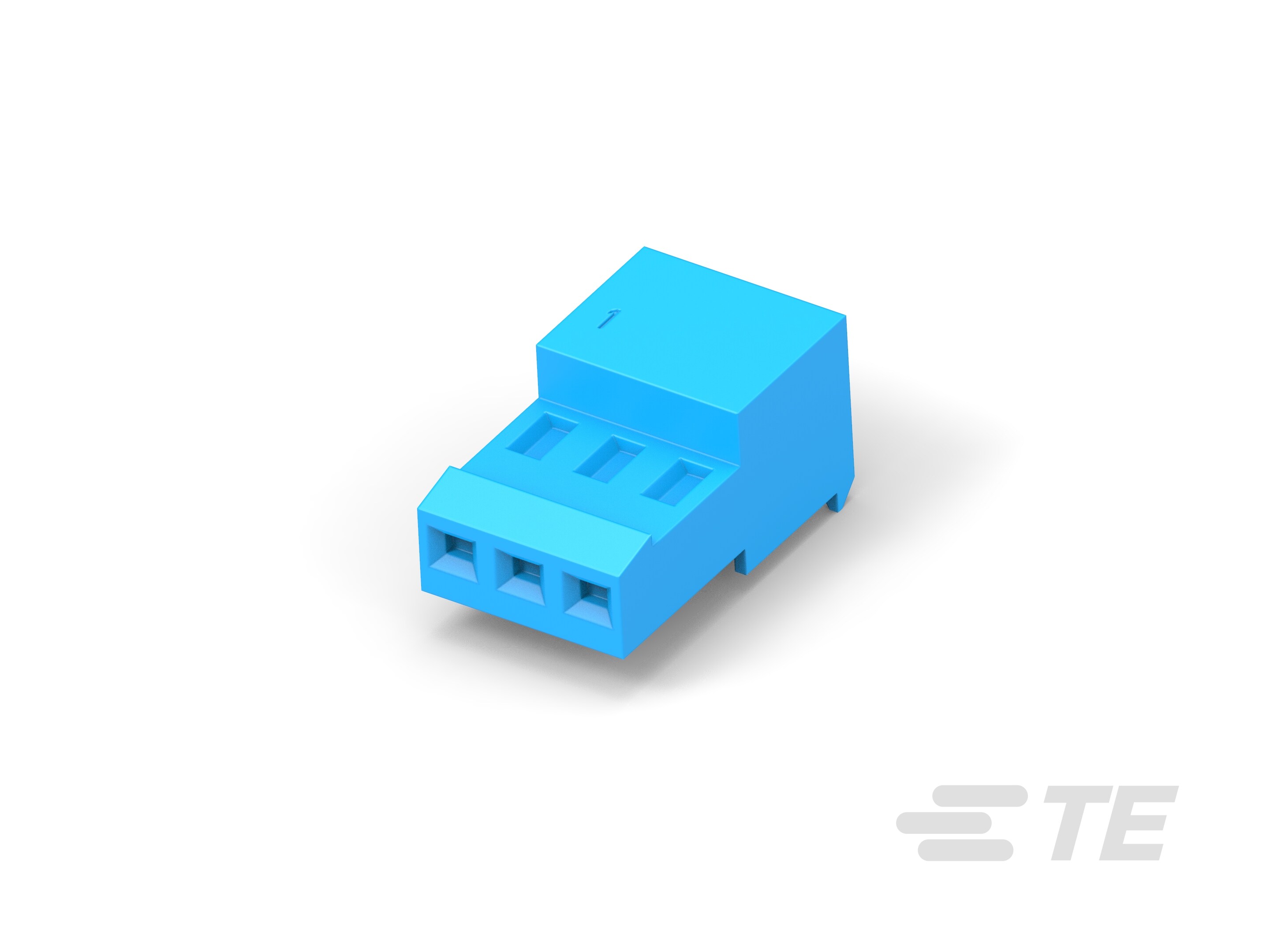

TE Connectivity AMP Connectors 3-641239-3	Discrete Ribbon Cable	IDC	1	Female Socket	Receptacle	Gold	Closed End	Locking Ramp	3	26 AWG	Blue	Free Hanging (In-Line) Right Angle	0.1 in	30 µin
TE Connectivity AMP Connectors 3-641239-6	Discrete Ribbon Cable	IDC	1	Female Socket	Receptacle	Gold	Closed End	Locking Ramp	6	26 AWG	Blue	Free Hanging (In-Line) Right Angle	0.1 in	30 µin
TE Connectivity AMP Connectors 4-641239-7	Discrete Ribbon Cable	IDC	1	Female Socket	Receptacle	Gold	Closed End	Locking Ramp	17	26 AWG	Blue	Free Hanging (In-Line) Right Angle	0.1 in	30 µin
TE Connectivity AMP Connectors 4-641239-4	Discrete Ribbon Cable	IDC	1	Female Socket	Receptacle	Gold	Closed End	Locking Ramp	14	26 AWG	Blue	Free Hanging (In-Line) Right Angle	0.1 in	30 µin
