PR01 Series
Manufacturer: Vishay Dale
Beta
⌘K

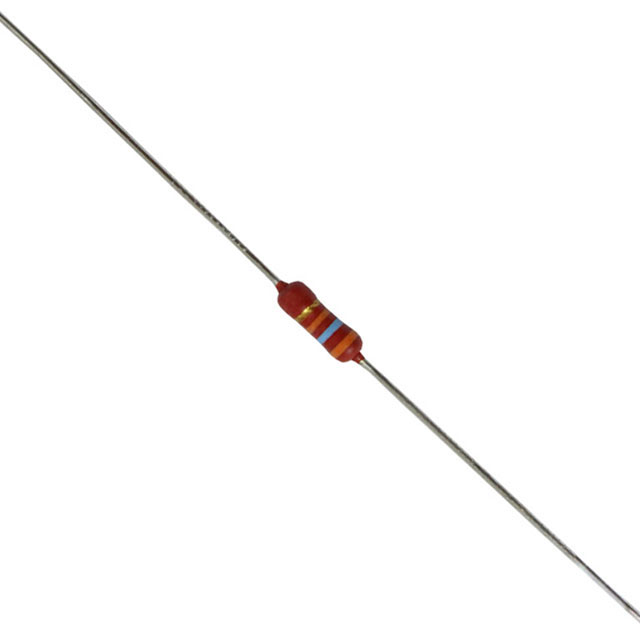

METAL FILM RESISTORS - THROUGH HOLE 1WATT 330OHMS 1%
| Part | Features | Package / Case | Operating Temperature (Min) | Operating Temperature (Max) | Size / Dimension Length | Size / Dimension Diameter | Power (Watts) | Package Name | Resistance | Number of Terminations | Tolerance | Temperature Coefficient | Temperature Coefficient (Highest) | Temperature Coefficient (Lowest) | Composition |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | Automotive AEC-Q200 Flame Retardant Coating Fusible Safety | Axial | -55 °C | 200 °C | 0.256 in | 0.098 in | 1 W | Axial | 330 Ohm | 2 | 1 % | 250 ppm/°C | 250 ppm/°C | -250 ppm/°C | Metal Film |
 Vishay Dale | Automotive AEC-Q200 Flame Retardant Coating Fusible Safety | Axial | -55 °C | 200 °C | 0.256 in | 0.098 in | 1 W | Axial | 2 Ohm | 2 | 5 % | 250 ppm/°C | 250 ppm/°C | -250 ppm/°C | Metal Film |
 Vishay Dale | Automotive AEC-Q200 Flame Retardant Coating Fusible Safety | Axial | -55 °C | 200 °C | 0.256 in | 0.098 in | 1 W | Axial | 51 kOhm | 2 | 5 % | 250 ppm/°C | 250 ppm/°C | -250 ppm/°C | Metal Film |
 Vishay Dale | Automotive AEC-Q200 Flame Retardant Coating Fusible Safety | Axial | -55 °C | 200 °C | 0.256 in | 0.098 in | 1 W | Axial | 39 kOhm | 2 | 5 % | 250 ppm/°C | 250 ppm/°C | -250 ppm/°C | Metal Film |

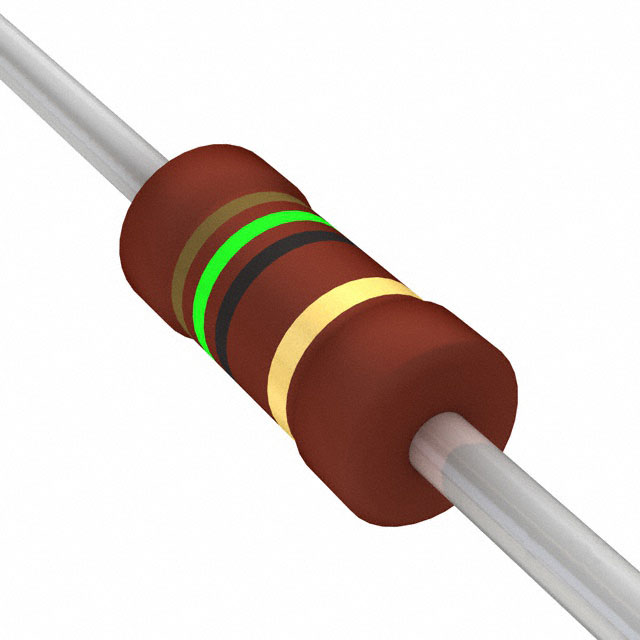

 Vishay Dale | Automotive AEC-Q200 Flame Retardant Coating Fusible Safety | Axial | -55 °C | 200 °C | 0.256 in | 0.098 in | 1 W | Axial | 15 Ohm | 2 | 5 % | 250 ppm/°C | 250 ppm/°C | -250 ppm/°C | Metal Film |

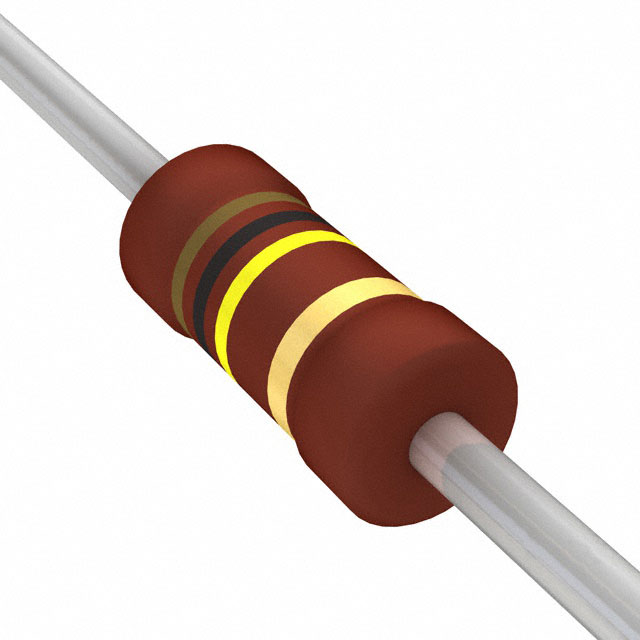

 Vishay Dale | Automotive AEC-Q200 Flame Retardant Coating Fusible Safety | Axial | -55 °C | 200 °C | 0.256 in | 0.098 in | 1 W | Axial | 100 kOhm | 2 | 5 % | 250 ppm/°C | 250 ppm/°C | -250 ppm/°C | Metal Film |
 Vishay Dale | Automotive AEC-Q200 Flame Retardant Coating Fusible Safety | Axial | -55 °C | 200 °C | 0.256 in | 0.098 in | 1 W | Axial | 6.8 kOhm | 2 | 5 % | 250 ppm/°C | 250 ppm/°C | -250 ppm/°C | Metal Film |
 Vishay Dale | Automotive AEC-Q200 Flame Retardant Coating Fusible Safety | Axial | -55 °C | 200 °C | 0.256 in | 0.098 in | 1 W | Axial | 3.9 Ohm | 2 | 5 % | 250 ppm/°C | 250 ppm/°C | -250 ppm/°C | Metal Film |
 Vishay Dale | Automotive AEC-Q200 Flame Retardant Coating Fusible Safety | Axial | -55 °C | 200 °C | 0.256 in | 0.098 in | 1 W | Axial | 110 kOhm | 2 | 5 % | 250 ppm/°C | 250 ppm/°C | -250 ppm/°C | Metal Film |

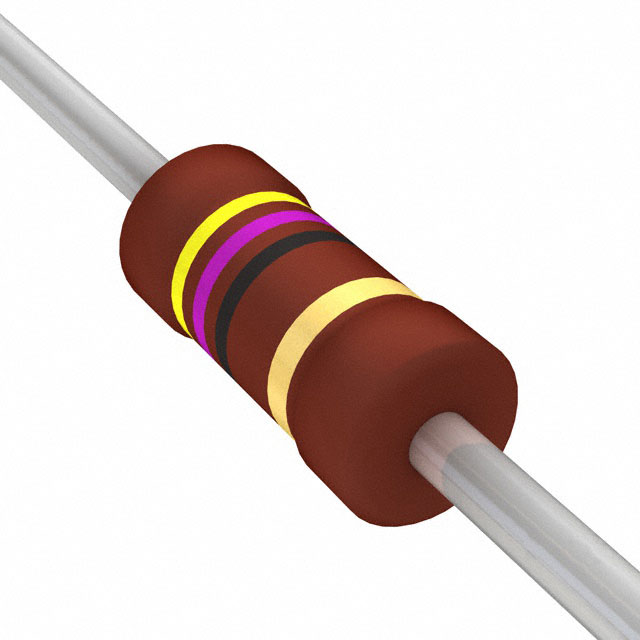

 Vishay Dale | Automotive AEC-Q200 Flame Retardant Coating Fusible Safety | Axial | -55 °C | 200 °C | 0.256 in | 0.098 in | 1 W | Axial | 47 Ohms | 2 | 5 % | 250 ppm/°C | 250 ppm/°C | -250 ppm/°C | Metal Film |
