IXTX600 Series

Catalog

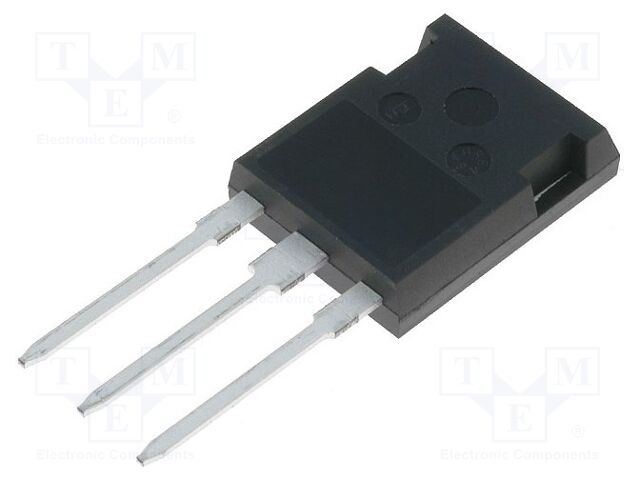

TRANSISTOR: N-MOSFET; UNIPOLAR; 40V; 600A; 1250W; PLUS247™; 100NS

Part	Mounting Type	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max)	Current - Continuous Drain (Id) (Tc)	Rds On (Max)	Package / Case	Package Name	Input Capacitance (Ciss) (Max)	FET Type	Drain to Source Voltage (Vdss)	Gate Charge (Max)	Power Dissipation (Max)	Vgs(th) (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Technology
LITTELFUSE IXTX600N04T2	Through Hole	10 V	20 V	600 A	1.5 mOhm	TO-247-3 Variant	PLUS247™-3	40000 pF	N-Channel	40 V	590 nC	1250 W	3.5 V	-55 °C	175 °C	MOSFET (Metal Oxide)
LITTELFUSE IXTX600N04T2	Through Hole	10 V	20 V	600 A	1.5 mOhm	TO-247-3 Variant	PLUS247™-3	40000 pF	N-Channel	40 V	590 nC	1250 W	3.5 V	-55 °C	175 °C	MOSFET (Metal Oxide)
