ADGS1409 Series

Catalog

MULTIPLEXER SWITCH ICS SPI INTERFACE, 4 ? RON, 15 V/+12 V/ 5 V, 1.8 V LOGIC CONTROL, DUAL 4:1 MUXES

Part	Current - Leakage (Max)	Voltage - Supply, Single (V+)	On-State Resistance (Max)	Package Width	Package Name	Package Length	Number of Circuits	Package / Case	Channel Capacitance (CD(off))	Channel Capacitance (CS(off))	Switch Time Toff (Max)	Switch Time Ton (Max)	Crosstalk	Charge Injection	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Channel-to-Channel Matching (ΔRon)	Voltage - Supply, Dual (Maximum)	Voltage - Supply, Dual (Minimum)	-3db Bandwidth	Demultiplexer Outputs	Multiplexer Inputs

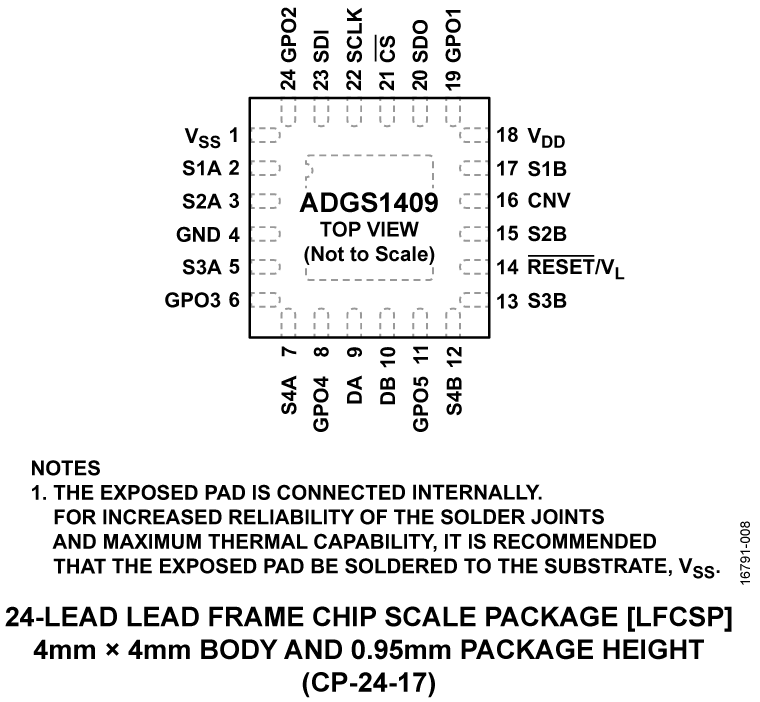

Analog Devices Inc./Maxim Integrated ADGS1409BCPZ-RL7	200 pA	12 V	4.7 Ohm	4 mm	24-LFCSP	4 mm	2	24-VFQFN Exposed Pad CSP	40 pF	14 pF	155 ns	165 ns	-70 dB	50 pC	Surface Mount	125 °C	-40 °C	200 mOhm	15 V	-15 V	115 MHz	1	4
Analog Devices Inc./Maxim Integrated ADGS1409BCPZ	200 pA	12 V	4.7 Ohm	4 mm	24-LFCSP	4 mm	2	24-VFQFN Exposed Pad CSP	40 pF	14 pF	155 ns	165 ns	-70 dB	50 pC	Surface Mount	125 °C	-40 °C	200 mOhm	15 V	-15 V	115 MHz	1	4
