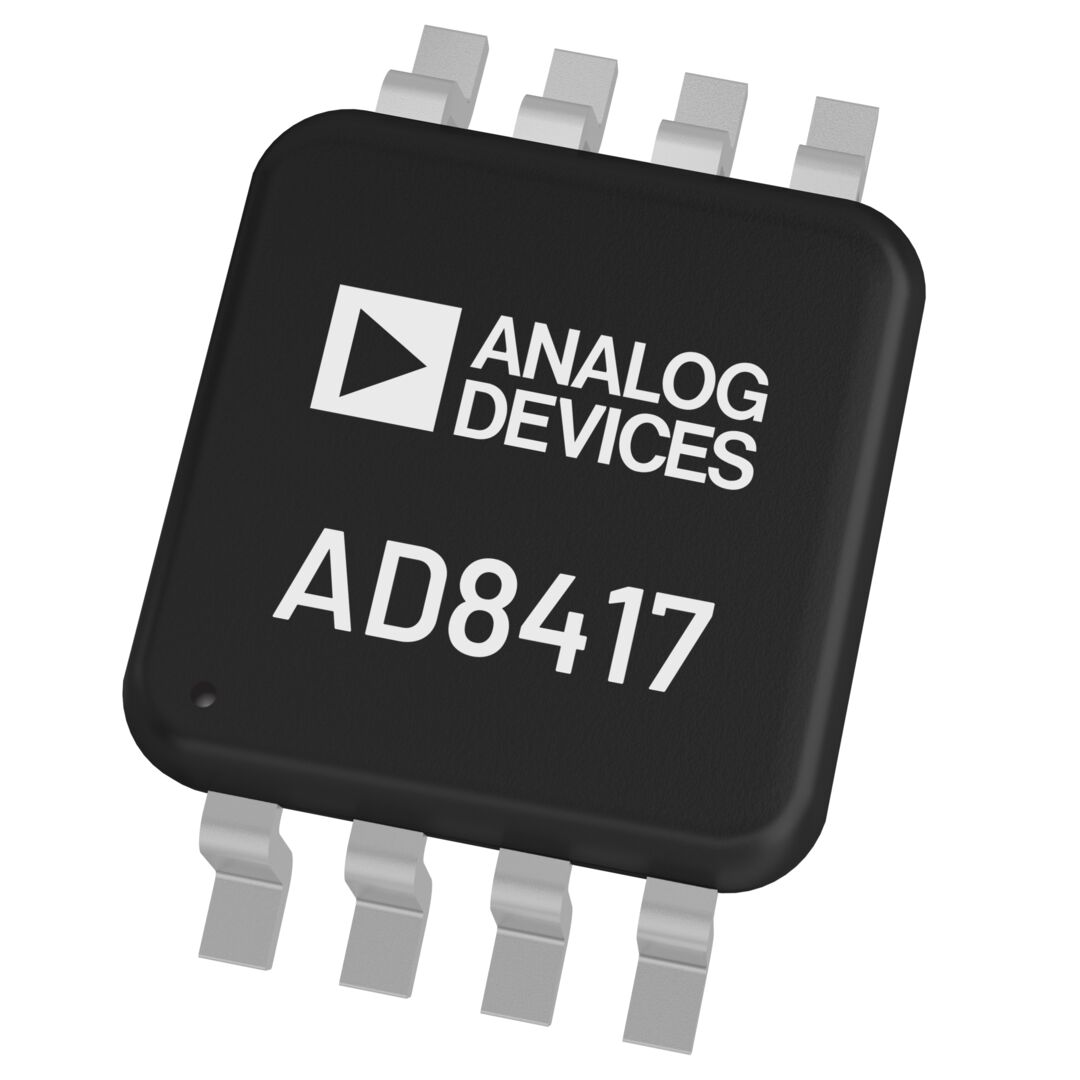

AD8417 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

BIDIRECTIONAL, ZERO DRIFT, CURRENT SENSE AMPLIFIER

Part	Slew Rate	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply Span (Min)	Current - Supply	-3db Bandwidth	Voltage - Input Offset	Package Length	Package Name	Package Width	Voltage - Supply Span (Max)	Current - Input Bias	Amplifier Type	Mounting Type	Grade	Number of Circuits	Supplied Contents	Board Type	Current - Supply (Main IC)	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Contents	Utilized IC / Part	Output Type	Voltage - Supply (Single) Minimum	Supply Configuration	Voltage - Supply (Single) Maximum
Analog Devices Inc./Maxim Integrated AD8417WHRZ-RL	1 V/µs	-40 °C	150 °C	2.7 V	4.1 mA	250 kHz	200 µV	0.154 in	8-SOIC	3.9 mm	5.5 V	130 µA	Current Sense	Surface Mount	Automotive	1
Analog Devices Inc./Maxim Integrated AD8417WBRZ	1 V/µs	-40 °C	125 °C	2.7 V	4.1 mA	250 kHz	200 µV	0.154 in	8-SOIC	3.9 mm	5.5 V	130 µA	Current Sense	Surface Mount	Automotive	1
Analog Devices Inc./Maxim Integrated AD8417WBRMZ-10	1 V/µs	-40 °C	125 °C	2.7 V		250 kHz	200 µV	0.118 in	10-MSOP 10-TFSOP	3 mm	5.5 V	130 µA	Current Sense	Surface Mount		1
Analog Devices Inc./Maxim Integrated AD8417WBRMZ-RL	1 V/µs	-40 °C	125 °C	2.7 V	4.1 mA	250 kHz	200 µV	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	5.5 V	130 µA	Current Sense	Surface Mount	Automotive	1
Analog Devices Inc./Maxim Integrated AD8417WBRZ-RL	1 V/µs	-40 °C	125 °C	2.7 V	4.1 mA	250 kHz	200 µV	0.154 in	8-SOIC	3.9 mm	5.5 V	130 µA	Current Sense	Surface Mount	Automotive	1
Analog Devices Inc./Maxim Integrated AD8417WHRMZ	1 V/µs	-40 °C	150 °C	2.7 V	4.1 mA	250 kHz	200 µV	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	5.5 V	130 µA	Current Sense	Surface Mount	Automotive	1
Analog Devices Inc./Maxim Integrated AD8417WHRMZ-RL	1 V/µs	-40 °C	150 °C	2.7 V	4.1 mA	250 kHz	200 µV	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	5.5 V	130 µA	Current Sense	Surface Mount	Automotive	1
Analog Devices Inc./Maxim Integrated AD8417BRMZ-RL	1 V/µs	-40 °C	125 °C	2.7 V	4.1 mA	250 kHz	200 µV	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	5.5 V	130 µA	Current Sense	Surface Mount		1
Analog Devices Inc./Maxim Integrated AD8417WBRMZ	1 V/µs	-40 °C	125 °C	2.7 V	4.1 mA	250 kHz	200 µV	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	5.5 V	130 µA	Current Sense	Surface Mount	Automotive	1
Analog Devices Inc./Maxim Integrated AD8417R-EVALZ	1 V/µs					250 Hz 250 kHz							Current Sense				Board(s)	Fully Populated	0.0041 mA	1	Single	1	Board	AD8417	Single-Ended	2.7 V	Dual Single	5.5 V
