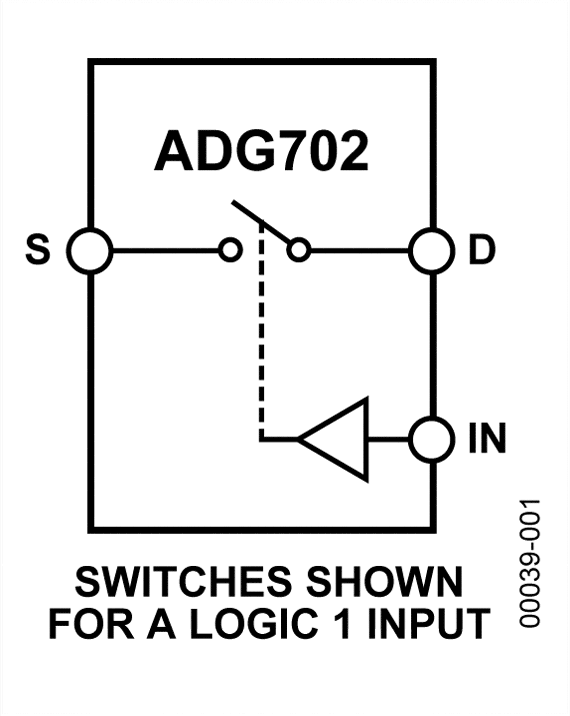

ADG702 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
ANALOG SWITCH SINGLE SPST 8-PIN MSOP T/R
| Part | Charge Injection | Current - Leakage (Typical) | Switch Contact | Switch Circuit Type | Channel Capacitance (CS(off)) | Channel Capacitance (CD(off)) | Demultiplexer Outputs | Multiplexer Inputs | Package Name | Mounting Type | -3db Bandwidth | On-State Resistance (Max) | Switch Time Toff (Typ) | Switch Time Ton (Max) | Package Width | Package Length | Number of Circuits | Voltage - Supply, Single (V+) (Maximum) | Voltage - Supply, Single (V+) (Minimum) | Operating Temperature (Max) | Operating Temperature (Min) | Current - Leakage (Max) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 5 pC | 10 pA | NC | SPST | 17 pF | 17 pF | 1 | 1 | 8-MSOP 8-TSSOP 8-MSOP | Surface Mount | 200 MHz | 3 Ohm | 8 ns | 12 ns | 3 mm | 0.118 in | 1 | 5 V | 1.8 V | 85 °C | -40 °C | ||
 Analog Devices Inc./Maxim Integrated | 5 pC | NC | SPST | 17 pF | 17 pF | 1 | 1 | SOT-23-5 | Surface Mount | 200 MHz | 3 Ohm | 8 ns | 12 ns | 1 | 5 V | 1.8 V | 85 °C | -40 °C | 250 pA | ||||
 Analog Devices Inc./Maxim Integrated | 5 pC | NC | SPST | 17 pF | 17 pF | 1 | 1 | SOT-23-5 | Surface Mount | 200 MHz | 3 Ohm | 8 ns | 12 ns | 1 | 5 V | 1.8 V | 85 °C | -40 °C | 250 pA | ||||
 Analog Devices Inc./Maxim Integrated | 5 pC | NC | SPST | 17 pF | 17 pF | 1 | 1 | SOT-23-6 | Surface Mount | 200 MHz | 3 Ohm | 8 ns | 12 ns | 1 | 5 V | 1.8 V | 85 °C | -40 °C | 250 pA | SOT-23-6 | |||
 Analog Devices Inc./Maxim Integrated | 5 pC | 10 pA | NC | SPST | 17 pF | 17 pF | 1 | 1 | SOT-23-6 | Surface Mount | 200 MHz | 3 Ohm | 8 ns | 12 ns | 1 | 5 V | 1.8 V | 85 °C | -40 °C | SOT-23-6 | |||
 Analog Devices Inc./Maxim Integrated | 5 pC | 10 pA | NC | SPST | 17 pF | 17 pF | 1 | 1 | SOT-23-5 | Surface Mount | 200 MHz | 3 Ohm | 8 ns | 12 ns | 1 | 5 V | 1.8 V | 85 °C | -40 °C | ||||
 Analog Devices Inc./Maxim Integrated | 5 pC | 10 pA | NC | SPST | 17 pF | 17 pF | 1 | 1 | 8-MSOP 8-TSSOP 8-MSOP | Surface Mount | 200 MHz | 3 Ohm | 8 ns | 12 ns | 3 mm | 0.118 in | 1 | 5 V | 1.8 V | 85 °C | -40 °C | ||
Analog Devices Inc./Maxim Integrated | SOT-23-6 | Surface Mount | SOT-23-6 | ||||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | 5 pC | NC | SPST | 17 pF | 17 pF | 1 | 1 | 8-MSOP 8-TSSOP 8-MSOP | Surface Mount | 200 MHz | 3 Ohm | 8 ns | 12 ns | 3 mm | 0.118 in | 1 | 5 V | 1.8 V | 85 °C | -40 °C | 250 pA | ||
Analog Devices Inc./Maxim Integrated | 5 pC | 10 pA | NC | SPST | 17 pF | 17 pF | 1 | 1 | 8-MSOP 8-TSSOP 8-MSOP | Surface Mount | 200 MHz | 3 Ohm | 8 ns | 12 ns | 3 mm | 0.118 in | 1 | 5 V | 1.8 V | 85 °C | -40 °C |
