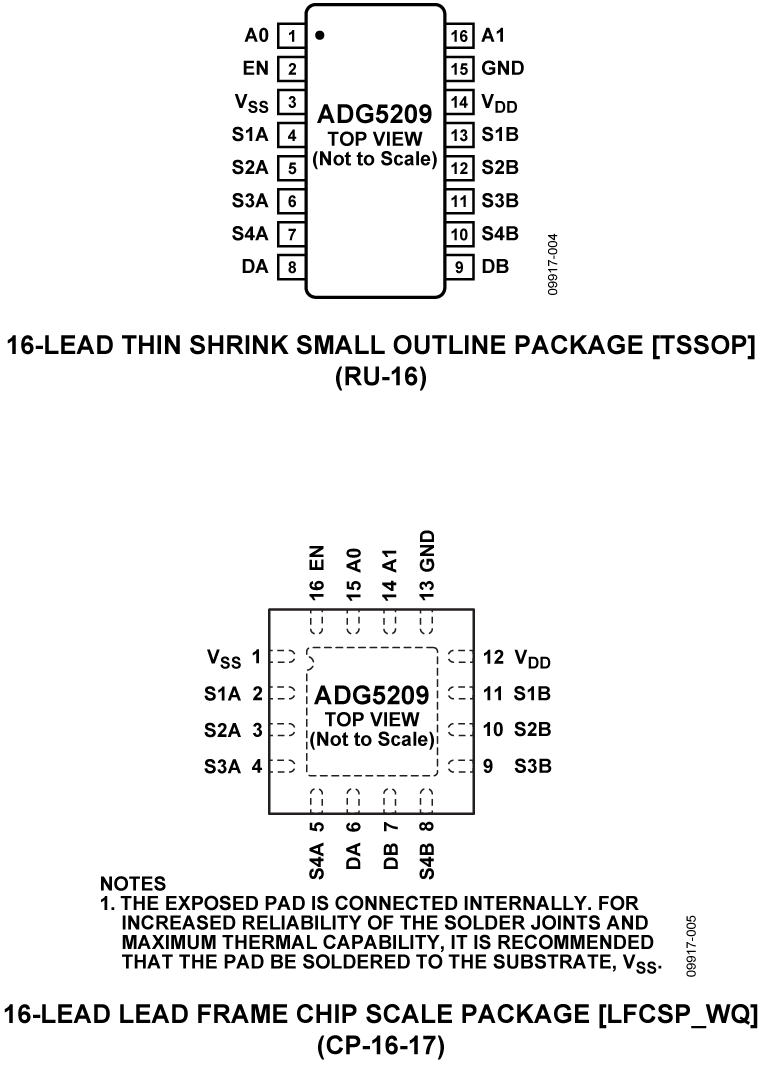

ADG5209 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

FAULT PROTECTION, −0.4 PC QINJ, 8:1/DUAL 4:1 MULTIPLEXERS

Part	Channel-to-Channel Matching (ΔRon)	Demultiplexer Outputs	Multiplexer Inputs	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	Charge Injection	Switch Time Toff (Max)	Switch Time Ton (Max)	Package Width	Package Name	Package Length	-3db Bandwidth	Mounting Type	Voltage - Supply, Single (V+) (Maximum)	Voltage - Supply, Single (V+) (Minimum)	Number of Circuits	Current - Leakage (Max)	Package / Case	Switch Circuit Type	Voltage - Supply, Dual (Nominal)	Voltage - Supply, Dual (Minimum)	Voltage - Supply, Dual (Maximum)	Operating Temperature (Max)	Operating Temperature (Min)	On-State Resistance (Max)	Supplied Contents	Primary Attributes	Utilized IC / Part	Type	Function	Contents	Crosstalk	Channel-to-Channel Matching (ΔRon) (Typ)
Analog Devices Inc./Maxim Integrated ADG5209FBCPZ-RL7	3.5 Ohm	1	4	4 pF	8 pF	0.4 pC	185 ns	140 ns	4 mm	16-LFCSP-WQ	4 mm	130 MHz	Surface Mount	40 V	9 V	2	1 nA	16-WQFN Exposed Pad CSP	SP4T	9 V	-9 V	22 V	125 °C	-40 °C	160 Ohms

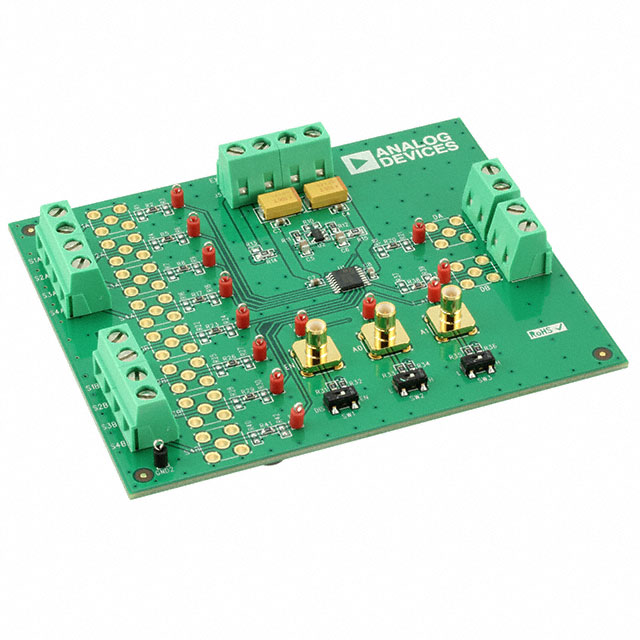

Analog Devices Inc./Maxim Integrated EVAL-ADG5209FEBZ																										Board(s)	2-Channel (Dual)	ADG5209F	Interface	1 Multiplexer 4	Board
Analog Devices Inc./Maxim Integrated ADG5209FBRUZ	3.5 Ohm	1	4	2.8 pF	17 pF	0.4 pC	185 ns	140 ns	4.4 mm	16-TSSOP	0.173 in	130 MHz	Surface Mount	40 V	9 V	2	100 pA		SP4T	9 V	-9 V	22 V	125 °C	-40 °C	160 Ohms							-90 dB
Analog Devices Inc./Maxim Integrated ADG5209BRUZ-RL7	3.5 Ohm	1	4	2.8 pF	17 pF	0.4 pC	185 ns	140 ns	4.4 mm	16-TSSOP	0.173 in	130 MHz	Surface Mount	40 V	9 V	2	100 pA		SP4T	9 V	-9 V	22 V	125 °C	-40 °C	160 Ohms							-90 dB
Analog Devices Inc./Maxim Integrated ADG5209SRU-EP-RL7	3.5 Ohm	1	4	2.8 pF	17 pF	0.4 pC	185 ns	140 ns	4.4 mm	16-TSSOP	0.173 in	225 MHz	Surface Mount	40 V	9 V	2	100 pA		SP4T	9 V	-9 V	22 V	125 °C	-55 °C	160 Ohms							-80 dB
Analog Devices Inc./Maxim Integrated ADG5209FBRUZ-RL7	3.5 Ohm	1	4	2.8 pF	17 pF	0.4 pC	185 ns	140 ns	4.4 mm	16-TSSOP	0.173 in	130 MHz	Surface Mount	40 V	9 V	2	100 pA		SP4T	9 V	-9 V	22 V	125 °C	-40 °C	160 Ohms							-90 dB
Analog Devices Inc./Maxim Integrated ADG5209BCPZ-RL7	3.5 Ohm	1	4	2.8 pF	17 pF	0.4 pC	185 ns	140 ns	4 mm	16-LFCSP-WQ	4 mm	130 MHz	Surface Mount	40 V	9 V	2	100 pA	16-WQFN Exposed Pad CSP	SP4T	9 V	-9 V	22 V	125 °C	-40 °C	160 Ohms							-90 dB
Analog Devices Inc./Maxim Integrated ADG5209SRUZ-EP-RL7		1	4	2.8 pF	17 pF	0.4 pC	185 ns	140 ns	4.4 mm	16-TSSOP	0.173 in	225 MHz	Surface Mount	40 V	9 V	2	100 pA		SP4T	18 V	-18 V	44 V	125 °C	-55 °C	160 Ohms							-80 dB	3.5 Ohm
Analog Devices Inc./Maxim Integrated ADG5209BRUZ	3.5 Ohm	1	4	2.8 pF	17 pF	0.4 pC	185 ns	140 ns	4.4 mm	16-TSSOP	0.173 in	130 MHz	Surface Mount	40 V	9 V	2	100 pA		SP4T	9 V	-9 V	22 V	125 °C	-40 °C	160 Ohms							-90 dB
