ADAU1861 Series

Three ADCs, One DAC, Low Power Codec with Audio DSPs

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Three ADCs, One DAC, Low Power Codec with Audio DSPs

Part	Operating Temperature (Min)	Operating Temperature (Max)	Number of ADCs	Number of DACs	Resolution (Bits)	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Sigma Delta	Data Interface	Dynamic Range (ADC) Typical (dB)	Dynamic Range (DAC) Typical (dB)	Package Name	Package Length	Package Width	S/N Ratio (ADCs) (Typical)	S/N Ratio (DACs) (Typical)	Type	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Mounting Type	Package / Case
Analog Devices Inc./Maxim Integrated ADAU1861BCSZ-RL	-40 °C	105 °C	3 count	1	24 b	1.21 V	0.85 V	No	I2C I2S SPI	106 dB	110 dB	64-LFCSP-SS	9 mm	9 mm	106 dB	110 dB	Audio	1.7 V	1.98 V	Surface Mount	64-WFQFN Exposed Pad CSP

Catalog

Three ADCs, One DAC, Low Power Codec with Audio DSPs

Description

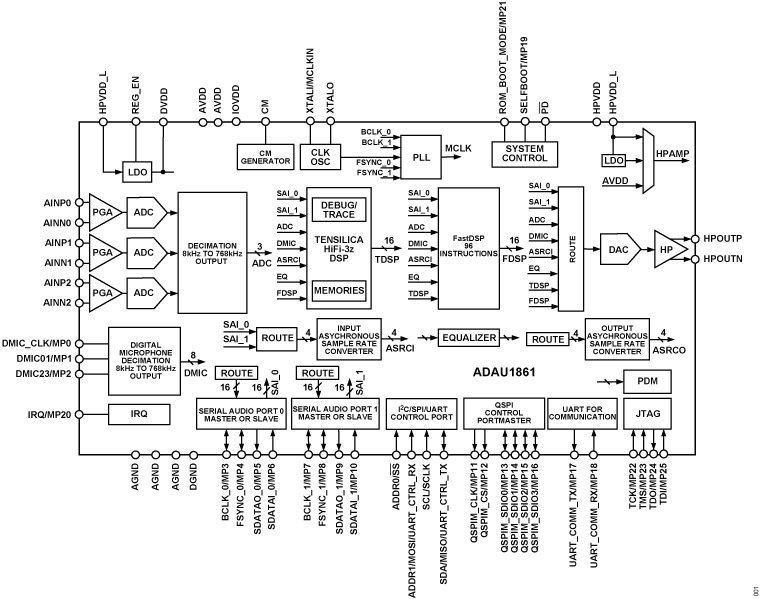

The ADAU1861 is a codec with three inputs and one output that incorporates two digital-signal processors (DSPs). The path from the analog input to the DSP core to the analog output is optimized for low latency.APPLICATIONSAutomotive audio systemsDigital audio effects processors
