AT04-08PB Series

Catalog

8-WAY RECEPTACLE, MALE CONNECTOR WITH B POSITION KEY, REDUCED DIAMETER SEAL (E-SEAL) AND END CAP / ROHS COMPLIANT: YES

Part	Note	Insulation Material	Mounting Type	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Contact Termination	Fastening Type	Color	Contact Type	Connector Type	Number of Rows	Features	Wire Type	Contact Finish	Cable Termination	For Use With/Related Products	Accessory Type
McGill Microwave Systems AT04-08PB-MM01	Contacts Not Included	Thermoplastic	Free Hanging (In-Line)	8	125 °C	-55 °C	Crimp	Latch Holder	Black	Male Pin	Receptacle	2	Cap (Cover) Sealed

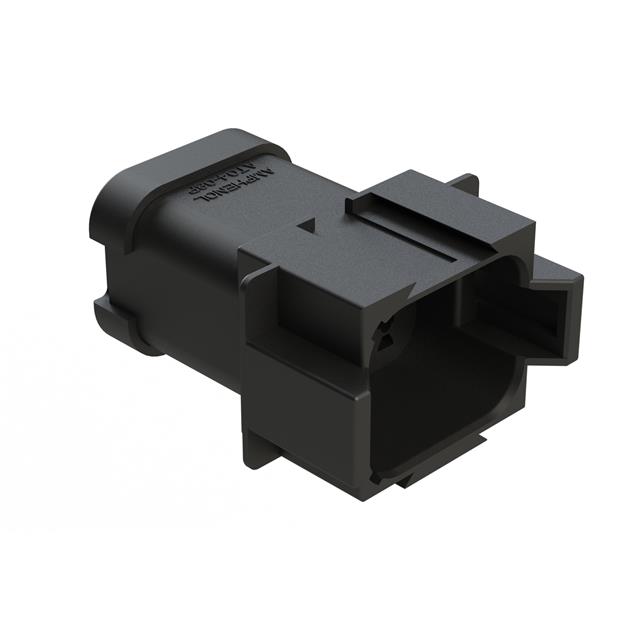

McGill Microwave Systems AT04-08PB-EC01	Contacts Not Included	Thermoplastic	Free Hanging (In-Line)	8	125 °C	-55 °C	Crimp	Latch Holder	Black	Male Pin	Receptacle	2	Cap (Cover)
McGill Microwave Systems AT04-08PB-PMR7G	Contacts Not Included	Thermoplastic	Panel Mount	8	125 °C	-55 °C	Crimp	Latch Holder	Black	Male Pin	Receptacle	2	Cap (Cover) Mounting Flange Sealed
McGill Microwave Systems AT04-08PB-P021			Free Hanging (In-Line)	8				Latch Holder	Black	Male Pin	Receptacle	2	Cap (Cover) IP67 Sealed	Discrete	Nickel	Crimp

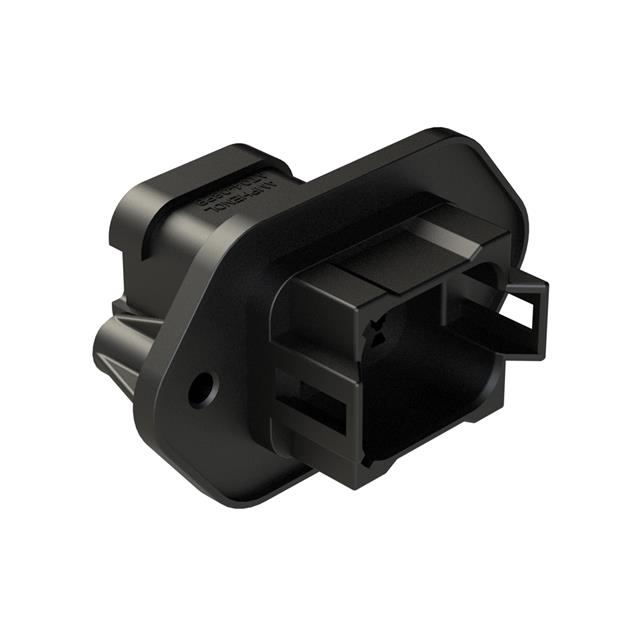

McGill Microwave Systems AT04-08PB-PMR7	Contacts Not Included	Thermoplastic	Panel Mount	8	125 °C	-55 °C	Crimp	Latch Holder	Black	Male Pin	Receptacle	2	Cap (Cover) Mounting Flange Sealed
McGill Microwave Systems AT04-08PB-P026			Free Hanging (In-Line)	8				Latch Holder	Black	Male Pin	Receptacle	2	Cap (Cover) IP67 Sealed	Discrete	Nickel	Crimp
McGill Microwave Systems AT04-08PB-PM14	Contacts Not Included	Thermoplastic	Panel Mount	8	125 °C	-55 °C	Crimp	Latch Holder	Black	Male Pin	Receptacle	2	Cap (Cover) Mounting Flange Sealed
McGill Microwave Systems AT04-08PB-PM12	Contacts Not Included	Thermoplastic	Panel Mount	8	125 °C	-55 °C	Crimp	Latch Holder	Black	Male Pin	Receptacle	2	Mounting Flange Sealed

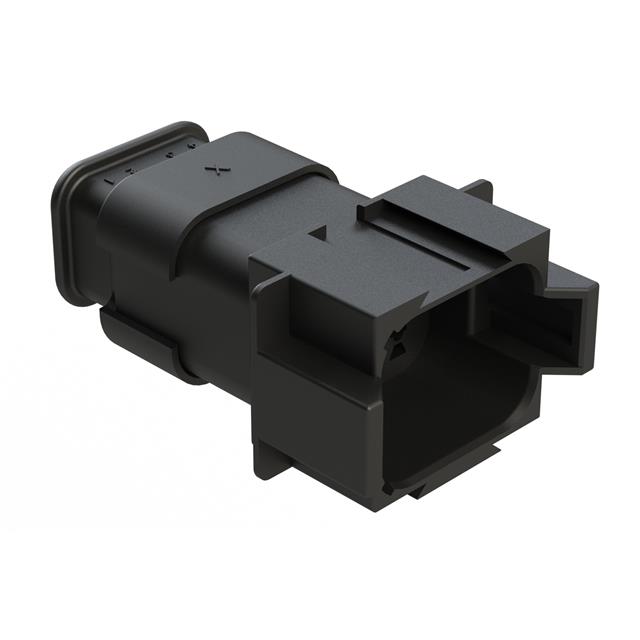

McGill Microwave Systems AT04-08PB-SR2BK	Contacts Not Included	Thermoplastic	Free Hanging (In-Line)	8	125 °C	-55 °C	Crimp	Latch Holder	Black	Male Pin	Receptacle	2	Cap (Cover) Sealed Strain Relief

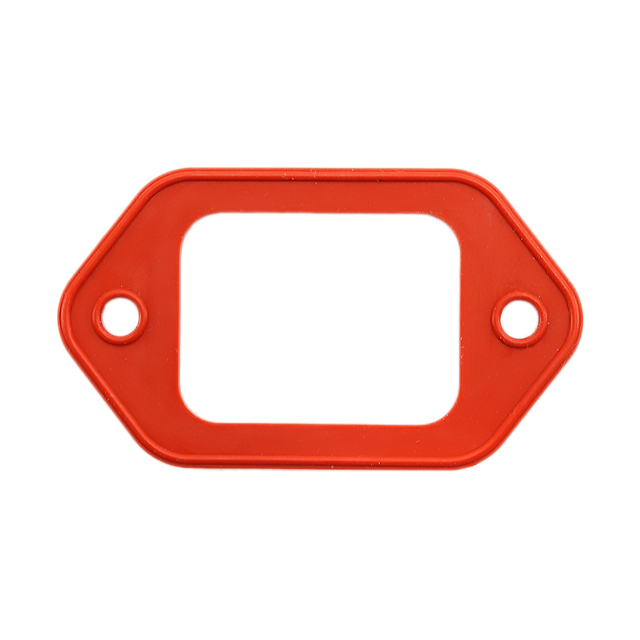

McGill Microwave Systems AT04-08PB-G7				8													AT Series™	Gasket
