MSMD3 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

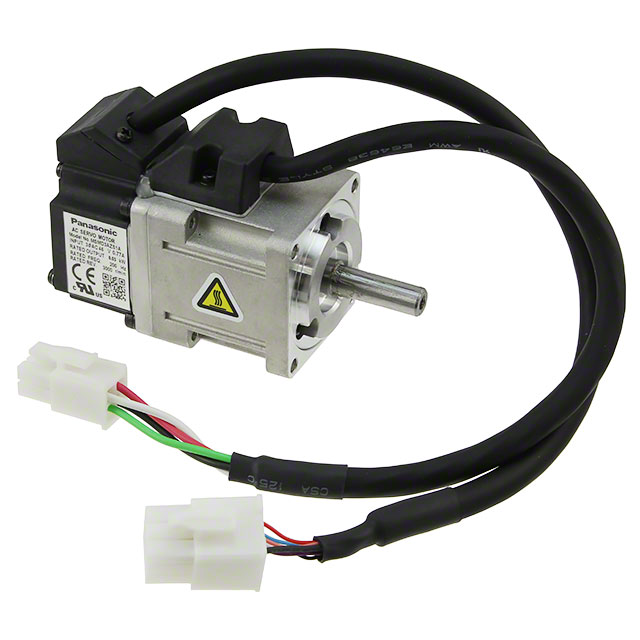

SERVOMOTOR 3000 RPM 100/200V
| Part | Approval Agency | Weight | Diameter - Shaft | Function | Power - Rated | RPM | Type | Torque - Rated (mNm) | Torque - Rated (oz-in) | Voltage - Rated | Operating Temperature (Max) | Operating Temperature (Min) | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Size / Dimension Width | Size / Dimension Shape | Size / Dimension Length | Torque - Max Momentary (oz-in) | Torque - Max Momentary (mNm) | Encoder Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | CE CSA cULus TUV UL | 0.705 lb | 0.748 in | Servomotor | 30 W | 3000 RPM | AC Motor | 160 mNm | 22.7 oz-in | 100 VAC/DC 200 VDC | 40 °C | 0 °C | 1.378 in | 3.543 in | Wire Leads | 3.15 in | Square | 3.15 in | 67.97 oz-in | 480 mNm | Absolute |
