AD9634 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

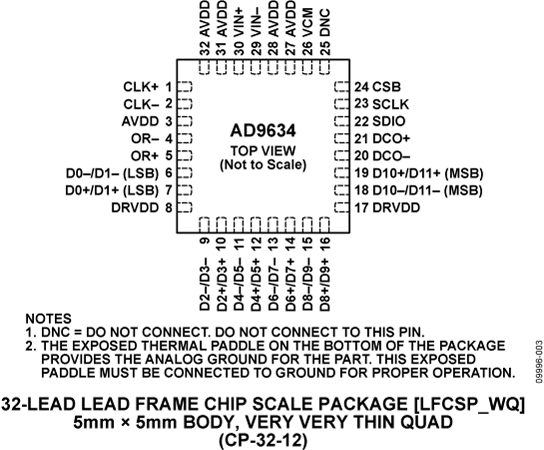

12-BIT, 170 MSPS/210 MSPS/250 MSPS, 1.8 V ANALOG-TO-DIGITAL CONVERTER

Part	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Configuration	Number of A/D Converters	Number of Inputs	Mounting Type	Ratio - ADC	Ratio - S/H	Architecture	Data Interface	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Sampling Rate (Per Second)	Package Length	Package Name	Package Width	Reference Type	Input Type	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Number of Bits	Supplied Contents	Input Voltage (Max)	Input Voltage (Min)	Utilized IC / Part	Contents
Analog Devices Inc./Maxim Integrated AD9634BCPZRL7-170	1.9 V	1.7 V	S/H-ADC	1 count	1	Surface Mount	1	1	Pipelined	LVDS - Parallel	1.7 V	1.9 V	170 MHz	5 mm	32-LFCSP	5 mm	Internal	Differential	-40 °C	85 °C	32-WFQFN Exposed Pad CSP	12 bits
Analog Devices Inc./Maxim Integrated AD9634BCPZ-210	1.9 V	1.7 V	S/H-ADC	1 count	1	Surface Mount	1	1	Pipelined	LVDS - Parallel	1.7 V	1.9 V	210 MHz	5 mm	32-LFCSP	5 mm	Internal	Differential	-40 °C	85 °C	32-WFQFN Exposed Pad CSP	12 bits
Analog Devices Inc./Maxim Integrated AD9634BCPZ-250	1.9 V	1.7 V	S/H-ADC	1 count	1	Surface Mount	1	1	Pipelined	LVDS - Parallel	1.7 V	1.9 V	250 MHz	5 mm	32-LFCSP	5 mm	Internal	Differential	-40 °C	85 °C	32-WFQFN Exposed Pad CSP	12 bits
Analog Devices Inc./Maxim Integrated AD9634BCPZ-170	1.9 V	1.7 V	S/H-ADC	1 count	1	Surface Mount	1	1	Pipelined	LVDS - Parallel	1.7 V	1.9 V	170 MHz	5 mm	32-LFCSP	5 mm	Internal	Differential	-40 °C	85 °C	32-WFQFN Exposed Pad CSP	12 bits
Analog Devices Inc./Maxim Integrated AD9634-170EBZ				1 count						SPI			170 MHz									12 bits	Board(s)	2 V	1.4 Vpp	AD9634	Board
Analog Devices Inc./Maxim Integrated AD9634BCPZRL7-250	1.9 V	1.7 V	S/H-ADC	1 count	1	Surface Mount	1	1	Pipelined	LVDS - Parallel	1.7 V	1.9 V	250 MHz	5 mm	32-LFCSP	5 mm	Internal	Differential	-40 °C	85 °C	32-WFQFN Exposed Pad CSP	12 bits
Analog Devices Inc./Maxim Integrated AD9634BCPZRL7-210	1.9 V	1.7 V	S/H-ADC	1 count	1	Surface Mount	1	1	Pipelined	LVDS - Parallel	1.7 V	1.9 V	210 MHz	5 mm	32-LFCSP	5 mm	Internal	Differential	-40 °C	85 °C	32-WFQFN Exposed Pad CSP	12 bits
