AT04-12PD Series

Catalog

12-WAY RECEPTACLE, MALE CONNECTOR WITH D POSITION KEY, EXTENDED SHROUD, REDUCED DIAMETER SEAL (E-SEAL) / ROHS COMPLIANT: YES

Part	Note	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Contact Type	Insulation Material	Contact Termination	Features	Color	Number of Rows	Mounting Type	Connector Type	Number of Positions	Ingress Protection	Current Rating	Termination	Insulation Color	Style	Insulation Height	Contact Shape	Number of Positions Loaded	Contact Material	Contact Finish - Mating	Shrouding	Applications
McGill Microwave Systems AT04-12PD-RD01	Contacts Not Included	125 °C	-55 °C	Latch Holder	Male Pin	Thermoplastic	Crimp	Sealed	Brown	2	Free Hanging (In-Line)	Receptacle	12
McGill Microwave Systems AT04-12PD-PM12	Contacts Not Included	125 °C	-55 °C	Latch Holder	Male Pin	Thermoplastic	Crimp	Mounting Flange Sealed	Brown	2	Panel Mount	Receptacle	12

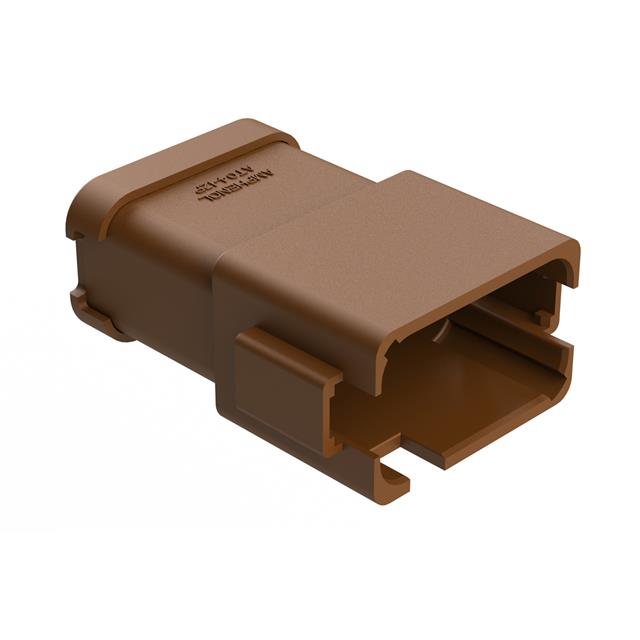

McGill Microwave Systems AT04-12PD-SS01	Contacts Not Included	125 °C	-55 °C	Latch Holder	Male Pin	Thermoplastic	Crimp	Cap (Cover) Sealed	Brown	2	Free Hanging (In-Line)	Receptacle	12
McGill Microwave Systems AT04-12PD-BM01		125 °C	-55 °C	Latch Holder	Male Pin	Thermoplastic		Board Lock		2	Through Hole	Receptacle	12	IP67	13 A	Solder	Brown	Board Cable/Wire	0.835 in	Circular	All	Copper Alloy	Gold	Shrouded - 4 Wall	Automotive General Purpose Industrial
McGill Microwave Systems AT04-12PD-MM01	Contacts Not Included	125 °C	-55 °C	Latch Holder	Male Pin	Thermoplastic	Crimp	Cap (Cover) Sealed	Brown	2	Free Hanging (In-Line)	Receptacle	12

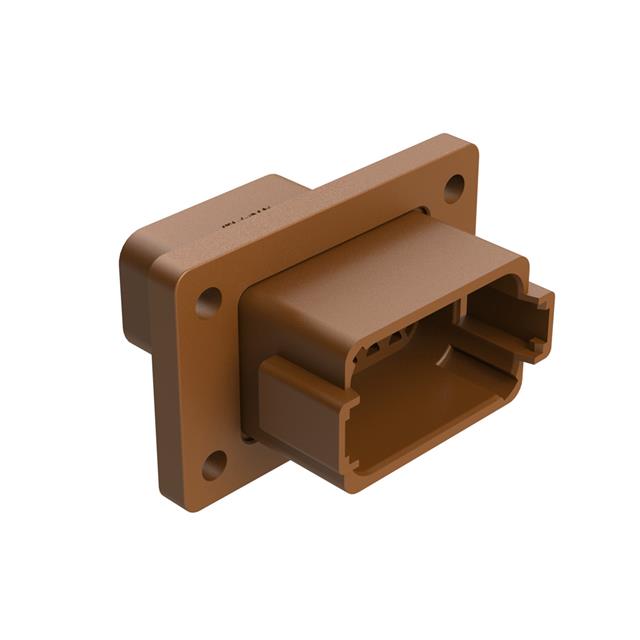

McGill Microwave Systems AT04-12PD-L012	Contacts Not Included	125 °C	-55 °C	Latch Holder	Male Pin	Thermoplastic	Crimp	Mounting Flange Sealed	Brown	2	Panel Mount	Receptacle	12

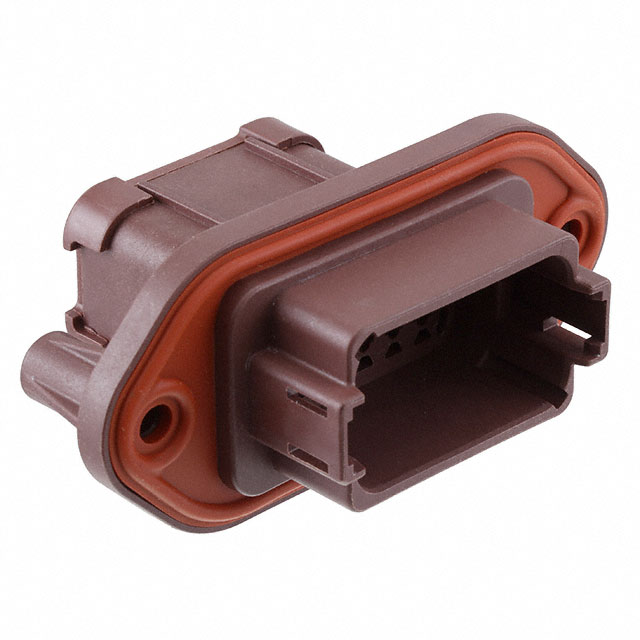

McGill Microwave Systems AT04-12PD-PM13	Contacts Not Included	125 °C	-55 °C	Latch Holder	Male Pin	Thermoplastic	Crimp	Cap (Cover) Mounting Flange Sealed	Brown	2	Panel Mount	Receptacle	12

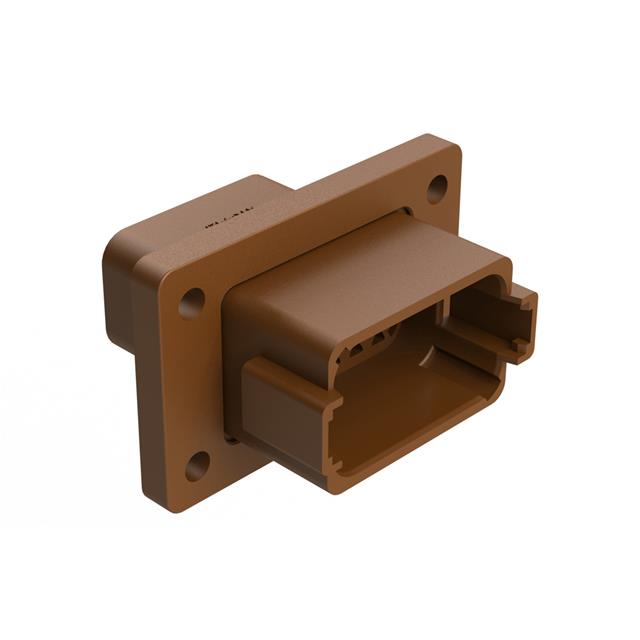

McGill Microwave Systems AT04-12PD-CL03	Contacts Not Included	125 °C	-55 °C	Latch Holder	Male Pin	Thermoplastic	Crimp	Mounting Flange Sealed	Brown	2	Panel Mount	Receptacle	12
McGill Microwave Systems AT04-12PD	Contacts Not Included	125 °C	-55 °C	Latch Holder	Male Pin	Thermoplastic	Crimp		Brown	2	Free Hanging (In-Line)	Receptacle	12

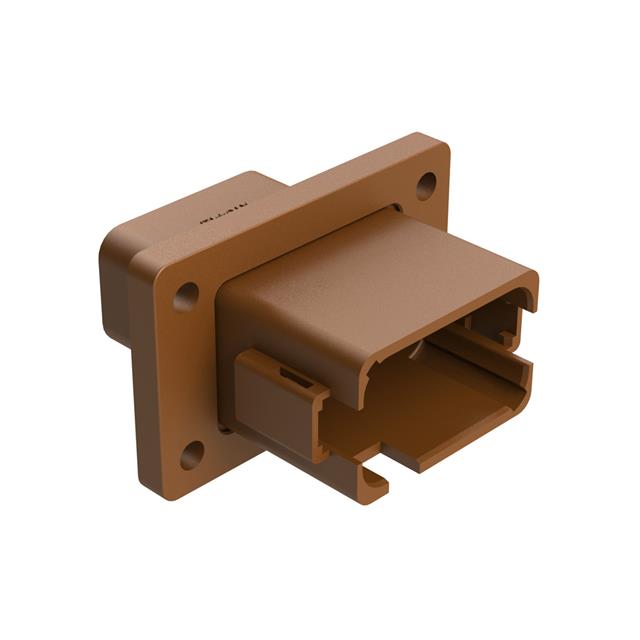

McGill Microwave Systems AT04-12PD-BL04	Contacts Not Included	125 °C	-55 °C	Latch Holder	Male Pin	Thermoplastic	Crimp	Mounting Flange Sealed	Brown	2	Panel Mount	Receptacle	12
