MSP Series

Catalog

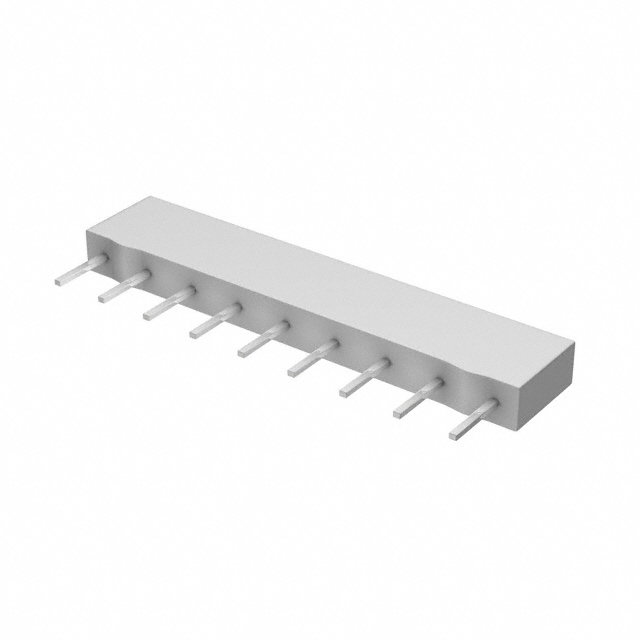

RESISTOR NETWORKS & ARRAYS 20KOHMS 10PIN 2% LOW M-SIP

Part	Size / Dimension Width	Size / Dimension Length	Number of Pins	Power Per Element	Number of Resistors	Circuit Type	Resistor Ratio Drift	Mounting Type	Package Name	Height - Seated (Max)	Resistance	Package / Case	Tolerance	Operating Temperature (Max)	Operating Temperature (Min)	Temperature Coefficient	Number of Terminations	Composition	Power (Watts)
Vishay Dale MSP10A0120K0GEJ	0.09 in	0.99 in	10	200 mW	9	Bussed	50 ppm/°C	Through Hole	10-SIP	0.195 in	20 kOhm	10-SIP	2 %	125 °C	-55 °C	100 ppm/°C
Vishay Dale MSP08A01150RGEJ	0.09 in	0.79 in	8	200 mW	7	Bussed	50 ppm/°C	Through Hole	8-SIP	0.195 in	150 Ohm	8-SIP	2 %	125 °C	-55 °C	100 ppm/°C
Vishay Dale MSP08A031K00GEJ	0.09 in	0.79 in	8	300 mW	4	Isolated	50 ppm/°C	Through Hole	8-SIP	0.195 in	1 kOhm	8-SIP	2 %	125 °C	-55 °C	100 ppm/°C
Vishay Dale MSP06A0110K0GEJ	0.09 in	0.59 in	6 pins	200 mW	5	Bussed	50 ppm/°C	Through Hole	6-SIP	0.195 in	10 kOhm	6-SIP	2 %	125 °C	-55 °C	100 ppm/°C
Vishay Dale MSP3BR7150FS14E3	0.063 in	0.12 in							6028	0.025 in	715 mOhms	6028 J-Lead	1 %	275 °C	-55 °C	100 ppm/°C	2	Wirewound	2.5 W
Vishay Dale MSP08A0318K0GEJ	0.09 in	0.79 in	8	300 mW	4	Isolated	50 ppm/°C	Through Hole	8-SIP	0.195 in	18 kOhm	8-SIP	2 %	125 °C	-55 °C	100 ppm/°C
Vishay Dale MSP10A01270RGEJ	0.09 in	0.99 in	10	200 mW	9	Bussed	50 ppm/°C	Through Hole	10-SIP	0.195 in	270 Ohm	10-SIP	2 %	125 °C	-55 °C	100 ppm/°C
Vishay Dale MSP08A0322K0GEJ	0.09 in	0.79 in	8	300 mW	4	Isolated	50 ppm/°C	Through Hole	8-SIP	0.195 in	22 kOhm	8-SIP	2 %	125 °C	-55 °C	100 ppm/°C
Vishay Dale MSP2B10000JS14E3
Vishay Dale MSP08A0310K0GEJ	0.09 in	0.79 in	8	300 mW	4	Isolated	50 ppm/°C	Through Hole	8-SIP	0.195 in	10 kOhm	8-SIP	2 %	125 °C	-55 °C	100 ppm/°C
