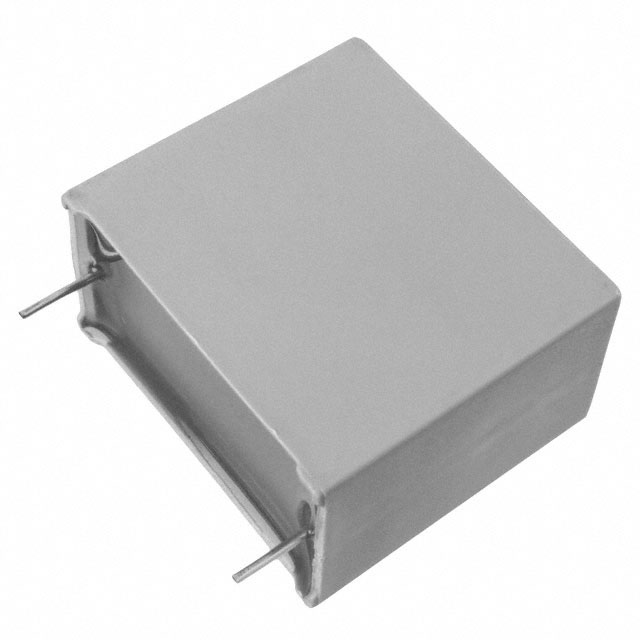

MKT1822 Series

Catalog

MKT 1NF 5% 400VDC PITCH 10MM / LOOSE, STRAIGHT LEAD 6 MM

Part	Termination	Mounting Type	Lead Spacing	Tolerance	Capacitance	Voltage Rating - AC	Package / Case	Voltage Rating - DC	Applications	Height - Seated (Max)	Dielectric Material	Size / Dimension Width	Size / Dimension Length	Operating Temperature (Min)	Operating Temperature (Max)
Vishay Dale MKT1822210404	PC Pins	Through Hole	0.394 in	5 %	1000 pF	200 Vpk	Radial	400 V	General Purpose	0.354 in	Metallized Polyester	0.157 in	0.512 in	-55 °C	100 °C
Vishay Dale MKT1822422254	PC Pins	Through Hole	0.591 in	5 %	0.22 µF	160 V	Radial	250 VDC	General Purpose	0.413 in	Metallized Polyester	0.217 in	0.709 in	-55 °C	100 °C
Vishay Dale MKT1822422105	PC Pins	Through Hole	1.083 in	10 %	0.22 µF	220 V	Radial	1 kV	General Purpose	0.925 in	Metallized Polyester	0.531 in	1.24 in	-55 °C	100 °C
Vishay Dale MKT1822410255	PC Pins	Through Hole	0.591 in	10 %	0.1 µF	160 V	Radial	250 VDC	General Purpose	0.413 in	Metallized Polyester	0.217 in	0.709 in	-55 °C	100 °C
Vishay Dale MKT1822410406	PC Pins	Through Hole	0.591 in	20 %	0.1 µF	200 Vpk	Radial	400 V	General Purpose	0.413 in	Metallized Polyester	0.217 in	0.709 in	-55 °C	100 °C
Vishay Dale MKT1822410405	PC Pins	Through Hole	0.591 in	10 %	0.1 µF	200 Vpk	Radial	400 V	General Purpose	0.413 in	Metallized Polyester	0.217 in	0.709 in	-55 °C	100 °C
Vishay Dale MKT1822547014	PC Pins	Through Hole	1.083 in	5 %	4.7 µF	63 V	Radial	100 V	General Purpose	0.807 in	Metallized Polyester	0.453 in	1.24 in	-55 °C	100 °C
Vishay Dale MKT1822210406	PC Pins	Through Hole	0.394 in	20 %	1000 pF	200 Vpk	Radial	400 V	General Purpose	0.354 in	Metallized Polyester	0.157 in	0.512 in	-55 °C	100 °C
Vishay Dale MKT1822310635	PC Pins	Through Hole	0.394 in	10 %	10000 pF	220 V	Radial	630 V	General Purpose	0.354 in	Metallized Polyester	0.157 in	0.512 in	-55 °C	100 °C
Vishay Dale MKT1822410106	PC Pins	Through Hole	0.886 in	20 %	0.1 µF	220 V	Radial	1 kV	General Purpose	0.728 in	Metallized Polyester	0.413 in	1.043 in	-55 °C	100 °C
