0FHM0002ZXJA Series

HOLDER, MINI INLINE, RED/ORANGE WIRE

Catalog

HOLDER, MINI INLINE, RED/ORANGE WIRE

Part	Fuse Width	Fuse Length	For Use With/Related Products	Mounting Type	Current Rating	Voltage	Fuseholder Type	Fuse Type	Number of Circuits	Termination Style
LITTELFUSE 0FHM0002ZXJA	0.152 in	0.433 in	Miniature (ATM)	Free Hanging (In-Line)	20 A	32 VDC	Holder	Blade	1	Wire Leads

Catalog

HOLDER, MINI INLINE, RED/ORANGE WIRE

Description

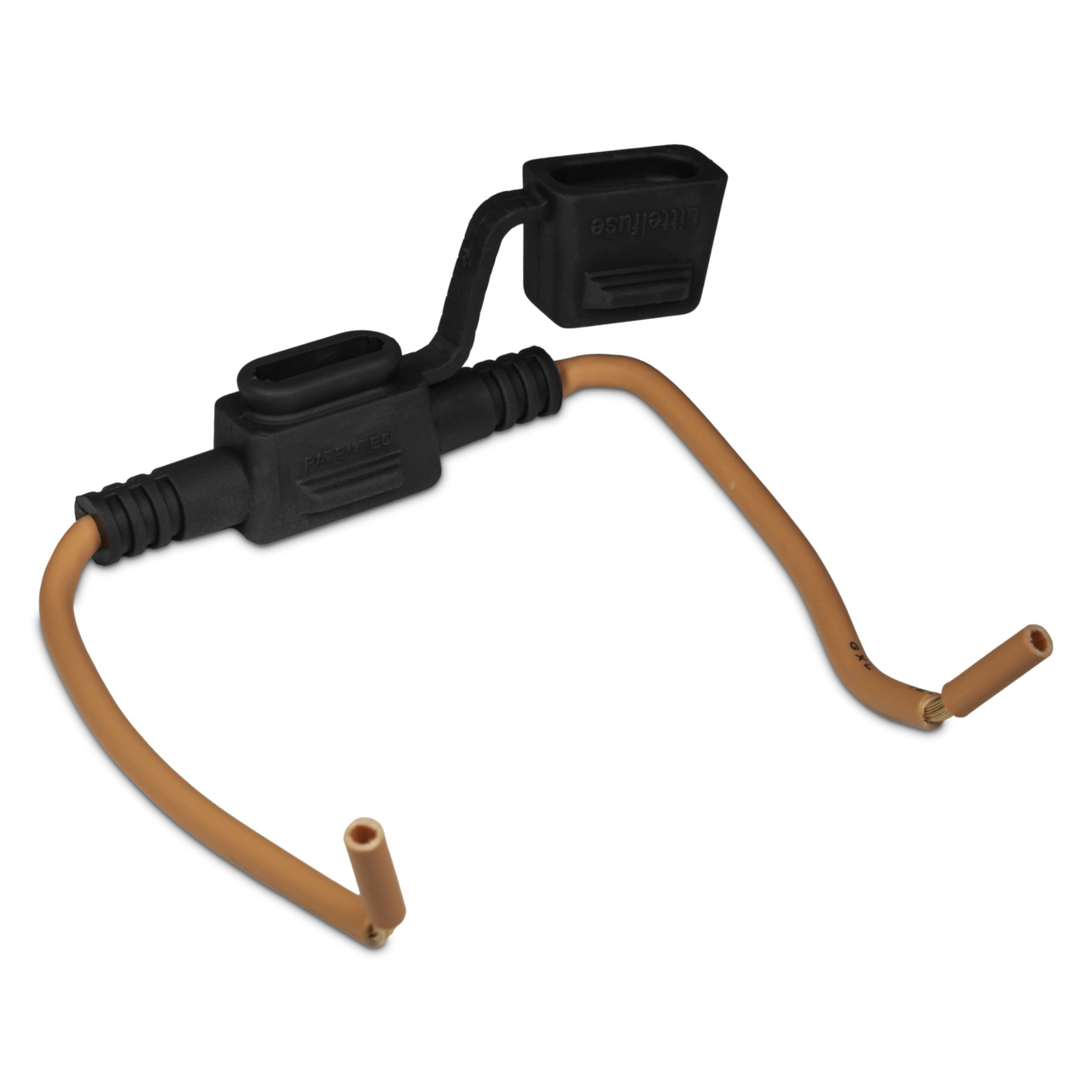

The MINI® FHM Series 58V Heavy-Duty In-Line Waterproof Blade Fuse Holder is ideal for adding accessory and remote circuit protection in automotive and marine applications. It features a built-in cover that connects with the fuse holder body to form a sealed enclosure. The protective enclosure meets IP67 dustproof and waterproof standards. This model of the MINI® FHM Series fuse holder (0FHM0002ZXJA) features a black TPV body and cover and 12 AWG GXL wire leads for heavy-duty applications. The lead wires, one with red insulation and one with orange insulation, are 3.7" long and have one 0.47" (12mm) end strip and one 0.24" (6mm) end strip. The UL 94 V-0-rated fuse holder accepts up to 30-amp MINI® blade fuses (sold separately).
