SLV6A Series

Catalog

LED RGB 6PLCC SMD

Part	Millicandela Rating Colors	Millicandela Rating (Blue)	Millicandela Rating (Green)	Millicandela Rating (Red)	Lens Diameter	Current - Test (Green)	Current - Test Colors	Current - Test (Red)	Current - Test (Blue)	Size / Dimension Width	Size / Dimension Length	Color	Lens Style	Package / Case	Package Name	Height (Max)	Mounting Type	Wavelength - Dominant (Red)	Wavelength - Dominant Color	Wavelength - Dominant (Green)	Wavelength - Dominant (Blue)	Configuration	Voltage - Forward (Vf) (Typ) (Blue)	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Voltage - Forward (Vf) (Typ) (Red)

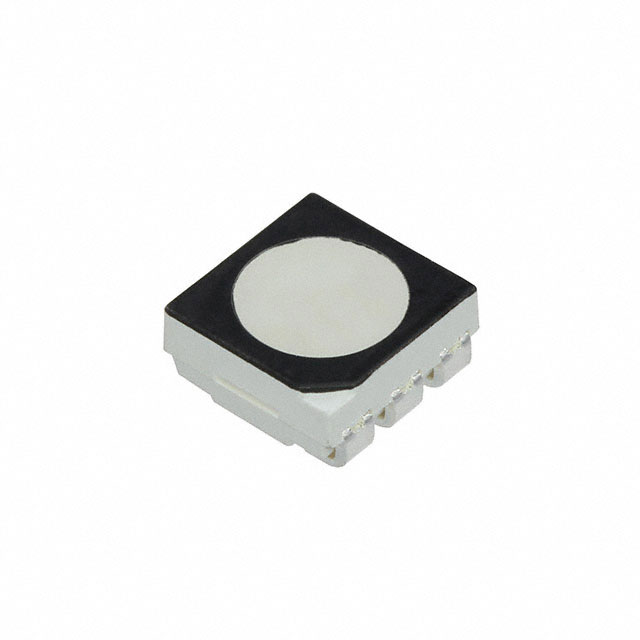

CreeLED, Inc. SLV6A-FKB-CKNPRGJBB7A363	Blue Green Red	420 mcd	1680 mcd	840 mcd	4.2 mm	20 mA	Blue Green Red	20 mA	20 mA	5.3 mm	5.5 mm	Blue (RGB) Green Red	Flat Top Round	6-SMD J-Lead	6-PLCC	2.6 mm	Surface Mount	622 nm	Blue Green Red	530 nm	470 nm	Independent	3.2 V	Blue Green Red	3.2 V	2 V
CreeLED, Inc. SLV6A-FKB-CK1P1G1BB7R3R3	Blue Green Red	420 mcd	1680 mcd	840 mcd	4.2 mm	20 mA	Blue Green Red	20 mA	20 mA	5.3 mm	5.5 mm	Blue (RGB) Green Red	Flat Top Round	6-SMD J-Lead	6-PLCC	2.6 mm	Surface Mount	622 nm	Blue Green Red	530 nm	470 nm	Independent	3.2 V	Blue Green Red	3.2 V	2 V
