V31S-GM Series
Manufacturer: Pepperl+Fuchs, Inc.
Beta
⌘K

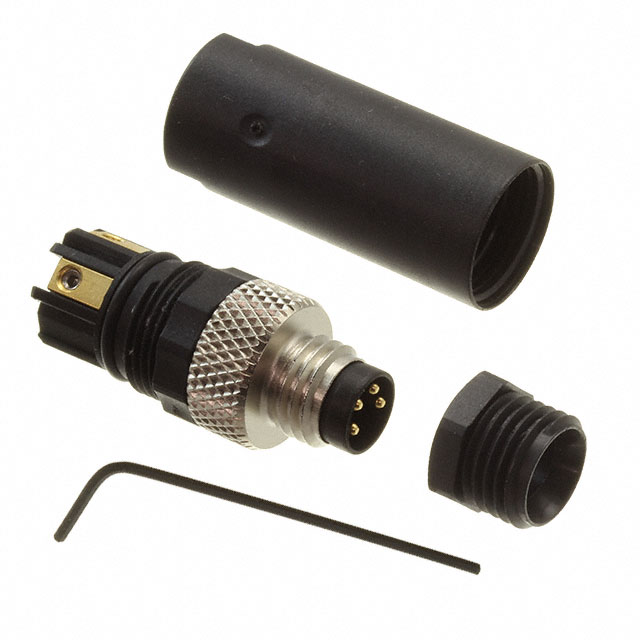

SENSOR CONNECTOR, M8, PLUG, 4 CONTACTS, SCREW PIN, STRAIGHT CABLE MOUNT
| Part | Applications | Features | Termination | Primary Material | Shielding | Shell Material | Contact Finish - Mating | Color | Ingress Protection Description | Ingress Protection IP Rating | Connector Type | Shell Size - Insert | Cable Opening (Min) | Cable Opening (Max) | Fastening Type | Contact Material | Number of Positions | Backshell Material, Plating | Shell Finish | Current Rating | Material Flammability Rating | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating | Voltage Rating (Type) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pepperl+Fuchs, Inc. | Industrial Automation | Backshell | Screw | Metal | Unshielded | Copper Zinc | Gold | Black Silver | Dust Tight Waterproof | IP67 | Male Pins Plug | M8-4 | 0.138 in | 0.197 in | Threaded | Copper Zinc | 4 | Polybutylene Terephthalate (PBT) | Nickel | 4 A | UL94 V-0 | Free Hanging (In-Line) | -40 °C | 85 °C | 70 VDC | |
 Pepperl+Fuchs, Inc. | Industrial Automation | Backshell | IDC | Metal | Unshielded | Brass | Gold | Black Silver | Dust Tight Water Resistant Waterproof | IP65 IP67 | Male Pins Plug | M8-4 | 0.098 in | 0.197 in | Threaded | Copper Tin | 4 | Nylon 6 Polyamide (PA6) | Nickel | 4 A | Free Hanging (In-Line) | -25 °C | 80 °C | 30 V | AC DC |
